Fiber optic cabling is the backbone of modern network infrastructure, and choosing the right cable construction is just as important as choosing the right fiber type. One of the most persistent questions I get from customers — from enterprise IT managers to data center architects — is simple: do I need armored cable, or will standard non-armored fiber do the job? The answer depends on environment, pathway, risk tolerance, and budget. Let me walk you through the decision the way I work through it in the field.

Understanding the Constructions

Non-Armored Fiber

Standard non-armored fiber cables consist of optical fiber elements — buffered or ribbonized — surrounded by strength members (typically aramid yarn or fiberglass rods) and an outer jacket. They are lightweight, flexible, and easy to terminate. For indoor structured cabling, ANSI/TIA-568.3-D governs the optical-fiber cabling components and performance requirements — including multimode categories OM3, OM4, and OM5 (all laser-optimized 50/125 µm), as well as singlemode OS1 and OS2. These cables work beautifully in controlled environments: inside conduit, in cable trays with proper support, in riser pathways, and in data center horizontal or backbone runs where physical threats are minimal.

Non-armored cables also carry NEC/NFPA 70 jacket ratings relevant to the space. Plenum-rated (CMP) cables are required in air-handling spaces, while riser-rated (CMR) cables serve vertical runs between floors — both as defined under NEC Chapter 3 wiring methods. ANSI/TIA-569 further governs the pathways and spaces where these cables are deployed, including minimum bend radius requirements and fill ratios that protect non-armored cable from the stresses of installation.

Armored Fiber

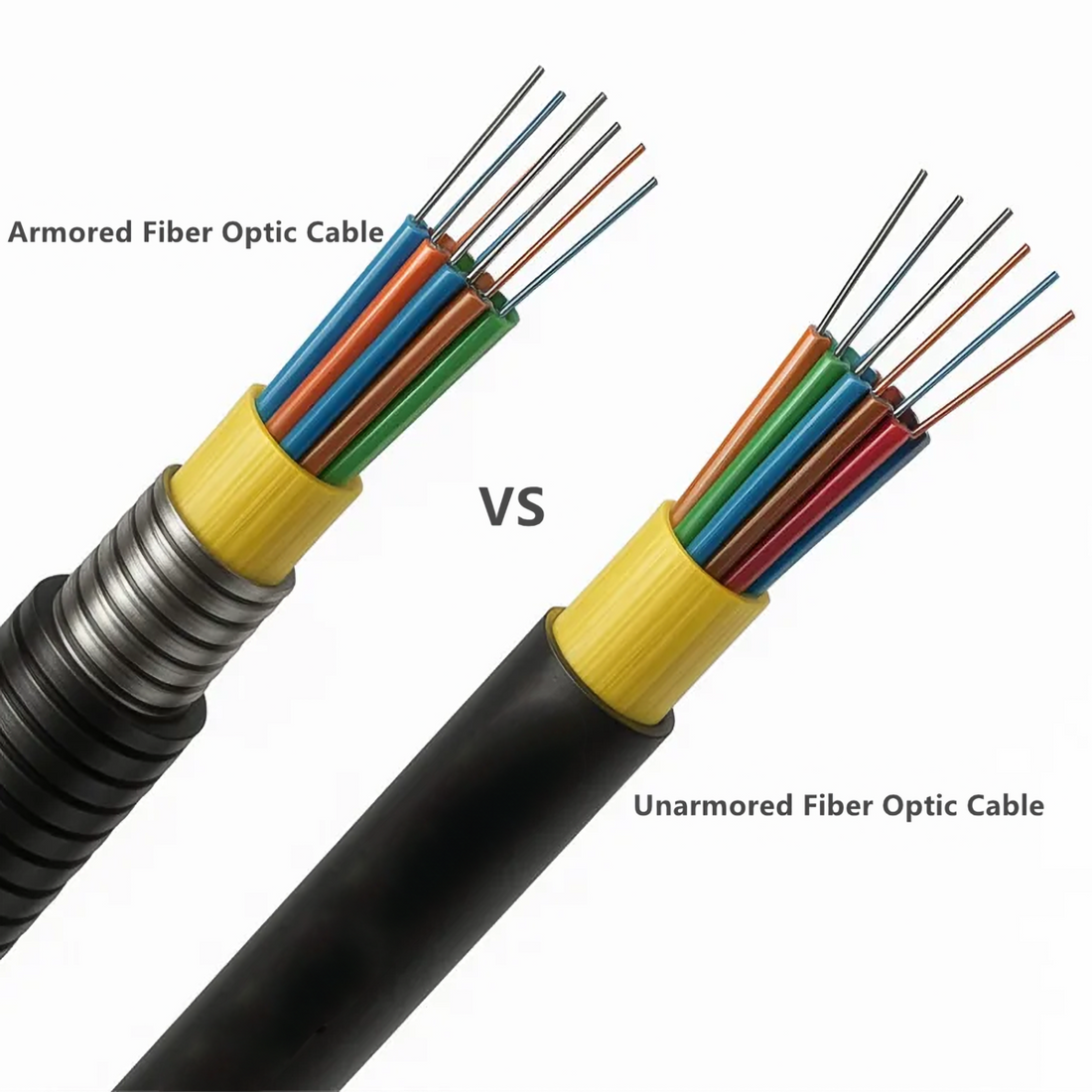

Armored fiber adds a mechanical protection layer — typically interlocking aluminum or steel armor, or sometimes a corrugated steel tape — between the inner cable core and the outer jacket. This dramatically increases crush resistance, rodent resistance, and protection against accidental damage during and after installation. The tradeoff is increased weight, reduced flexibility, larger bend radius requirements, and higher cost per foot.

It is worth noting that metallic armor introduces grounding considerations. ANSI/TIA-607 governs bonding and grounding in telecommunications systems, including requirements for the telecommunications main grounding busbar (TMGB) and telecommunications grounding busbars (TGBs). Armored cable with a conductive shield or armor must be properly bonded at each end to prevent ground loops or shock hazards — a step that non-armored fiber simply does not require.

Where Armored Fiber Belongs

Direct-Buried and Outside Plant (OSP)

This is the most clear-cut use case. Any fiber run that goes directly into the earth — without the protection of conduit — needs armored construction. Soil movement, ground settling, digging activity, and moisture intrusion make unprotected cable a liability. Gel-filled or dry-blocked armored OSP cables are engineered for these conditions. Singlemode fiber used in long-haul OSP runs typically conforms to ITU-T G.652 or G.657 fiber specifications, providing the attenuation and bend performance needed for extended runs.

Industrial and Manufacturing Environments

Factory floors, warehouse aisles, utility spaces, and heavy-industrial settings expose cable to forklift traffic, dropped tools, chemical exposure, and extreme temperatures. In these environments, armored construction provides the margin of protection that keeps the network running through the punishment of daily operations. Even when cable is routed in conduit in these settings, armored fiber adds a second layer of protection against impact and crush loads that non-armored cable simply cannot handle reliably.

Exposed Indoor Runs Without Conduit

Sometimes cabling must run exposed — along walls, across ceilings, or through mechanical spaces — where full conduit protection is not practical. ANSI/TIA-569 provides guidance on pathway methods, but in environments where mechanical damage risk is elevated, armored cable bridges the gap between "in conduit" and "fully exposed." Interlocking armored (IA) fiber is commonly used for indoor riser runs in older buildings or industrial facilities where retrofitting conduit is cost-prohibitive.

Campus Backbone Between Buildings

Inter-building runs — even when in conduit — benefit from armored construction when the conduit path is shared with other utilities, subject to ground movement, or difficult to access for repair. The cost of a fiber cut on a campus backbone in terms of downtime almost always justifies the incremental cost of armored cable.

Where Non-Armored Fiber Belongs

Data Centers

Inside a well-designed data center, non-armored fiber is almost always the right choice. Structured cabling deployed under ANSI/TIA-942 data center infrastructure guidelines operates in controlled, access-restricted environments with organized cable management, raised floors or overhead trays, and minimal physical threat. The flexibility of non-armored cable makes it far easier to manage high-density LC, SC, and MPO/MTP patching in structured cabling zones. OM4 and OM5 multimode cables — specified under ANSI/TIA-568.3-D — are the workhorses of modern data center horizontal and backbone cabling, and their small diameter and light weight are genuine operational advantages in high-density spaces.

Controlled Indoor Enterprise Environments

Office buildings, healthcare facilities, education campuses, and government buildings with properly designed pathways per ANSI/TIA-569 are ideal for non-armored fiber. In these environments, cable is protected by the pathway itself — conduit, cable tray, J-hooks with appropriate spacing — and armor adds cost and installation complexity with no meaningful benefit. Proper labeling per ANSI/TIA-606 and pathway discipline are the right investments here, not armor.

A Practical Decision Framework

Don't Overlook the Total Installed Cost

Armored cable costs more per foot, but that is only part of the picture. Termination of armored cable requires additional tools and time. Grounding and bonding per ANSI/TIA-607 adds labor and material cost. Larger conduit may be required to accommodate the increased outer diameter. In environments where armor is genuinely needed, these costs are justified — even modest. In environments where armor is unnecessary, they represent pure overhead. The RCDD credential exists in part to help project teams make these calls correctly at design time, before conduit is in the ground and cable is on the reel.

Final Thoughts

Armored and non-armored fiber are not competing products — they are complementary tools for different threat environments. Specify armored where the physical world is hostile: buried runs, industrial floors, exposed pathways. Specify non-armored where the environment is controlled and the pathway does the work. Get the design right at the front end, and both cable types will deliver the performance that ANSI/TIA-568.3-D was written to guarantee.
