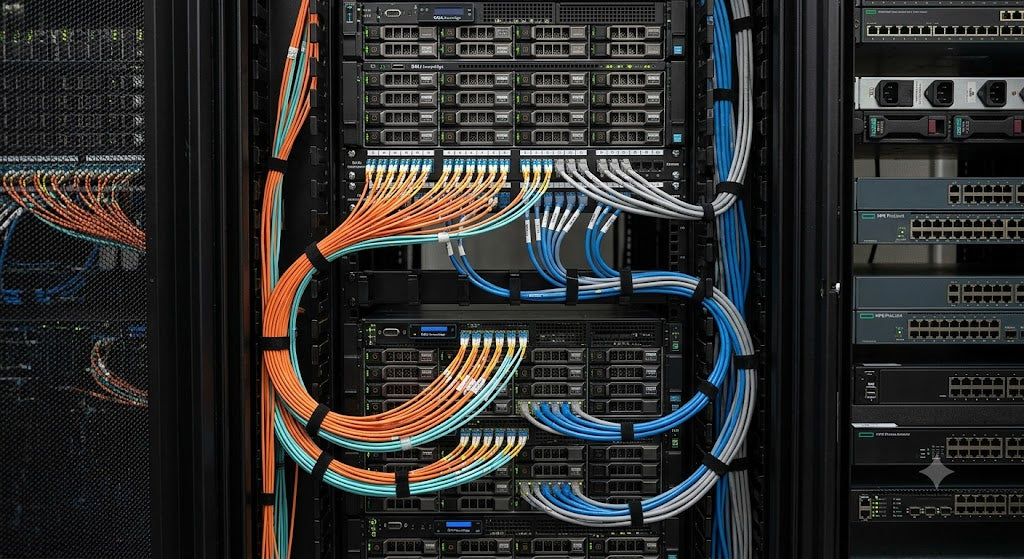

Bend Radius and Fill: Cable Trays That Survive MACs
Why MACs Punish Tray Installations That Cut Corners
Every data center and enterprise network eventually faces a wave of moves, adds, and changes—MACs. Rack consolidations, topology upgrades, new high-density fiber runs, the migration from Cat 6 to Cat 6A: all of them put hands inside cable trays that were designed, installed, and then largely forgotten. When those trays were undersized, overfilled, or bent too aggressively, the first MAC reveals the damage. Links fail, fiber cracks, shielded twisted-pair loses its geometry, and the troubleshooting clock starts running.
The good news is that the standards framework is clear. ANSI/TIA-569 governs pathways and spaces—including cable trays—and when you follow its guidance alongside the National Electrical Code (NFPA 70), you build infrastructure that tolerates real-world punishment. Here is what every designer and installer should keep in mind before the next set of trays goes overhead.
Understanding Bend Radius Requirements
Bend radius is not a single number that applies to all cables. It is a per-category, per-media specification, and confusing fiber and copper requirements is one of the most common—and most expensive—mistakes made during tray design.
Copper: Balanced Twisted-Pair
ANSI/TIA-568.2-D governs balanced twisted-pair cabling from Cat 5e through Cat 8. Each category carries its own minimum bend-radius requirements, and those requirements increase with cable diameter and shielding complexity. Cat 6A, in particular, introduced larger-diameter designs—some augmented cables run substantially thicker than their Cat 6 predecessors—which means the minimum installed bend radius grows accordingly. Shielded variants (F/UTP and S/FTP) are especially sensitive: kinking a shielded cable can interrupt the foil or braid continuity, creating ground loops and degrading noise rejection at exactly the frequencies that 10GBASE-T depends on.
ANSI/TIA-569 ties directly into these requirements by specifying how trays, conduit, and pathway fittings must accommodate the cables they carry. When a tray horizontal bend fitting is specified, it must preserve the minimum bend radius called out for the highest-category cable running through it.
Optical Fiber: A Different Physics Problem
ANSI/TIA-568.3-D governs optical-fiber cabling and components, covering multimode grades OM3, OM4, and OM5 (all laser-optimized 50/125 µm) as well as singlemode OS1 and OS2. Fiber bend radius is governed by macrobend loss: exceed the minimum radius and light leaks out of the core, attenuating the link and potentially pushing it below the loss budget long before a connector is even touched.
Standard tight-buffer and loose-tube cables each carry manufacturer-specified installation and long-term (loaded) bend radii. Bend-insensitive singlemode fiber conforming to ITU-T G.657 tolerates tighter bends than conventional G.652 designs, but "bend-insensitive" is not a license to ignore radius entirely. The gains are meaningful in enclosed pathways and patch-cord routing, not an excuse to design trays with fittings that would be tight for copper.
One critical field habit: fiber and copper should travel in separate trays or at minimum in separate compartments of a divided tray. Fiber bundled under the weight of Cat 6A runs in an overfilled tray is a failure waiting to happen.
Fill Capacity: The Number Nobody Wants to Do the Math On
ANSI/TIA-569 establishes fill-capacity guidelines for cable trays, and the NEC (NFPA 70, Chapter 3) imposes additional fill requirements where trays are used as a wiring method. Both frameworks exist because overfilled trays create several compounding problems:
- Thermal buildup: Dense cable bundles trap heat. ASHRAE TC 9.9 guidance makes clear that elevated ambient temperatures accelerate insulation aging and can push PoE-loaded copper bundles into unsafe thermal territory. IEEE 802.3bt Type 3 and Type 4 devices draw up to 60 W and 90 W at the PSE respectively—that power dissipates as heat along the cable, and fill directly governs how well that heat escapes.
- Mechanical stress on lower cables: Weight from overfill compresses cables at the bottom of the tray, distorting pair geometry in copper and inducing long-term macrobend stress in fiber.
- MAC difficulty: An overfilled tray makes it nearly impossible to pull a single cable without disturbing dozens of others, multiplying the risk of accidental damage with every future change.
A practical target is to commission trays with planned headroom—designing to a fraction of maximum fill on day one is not waste, it is capacity planning. ANSI/TIA-942 data-center infrastructure guidance reinforces the value of structured, scalable pathways as a component of overall site reliability, particularly in environments targeting Tier III concurrent maintainability or above.
Tray Selection and Fitting Choices That Hold Up Over Time
Ladder vs. Solid-Bottom vs. Wire Mesh
Ladder tray offers the best thermal performance for high-fill copper runs and is the dominant choice in data-center above-ceiling and under-floor pathways. Solid-bottom tray provides more support for small-diameter fiber but reduces airflow; use it where physical protection outweighs thermal concerns. Wire mesh (basket) tray is popular in structured cabling applications for its flexibility and ease of MAC work, but bend fittings must be selected to maintain the required radius—improvised bends in the field are a chronic source of degraded fiber performance.
Horizontal and Vertical Fittings
Every horizontal bend, vertical rise, and tee fitting is a radius event. Specify fittings by the cable category they must accommodate, not by the tray width alone. Wider fittings are almost always the right answer when in doubt; the incremental cost is trivial compared to a fiber OTDR trace that reveals induced loss at every tray bend on a newly commissioned run.
Grounding and Bonding
Metallic cable trays used with shielded cabling are part of the grounding system. ANSI/TIA-607 establishes bonding and grounding requirements including the Telecommunications Grounding Busbar (TMGB) and Telecommunications Grounding Busbar (TGB) hierarchy. Shielded F/UTP and S/FTP cable shields must terminate to a continuous, low-impedance ground path—a tray system with intermittent bonding jumpers defeats the shield's purpose. Verify continuity across all tray joints and fittings at commissioning, and re-verify after major MACs.
Labeling: The MAC's Best Friend
ANSI/TIA-606 administration and labeling requirements exist precisely because MACs happen. Every cable entering a tray should be labeled at both ends and, for long runs, at intermediate access points. Tray segments themselves should carry zone identifiers. Technicians working at 2 a.m. during a maintenance window should be able to trace any cable without guessing. A labeling scheme that meets TIA-606 and is documented in a current as-built set is worth more during a MAC than any amount of slack cable.
Build It to Survive Change
The trays you install today will carry cables you have not specified yet. Cat 6A will give way to higher categories; OM4 plants will be upgraded to OM5 for SWDM or parallel-optic applications; new PoE classes will add thermal load. Design bend radii and fill capacity for where the network is going, not where it is. The standards—ANSI/TIA-568.2-D for copper, ANSI/TIA-568.3-D for fiber, ANSI/TIA-569 for the pathways themselves, and NFPA 70 for code compliance—give you a durable framework. Follow them, document everything to TIA-606, and your infrastructure will survive MACs instead of being destroyed by them.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
