Bonding & Grounding for Structured Cabling: ANSI/TIA-607

Why Bonding and Grounding Matter in Structured Cabling

When network infrastructure professionals talk about structured cabling, the conversation naturally gravitates toward bandwidth, cable categories, and connector performance. But there is a foundational layer beneath all of that — one that protects equipment, safeguards personnel, and ensures signal integrity across an entire enterprise. That layer is proper bonding and grounding, governed in the United States by ANSI/TIA-607, the telecommunications bonding and grounding standard for commercial buildings.

As an RCDD, I have walked through countless telecommunications rooms, data centers, and distribution spaces where grounding was treated as an afterthought — a single bare copper wire connected loosely to a water pipe. That approach is not just non-compliant; it is dangerous and costly. Getting bonding and grounding right from the start protects your entire investment in structured cabling infrastructure.

What ANSI/TIA-607 Actually Covers

ANSI/TIA-607 establishes the requirements for a telecommunications bonding and grounding infrastructure that is specifically designed to support the structured cabling systems defined in related TIA standards. It addresses the pathways, conductors, hardware, and interconnections that collectively form a low-impedance bonding network throughout a commercial building.

The standard defines several key components that every designer and installer should know by name and function:

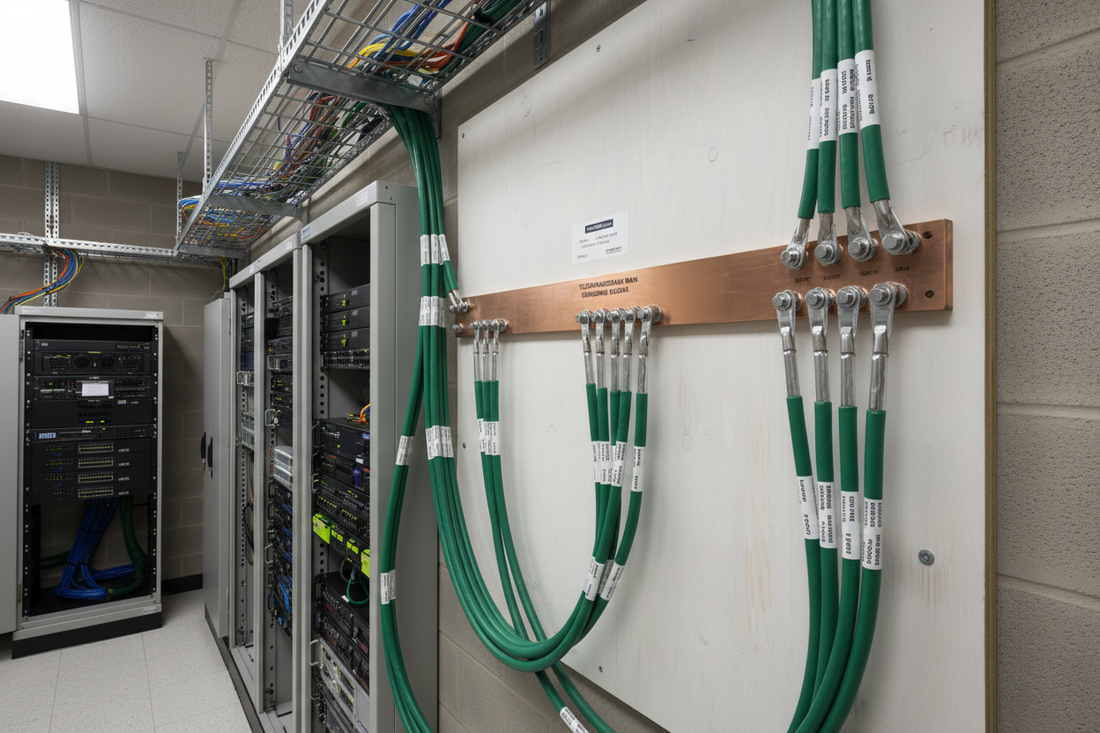

• Telecommunications Main Grounding Busbar (TMGB): The primary bonding point for the telecommunications infrastructure, typically located in or near the main telecommunications room. It connects directly to the building's main electrical grounding system.
• Telecommunications Grounding Busbar (TGB): A secondary busbar located in each telecommunications room, equipment room, or entrance facility. Multiple TGBs connect back to the TMGB via the telecommunications bonding backbone.
• Telecommunications Bonding Backbone (TBB): The conductor that interconnects all TGBs to the TMGB, forming a continuous bonding path throughout the building. ANSI/TIA-607 specifies conductor sizing requirements based on the length of the backbone run.
• Bonding Conductor for Telecommunications (BCT): The conductor used to bond individual telecommunications equipment, cable pathways, cable shields, and racks to the nearest TGB.

The standard also addresses the bonding of metallic cable pathway systems — including cable trays and conduit — which are covered from a physical installation perspective by ANSI/TIA-569. The two standards work hand in hand: TIA-569 defines where your pathways go; TIA-607 ensures those pathways are properly integrated into the bonding infrastructure.

Bonding vs. Grounding: A Critical Distinction

These two terms are often used interchangeably, but they mean different things and serve different purposes. Bonding is the practice of connecting multiple conductive elements together so they share the same electrical potential. Grounding connects that bonded system to the earth reference established by the building's electrical system. Both are required, and neither alone is sufficient.

In a telecommunications context, the goal of bonding is to eliminate potential differences between metallic components — patch panels, equipment racks, cable shields, raised-floor systems, and ladder rack — that could otherwise create ground loops or allow transient energy to travel through signal conductors. When those components are all bonded to a common reference, stray currents have a low-impedance path to follow that does not include your data cables or active electronics.

How TIA-607 Interacts with the Rest of Your Cabling System

Bonding and grounding requirements touch nearly every other element of your structured cabling design. Consider screened and shielded copper cabling: ANSI/TIA-568.2-D — the standard governing balanced twisted-pair copper cabling including categories 5e, 6, 6A, and 8 — includes performance specifications for shielded cable assemblies. For a shielded system to deliver its noise-rejection benefits rather than acting as an antenna, the shield must be properly terminated and bonded at both ends in accordance with TIA-607. An improperly grounded shield is frequently worse than no shield at all.

In optical fiber systems governed by ANSI/TIA-568.3-D, the fiber itself is non-conductive and inherently immune to electromagnetic interference. However, armored fiber cables often include metallic armor or strength members, and the cable assemblies travel through metallic pathways and enclosures that still require bonding per TIA-607. The fiber is immune; the infrastructure around it is not.

In data center environments, ANSI/TIA-942 references TIA-607 as part of its infrastructure requirements. Data centers present unique bonding challenges due to high equipment density, raised-floor systems, overhead cable management, and significant power loads — all of which must be integrated into a unified bonding system.

Labeling and Documentation: Don't Skip This Step

ANSI/TIA-607 requires that bonding conductors, busbars, and associated hardware be labeled. This aligns directly with ANSI/TIA-606, the administration standard for telecommunications infrastructure, which establishes a labeling and record-keeping framework for all structured cabling elements. Every TGB, TMGB, and bonding conductor should be labeled, documented, and included in your as-built records.

This matters more than many installers realize. When a technician arrives years later to troubleshoot an intermittent noise problem or add new equipment, properly labeled and documented bonding infrastructure can reduce diagnostic time dramatically. Unlabeled, undocumented grounding systems are among the most common sources of long-term headaches in network infrastructure management.

Common Field Deficiencies to Avoid

Based on field experience, these are the bonding and grounding errors I see most frequently on commercial structured cabling projects:

• Using undersized bonding conductors — TIA-607 specifies minimum conductor sizes; do not substitute smaller wire because it is easier to pull.
• Daisy-chaining TGBs instead of running individual TBB conductors back to the TMGB — the standard requires a dedicated backbone, not a series connection.
• Connecting to plumbing, structural steel, or other building grounds that are not part of the designated telecommunications bonding infrastructure.
• Failing to bond metallic cable pathway systems, including ladder rack and cable tray, at regular intervals and at every junction point.
• Installing shielded copper cabling without properly bonding the shield terminations at patch panels and equipment, negating the shielding benefit entirely.
• Omitting bonding documentation and labeling from the project closeout package.

Designing It Right from the Start

The most cost-effective time to implement a compliant ANSI/TIA-607 bonding and grounding infrastructure is during the initial design and installation phase. Retrofitting a bonding system into an existing facility — running TBB conductors through finished walls, adding busbars in occupied telecommunications rooms, and re-terminating shielded cable infrastructure — is expensive and disruptive.

If you are working on a new construction or major renovation project, the bonding infrastructure should be included in your structured cabling design documents alongside the horizontal and backbone cabling topology, pathway routing per TIA-569, and space planning. It is not a separate scope item; it is an integral part of the telecommunications infrastructure.

At Heather Technologies, we work with our customers to source the busbars, bonding conductors, listed connectors, and associated hardware needed to build a fully compliant TIA-607 bonding infrastructure. Getting the foundation right means your structured cabling system performs as designed — today, and for the lifecycle of the building.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
