Cable Management & Pathway Fill: Designing for Growth

Why Pathway Fill Is a Design Decision, Not an Afterthought

Every structured cabling project begins with a bill of materials and a set of drawings, but the decisions that most often haunt a facility years later are the ones made about pathway capacity. Conduits packed to their limits on day one, cable trays that look tidy at cutover but become impassable after the first technology refresh, and ladder racks where bend radii are an afterthought—these are the real costs of ignoring pathway fill during the design phase. As an RCDD, I work with end users, integrators, and contractors every day, and the conversation about growth capacity almost always comes too late.

This article walks through the standards-based principles that should govern cable management and pathway fill decisions, with an emphasis on designing headroom into your infrastructure from the start.

The Governing Standard: ANSI/TIA-569

ANSI/TIA-569 (Pathways and Spaces for Telecommunications) is the primary reference for everything from conduit sizing and cable tray selection to equipment room layout and telecommunications room (TR) dimensions. If you are designing or specifying a structured cabling pathway system in North America, this standard is non-negotiable reading. It establishes minimum requirements for conduit fill, bend radius, pull-point spacing, and the physical environments that house cabling infrastructure.

One of the most consequential principles in TIA-569 is the concept of pathway fill ratios. The standard recommends that conduits and raceways not be filled to capacity at installation, specifically to preserve room for future cable additions. This is not a soft suggestion—it is a design discipline. A pathway that is completely full on day one offers no path forward without added cost, disruption, and downtime.

Conduit Fill: Leave Room on Purpose

TIA-569 references conduit fill guidance that limits the cross-sectional area occupied by cables to a fraction of the conduit's interior cross-section. The exact percentage varies by the number of conductors and the conduit type, but the underlying intent is consistent: never design to 100% fill. A general practice aligned with TIA-569 principles is to target roughly 40% fill at initial installation for multi-cable conduits, preserving the remaining capacity for future pulls without requiring new conduit runs.

This matters especially as cable diameters have grown. Category 6A copper cabling, specified under ANSI/TIA-568.2-D for balanced twisted-pair copper infrastructure, has a notably larger outer diameter than Category 6 or Category 5e. When a designer substitutes Cat 6A for Cat 6 in an existing conduit design without recalculating fill, the results can make future cable additions impossible and can compromise the installation's compliance with bend-radius requirements.

Cable Tray and Ladder Rack: Accounting for Weight and Bend Radius

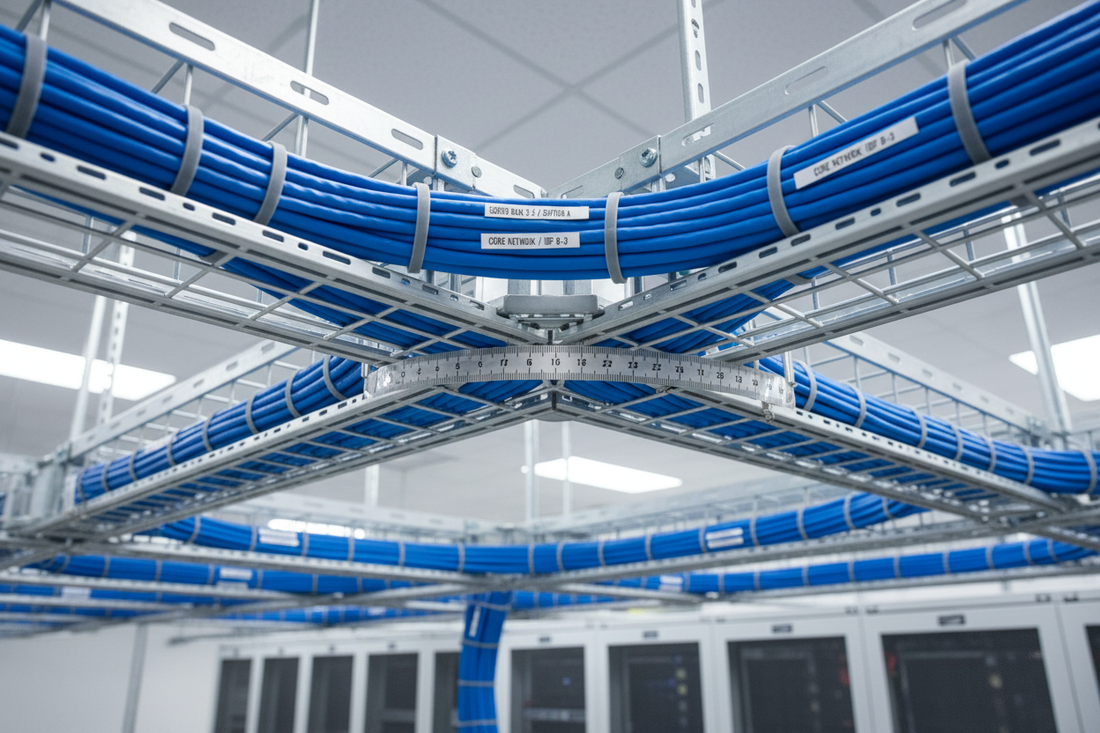

Open cable tray and ladder rack are the workhorses of horizontal and backbone pathway systems, particularly in data centers and large commercial facilities. TIA-569 addresses cable tray systems and establishes guidance on load capacity, fill depth, and the importance of maintaining manufacturer-specified bend radii at every transition point.

For copper cabling, ANSI/TIA-568.2-D specifies minimum bend radii for Category 6A and other balanced twisted-pair cables under installation tension and at rest. Violating these bend radii—especially at tray corners, vertical drops, and J-hook transitions—can degrade return loss and insertion loss performance, potentially pushing a link below the standard's channel requirements. In high-density environments, cable weight alone can cause cables at the bottom of an overfilled tray to exceed their minimum bend radius at support points.

For optical fiber pathways, ANSI/TIA-568.3-D governs the performance requirements for optical fiber cabling and components, covering OM1 through OM5 multimode fibers as well as OS1 and OS2 single-mode fibers. Fiber is far less forgiving of pathway abuse than copper. Exceeding the minimum bend radius of an optical fiber cable—whether multimode or single-mode—can introduce attenuation that is difficult to diagnose and may not appear immediately on an OTDR trace. Designing tray fill to prevent overcrowding is as much a fiber performance issue as it is a capacity issue.

Data Center Pathway Design: TIA-942 Considerations

In data center environments, pathway fill discipline becomes even more critical. ANSI/TIA-942 (Telecommunications Infrastructure Standard for Data Centers) establishes requirements and recommendations for raised-floor, overhead, and under-floor pathways, including separation of copper and fiber pathways, power and data pathway segregation, and structured approaches to cable management that support scalability.

TIA-942 reinforces the principle that pathways should be sized for anticipated growth, not just current demand. In a data center context, this means thinking through future cabinet density increases, migration from 10GbE to 25GbE or higher speeds, and the cabling plant changes those migrations require. A tray system that cannot accept additional trunk cables without a full retrofit is a liability.

PoE and Thermal Management in Horizontal Pathways

Power over Ethernet has changed the thermal profile of horizontal cable bundles in ways that many earlier pathway designs did not anticipate. IEEE 802.3bt (Type 3 and Type 4 PoE) delivers substantially more power per port than the earlier 802.3af (Type 1) and 802.3at (Type 2) specifications. When multiple PoE cables are bundled tightly in a conduit or stacked deeply in a tray, the heat generated by current flow in the copper conductors can accumulate, raising the temperature of the cable bundle above the rated operating environment for the cable's insulation and affecting insertion loss performance.

ANSI/TIA-568.2-D addresses this concern by providing guidance on bundle derating—reducing the number of active PoE pairs or cables in a bundle to keep temperatures within acceptable limits. The practical implication for pathway design is straightforward: denser fill equals higher thermal risk for PoE-heavy deployments. Designing pathways with lower initial fill ratios is not just a capacity strategy; for PoE applications it is a thermal management strategy.

Labeling and Documentation: ANSI/TIA-606

No cable management design is complete without a robust administration plan. ANSI/TIA-606 (Administration Standard for Telecommunications Infrastructure) provides the framework for labeling cables, pathways, spaces, and termination hardware in a consistent, scalable manner. When pathways are well-documented from day one, adds, moves, and changes become far less disruptive. Technicians can identify available fill capacity, trace existing cables without toning every run, and plan new installations without guesswork.

Designing for Growth: Practical Recommendations

• Calculate fill at design time, not after the fact. Use actual cable outer diameters from manufacturer data sheets and apply TIA-569 fill guidance before finalizing conduit and tray sizes.
• Size up pathways proactively. The incremental cost difference between a 4-inch and a 6-inch conduit is small compared to the cost of adding a parallel conduit run after walls are closed.
• Separate copper and fiber pathways where feasible. TIA-942 recommends this in data centers; the practice reduces the risk of mechanical damage to fiber during copper cable pulls.
• Account for cable diameter increases when upgrading copper categories. Moving from Cat 6 to Cat 6A per ANSI/TIA-568.2-D requires reassessing fill in every shared pathway.
• Consider PoE bundle derating in horizontal pathway fill calculations for deployments using IEEE 802.3bt devices.
• Document everything to ANSI/TIA-606 standards so future installers understand what exists and where capacity remains.
• Plan access points. TIA-569 addresses pull-point spacing; honor those maximums so future pulls don't require damaging installed cables to add new ones.

The Bottom Line

Cable management and pathway fill are infrastructure decisions with a long tail. A pathway system designed generously at the outset costs modestly more today and saves substantially more tomorrow. At Heather Technologies, we work with our partners to specify and supply pathway systems, cable management hardware, and structured cabling components that meet TIA-569, TIA-568.2-D, TIA-568.3-D, and TIA-942 requirements—and that are sized for where your network is going, not just where it is today. If your next project needs a pathway fill review or a standards-based infrastructure assessment, our team is ready to help.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
