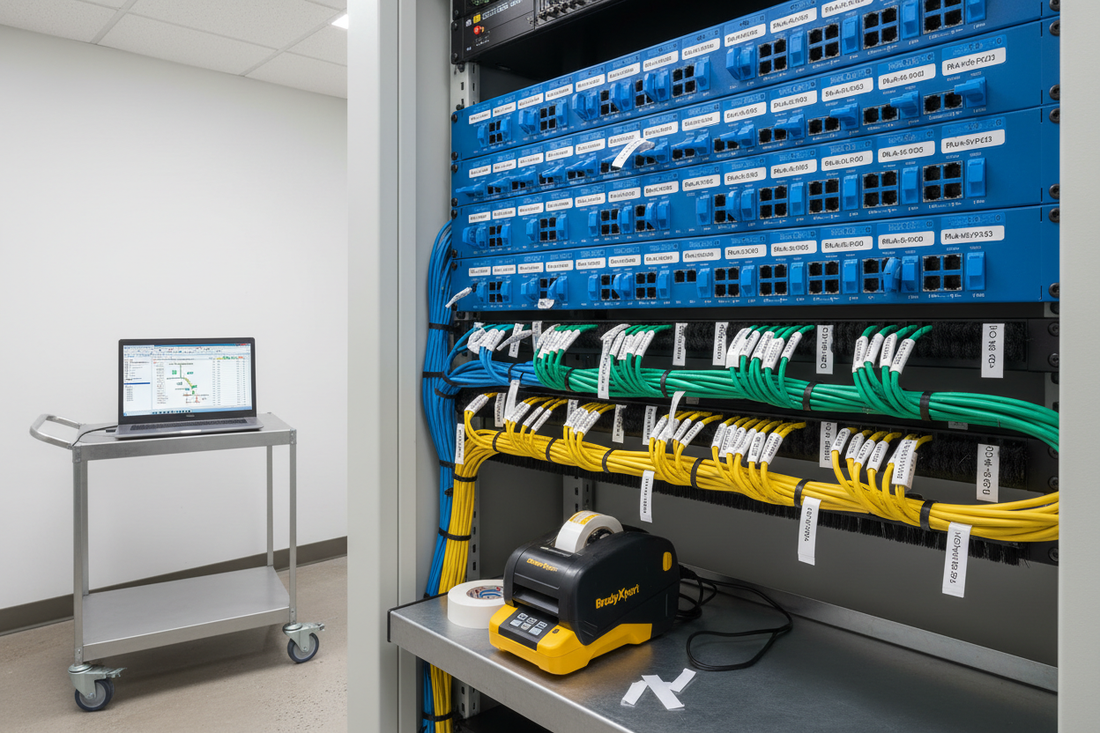

Cabling Administration and Labeling Done Right: ANSI/TIA-606

Why Cabling Administration Is the Foundation of a Maintainable Network

Most network outages don't start with failed hardware. They start with a technician pulling the wrong cable, a contractor patching into an undocumented port, or a move-add-change (MAC) that nobody recorded. In my experience working with enterprise and government network infrastructure, the single most consistent differentiator between a well-run cabling plant and a chaotic one isn't the brand of cable or the quality of the connectors — it's whether the site has implemented a disciplined administration and labeling program built on ANSI/TIA-606.

ANSI/TIA-606 is the telecommunications infrastructure administration standard. It defines the identifiers, records, and labeling conventions that allow owners, operators, and technicians to manage a structured cabling system throughout its entire lifecycle — from initial installation through repeated moves, additions, and changes over the decades a building may be in service. If your team is commissioning a new facility, refreshing an aging plant, or simply trying to get control of a mess inherited from a previous integrator, this standard deserves your full attention.

What ANSI/TIA-606 Actually Covers

The standard establishes a hierarchical framework of identifiers for every element in the cabling infrastructure. These identifiers are the building blocks of your records system. TIA-606 organizes them around several key classes of infrastructure components:

• Spaces – telecommunications rooms (TRs), equipment rooms (ERs), entrance facilities (EFs), and work areas
• Pathways – conduit, cable tray, and other routing infrastructure (which also align with ANSI/TIA-569 for physical design)
• Links and cables – horizontal and backbone runs, whether copper or fiber
• Termination hardware – patch panels, outlets, consolidation points, and splice enclosures
• Bonding and grounding conductors – which connect to the requirements of ANSI/TIA-607

Each of these elements receives a unique identifier. The standard specifies the format and structure of those identifiers so that records created by different technicians, at different times, remain consistent and machine-readable. This consistency is what makes a records database — whether a simple spreadsheet or a full-blown connectivity management platform — actually useful years down the road.

The Four Administration Classes

TIA-606 defines administration classes scaled to the complexity of the installation. Understanding which class applies to your project is essential before you design your labeling scheme:

• Class 1 – Single-building, single-floor installations. Straightforward flat identifier structures are appropriate.
• Class 2 – Single-building, multi-floor installations. Identifiers must incorporate floor or space designators.
• Class 3 – Multi-building campus environments. Building identifiers are layered into the scheme.
• Class 4 – Multi-campus or enterprise-wide environments where buildings span multiple sites.

Choosing the right class upfront prevents the painful — and expensive — situation of having to re-label an entire plant because the original scheme didn't account for growth. I've seen Class 1 schemes applied to buildings that were always intended to expand into a campus. The result is a labeling rework project that can cost more than the original installation labor.

Copper and Fiber: Different Components, Same Administrative Discipline

ANSI/TIA-606 applies to the entire cabling plant regardless of media type. Whether you're administering balanced twisted-pair copper cabling governed by ANSI/TIA-568.2-D — which covers Cat 5e, Cat 6, Cat 6A, and Cat 8 — or optical fiber cabling governed by ANSI/TIA-568.3-D — which covers OM1 through OM5 multimode and OS1/OS2 single-mode — the identifiers, records, and label requirements follow the same TIA-606 framework.

For fiber specifically, color coding at the fiber and jacket level is addressed by TIA-598-D, and those color conventions should be cross-referenced in your administration records. When a technician opens a splice enclosure, the TIA-598-D color scheme tells them which fiber they're touching; the TIA-606 identifier recorded on the enclosure label and in your database tells them what link that fiber serves and where it goes. Both layers of information are necessary — neither alone is sufficient.

Label Requirements: What Must Be Labeled and How

TIA-606 mandates that labels be applied to every element that receives an identifier. The standard provides guidance on label durability and legibility appropriate to the environment. Key labeling requirements include:

• Telecommunications outlets and connectors at the work area
• Patch panel ports at the TR or ER
• Both ends of every cable and cord
• Fiber splice enclosures and optical distribution frames
• Backbone cable sheaths at each end and at any intermediate access point
• Telecommunications spaces themselves (room identification signage)
• Pathways, including cable tray sections and conduit where accessible

Label durability matters more than many teams appreciate at installation time. Labels applied in mechanical rooms, above hot ceilings, or in outdoor or industrial environments need to be specified for those conditions. A label that falls off or becomes illegible within two years is worse than no label at all — it creates false confidence in records that no longer match physical reality.

Records: The Living Document Your Infrastructure Depends On

Labeling without records maintenance is only half the job. TIA-606 defines the minimum required records for each class of administration, covering connectivity records, cable records, pathway records, and space records. These records document not just what is installed, but how components interconnect — which is the information that actually enables troubleshooting and change management.

Modern connectivity management software can automate much of the records-keeping process and enforce TIA-606 identifier formats. For larger deployments — particularly those in data center environments where ANSI/TIA-942 also applies — automated infrastructure management (AIM) systems that integrate physical layer discovery with the records database can dramatically reduce the labor cost of administration and the risk of records drift.

Common Implementation Mistakes to Avoid

After reviewing and commissioning cabling plants across a wide range of facility types, the same mistakes appear repeatedly:

• Ad hoc identifier schemes that made sense to one installer but are unreadable to the next technician on site
• Labeling only one end of a cable run — always label both ends, and label the cable itself
• No records update process after MACs — even a perfect initial installation degrades quickly without a change-management discipline
• Ignoring backbone cables — horizontal runs get labeled, but inter-building or inter-floor backbone runs are left undocumented
• Using the wrong administration class for the scale of the installation

Making the Investment Pay Off

Structured cabling is a long-lived infrastructure investment. Unlike active equipment, a well-installed cabling plant can serve a facility for well over a decade. The administration and labeling program you put in place at commissioning will shape every troubleshooting call, every MAC, and every audit that happens across that entire service life.

At Heather Technologies, we work with integrators, facility managers, and government agencies to specify and procure the infrastructure components — patch panels, faceplates, labeling systems, and connectivity management platforms — that support a complete TIA-606-compliant administration program. Getting the physical products right is part of getting the administration right. If your team is planning a new installation or trying to bring an existing plant into compliance, we're here to help you build it correctly from the start.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
