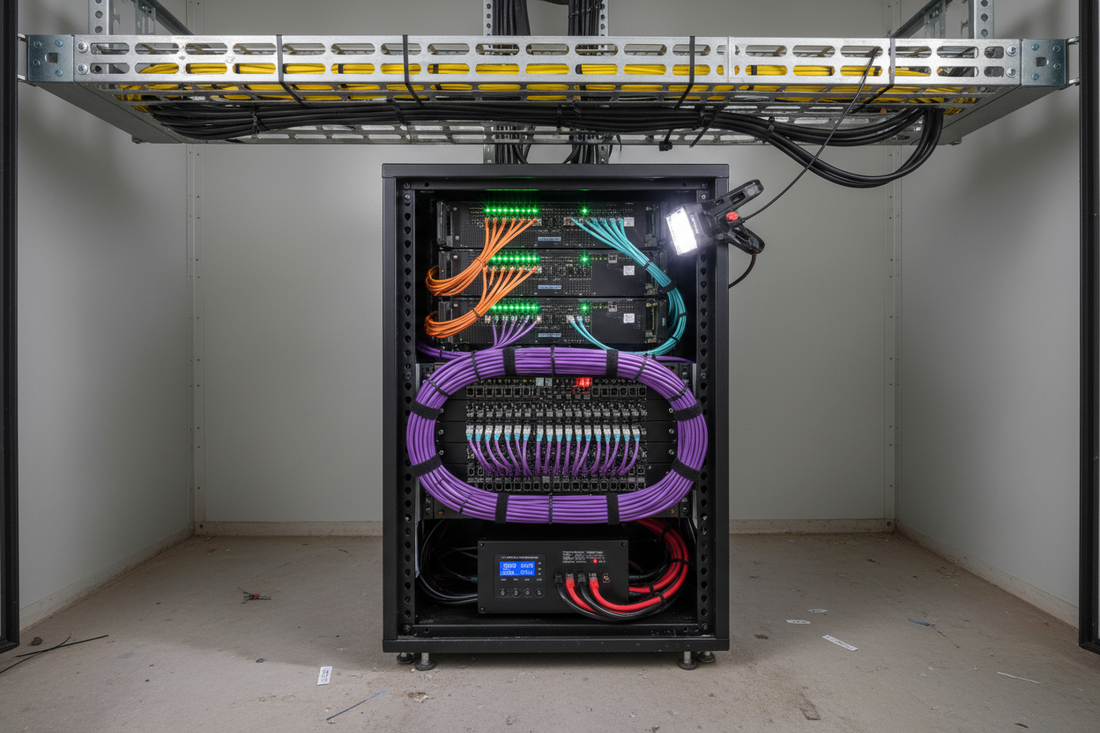

Cabling for the AI Edge: A Site Planner's Primer
AI workloads don't live exclusively in hyperscale data centers anymore. Inference engines, edge-AI appliances, and compact GPU clusters are showing up in enterprise wiring closets, remote facilities, and hardened government sites. Each of those deployments demands a cabling strategy that was written with AI-grade bandwidth, power density, and — in some cases — classified-data security in mind. This primer walks you through the key decisions.
Start With Fiber: The AI Edge Backbone
High-bandwidth AI traffic is a fiber conversation first. ANSI/TIA-568.3-D governs optical-fiber cabling and components, and it gives site planners a clear hierarchy of multimode and singlemode options.
Multimode: OM4 and OM5 for Short-Reach AI Interconnects
For inside-plant, rack-to-rack, and top-of-rack switch connections, laser-optimized 50/125 µm multimode fiber — OM3, OM4, and OM5 — remains the dominant choice. OM4 supports 100G over meaningful distances with parallel or duplex optics, while OM5 (wideband multimode, also defined under 568.3-D and the referenced IEC 60793-2-10/TIA-492 specifications) adds support for short-wavelength division multiplexing (SWDM), enabling higher-density 400G and emerging 800G links over the same fiber count. If you are wiring a new AI edge pod today, OM4 is the defensible floor; OM5 is the future-proof investment.
MPO/MTP ribbon connectors are the practical choice for parallel optics — 8-fiber and 12-fiber MPO arrays underpin most 40G/100G/400G parallel implementations. Where duplex LC connections are used for duplex transceivers, verify UPC versus APC polish requirements against your transceiver vendor's specifications; mixing polish types introduces insertion loss that AI switch ASIC optics will not tolerate.
Singlemode: OS2 When Distance or Coherent Optics Enter the Picture
Edge sites that backhaul to a regional data center, or that aggregate traffic across a campus, should plan singlemode OS2 infrastructure. ITU-T G.652 and G.657 define the singlemode fiber types recognized under ANSI/TIA-568.3-D; G.657 bend-insensitive variants are worth specifying in congested pathways. Coherent 400G-ZR and OpenZR+ pluggables — now appearing in edge-AI routers — require singlemode, full stop.
Copper's Role: Cat 6A and Cat 8 in the Right Places
ANSI/TIA-568.2-D governs balanced twisted-pair cabling. Copper still earns a seat at the AI edge table in two specific scenarios: high-power PoE device feeds and short-reach 25/40GBASE-T server connections.
Cat 6A for PoE-Heavy AI Edge Devices
AI edge appliances — smart cameras, inference endpoints, access-layer sensors — increasingly draw power over Ethernet. IEEE 802.3bt (Type 3 delivers up to 60 W at the PSE; Type 4 up to 90 W at the PSE) demands cable that manages heat effectively under sustained multi-pair power delivery. Cat 6A, particularly shielded F/UTP or S/FTP variants specified under 568.2-D, handles the thermal and electrical performance requirements. Bundled UTP runs powering multiple PoE devices simultaneously can experience meaningful temperature rise; derate bundle fill or choose shielded cable accordingly.
Cat 8 for Ultra-Short GPU-to-Switch Links
Cat 8, also defined in ANSI/TIA-568.2-D, supports 25GBASE-T and 40GBASE-T to approximately 30 meters — a fit for within-rack or adjacent-rack GPU cluster management connections where pulling fiber is operationally impractical. Cat 8 operates to 2 GHz and is specified as shielded; proper ANSI/TIA-607 bonding and grounding at the TMGB/TGB is non-negotiable when shielded copper permeates an AI edge enclosure.
Power Delivery: When PoE and Traditional Circuits Aren't Enough
Dense AI edge deployments can exceed what conventional low-voltage wiring methods deliver cleanly. Two emerging frameworks deserve attention.
Fault-Managed Power (Class 4 — NEC Article 726)
The 2023 NEC introduced Article 726, creating a new Class 4 / Fault-Managed Power (FMP) circuit class distinct from the Class 1/2/3 circuits in Article 725. FMP systems monitor energy in discrete packets and shut down on fault detection in milliseconds, making them touch-safe despite operating at voltages well above Class 2 limits. Article 726 also relaxes conduit requirements in most installations, which significantly reduces pathway congestion — a real benefit in space-constrained edge sites. Cable used must be listed to UL 1400-2; equipment to UL 1400-1.
Heather Technologies partners with VoltServer, whose Digital Electricity (DE) platform is an implementation of FMP/Packet Energy Transfer technology. [FLAG: VoltServer DE representative specs — up to ~450 V / ~2,000 W per channel, reach of approximately 1 mile / ~2 km on data-type cable — verify current product datasheet before specifying.] We also partner with DCPacket and their Titan Platform, which brings FMP architecture into the data center context in partnership with VoltServer.
Physical Security for Classified AI Edge Sites
Government and defense AI edge deployments that transmit unencrypted classified data require a Protected Distribution System (PDS) — not simply encryption, but physical and electromagnetic protection of the transmission medium itself. The governing document is CNSSI No. 7003 (2015), issued by the Committee on National Security Systems, which superseded NSTISSI No. 7003 (1996). PDS categories include Hardened Distribution Systems and Simple or Alarmed Carrier systems.
Heather Technologies partners with CyberSecure IPS, whose Alarmed Carrier PDS solution embeds acoustic-sensing fiber within the conduit to detect physical intrusion attempts. The system automates the Periodic Visual Inspection (PVI) process and supports compliance testing required under CNSSI 7003 — reducing the administrative burden that has historically made PDS deployments labor-intensive. Note that TEMPEST (emanations security) is a separate discipline from PDS physical line protection and requires its own analysis.
Infrastructure Standards Every AI Edge Planner Should Have Open
- ANSI/TIA-942 — Data center infrastructure and redundancy ratings (reference for even small edge data rooms)
- ANSI/TIA-569 — Pathways and spaces; governs cable tray, conduit fill, and equipment room layout
- ANSI/TIA-606 — Administration and labeling; critical when AI edge sites are managed remotely
- ANSI/TIA-607 — Bonding and grounding; TN-S systems, TMGB/TGB topology
- NFPA 70 / NEC — Electrical code; Chapter 3 wiring methods; CMP (plenum) and CMR (riser) cable ratings
- ASHRAE TC 9.9 — Thermal guidelines; recommended IT inlet range approximately 18–27°C; essential for AI GPU thermal planning
Putting It Together: A Quick Decision Framework
When a new AI edge site lands on your desk, work through these questions in order:
- What are the bandwidth and reach requirements? Short-reach parallel 400G inside a rack points to OM4/OM5 MPO. Campus backhaul points to OS2 singlemode.
- What devices need PoE, and at what wattage? IEEE 802.3bt Type 4 devices require Cat 6A minimum under ANSI/TIA-568.2-D, with careful bundle thermal management.
- Does power density exceed conventional circuit capacity? Evaluate NEC Article 726 FMP solutions — they can simplify pathways while delivering higher power safely.
- Is classified data in scope? If yes, engage PDS planning under CNSSI No. 7003 from the first site walk.
- Is the facility new or retrofit? New builds can right-size pathways (ANSI/TIA-569) and grounding (ANSI/TIA-607) from the foundation. Retrofits need a gap assessment against those same standards.
AI edge infrastructure is not a scaled-down data center — it is a distinct design problem with its own power, bandwidth, thermal, and security demands. Getting the cabling layer right from day one is the most cost-effective decision you will make on any of these projects. The Heather Technologies team is available to walk through site-specific scenarios; reach out to start the conversation.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
