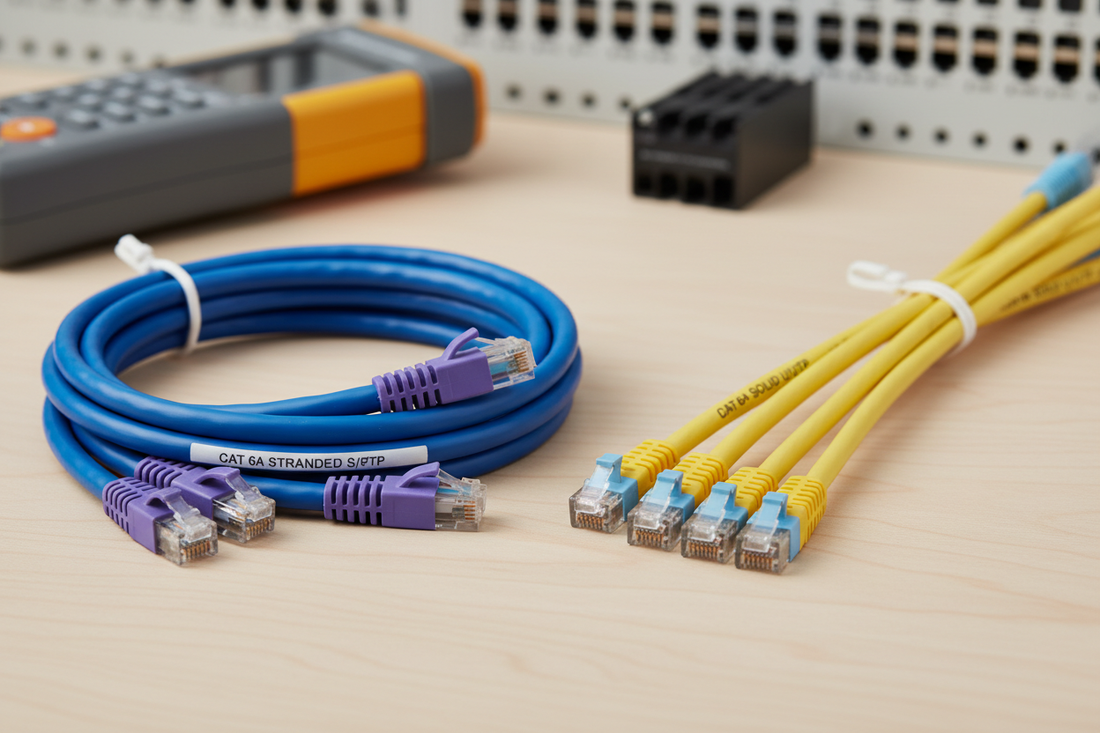

Choosing Patch Cords: Stranded vs. Solid and Boots

Patch Cords: A Small Decision with Large Consequences

Patch cords are the most frequently touched components in any structured cabling system, yet they are often the last item given serious specification attention. In practice, the wrong conductor construction or boot style can degrade channel margins, accelerate jacket wear, introduce intermittent faults, and—particularly in high-power PoE environments—create thermal risk. This article walks through the key variables so you can make an informed choice before the cords go in the bag.

Stranded vs. Solid Conductor Construction

Every copper patch cord is built around one of two conductor geometries. Understanding the difference matters because ANSI/TIA-568.2-D, the governing standard for balanced twisted-pair copper cabling, recognizes both but assigns them to different roles within the channel model.

Solid Conductors

Solid-conductor cable uses a single wire per conductor. It offers lower DC resistance and better high-frequency transmission characteristics, which is why it is the correct choice for horizontal and backbone runs. However, solid conductors are stiff and fatigue-crack when repeatedly flexed. Using solid-conductor cable as a patch cord—especially at a busy user outlet or a densely patched panel—leads to work-hardening at the plug termination, eventual conductor fracture, and an intermittent or open circuit that is notoriously difficult to troubleshoot.

Stranded Conductors

Stranded patch cords bundle multiple smaller wire filaments together to form each conductor. The result is a cable that bends easily, resists flex fatigue, and survives the repeated plug-and-unplug cycles that patch panels and equipment ports see over their service life. The trade-off is slightly higher DC resistance compared to an equivalent-gauge solid conductor, which matters in two practical contexts.

First, insertion loss over the patch cord itself is modestly higher for stranded construction. For short patch cords—the 1- to 5-meter lengths typical of equipment rooms—this difference is absorbed within the overall channel margin defined by ANSI/TIA-568.2-D. Second, DC resistance becomes a real concern under IEEE 802.3bt (PoE Type 3 and Type 4, delivering up to 60 W and 90 W respectively at the PSE). Higher conductor resistance in a stranded patch cord contributes to increased resistive loss and, more importantly, elevated conductor temperature when carrying sustained PoE current. Specifying a patch cord with the correct AWG for the PoE wattage class in use is not optional—it is a thermal and power-delivery discipline.

The Right Tool for the Right Segment

  • Horizontal runs, consolidation points, backbone: Solid-conductor, per ANSI/TIA-568.2-D channel architecture.
  • Equipment cords and patch cords at panels and outlets: Stranded-conductor, sized appropriately for the PoE class per IEEE 802.3bt.
  • Cat 6A and Cat 8 environments: Verify that the stranded patch cord carries a conforming test report; Cat 8 extends the channel to 2 GHz and 25/40GBASE-T applications, and marginal components degrade the link quickly.

Boot Style and Why It Is Not Cosmetic

The boot—the molded strain-relief collar at the plug—protects the transition between the plug body and the cable jacket from sharp bends. Choosing the wrong boot profile for the installation environment causes premature jacket cracking, latch breakage, and in dense spaces, makes cable management a genuine operational problem.

Standard Straight Boot

The classic straight boot is appropriate for open cable trays, equipment racks with generous horizontal cable managers, and anywhere cords run in a relatively straight path from panel to port. It provides solid axial strain relief and is the lowest-cost option. Its weakness is that it does not accommodate tight lateral bends gracefully.

Angled Boots (45° and 90°)

Angled boots redirect the cable immediately at the plug exit, which is invaluable when ports face a wall, when patch panels are mounted in shallow enclosures, or when adjacent plug bodies in a dense panel would otherwise force cables into contact with neighboring latches. A 90° angled boot, for instance, allows the cable to exit parallel to the panel face rather than projecting outward, substantially reducing the bend radius at the connector and keeping cable managers from being overwhelmed. ANSI/TIA-569, which governs pathways and spaces, calls for minimum bend radii to be maintained throughout the cabling plant; angled boots are a practical tool to honor that requirement at the cord level.

Slim and Low-Profile Boots

High-density switching environments—top-of-rack switches in particular—often pack ports so tightly that a standard boot body physically prevents adjacent ports from seating a second plug. Slim-profile boots reduce the outer diameter of the boot body, allowing fully populated port rows without interference. This is increasingly relevant in data center infrastructure governed by ANSI/TIA-942, where port density directly affects floor-space efficiency and cabling overhead.

Snagless and Latch-Guard Designs

Snagless boots enclose the RJ45 latch in a protective shroud that prevents it from catching on adjacent cables during installation or removal. In environments where cords are frequently moved—MACs (moves, adds, changes) tracked under ANSI/TIA-606 administration practices—a broken latch creates a plug that no longer locks into the port, introducing intermittent connectivity. Snagless designs extend latch life significantly in high-MAC environments.

Jacket Ratings: Don't Overlook the Label

The outer jacket of the patch cord must match the space where it is installed. NEC/NFPA 70 mandates plenum-rated (CMP) jackets for air-handling spaces and riser-rated (CMR) jackets for vertical shaft runs. Installing a general-purpose CM-rated cord in a plenum ceiling is a code violation with real fire-propagation consequences, not a specification technicality. Verify the jacket marking on every cord before it leaves the staging area.

Putting It Together: A Quick Selection Framework

  • Confirm the channel category (Cat 5e, 6, 6A, or 8 under ANSI/TIA-568.2-D) and match the patch cord to that category or higher.
  • Specify stranded construction for all patch and equipment cords; reserve solid construction for fixed horizontal cable.
  • For PoE circuits under IEEE 802.3bt, verify conductor AWG and confirm the cord's resistance specification is appropriate for the power class.
  • Choose boot style based on physical constraints: angled for dense panels or shallow enclosures, slim for high-density switching rows, snagless for high-MAC environments.
  • Confirm jacket rating (CMP or CMR) against the space classification defined in NEC/NFPA 70.
  • Label cords at installation per ANSI/TIA-606 to support accurate records and efficient future MACs.

Conclusion

Patch cords sit at the intersection of transmission performance, physical durability, PoE power delivery, and day-to-day manageability. Stranded construction and a thoughtfully chosen boot profile are not upgrades—they are the baseline for a cabling system that performs reliably across its intended service life. Get the specification right at procurement, and the infrastructure takes care of itself. Get it wrong, and you will spend far more correcting failures than the price difference ever justified.
