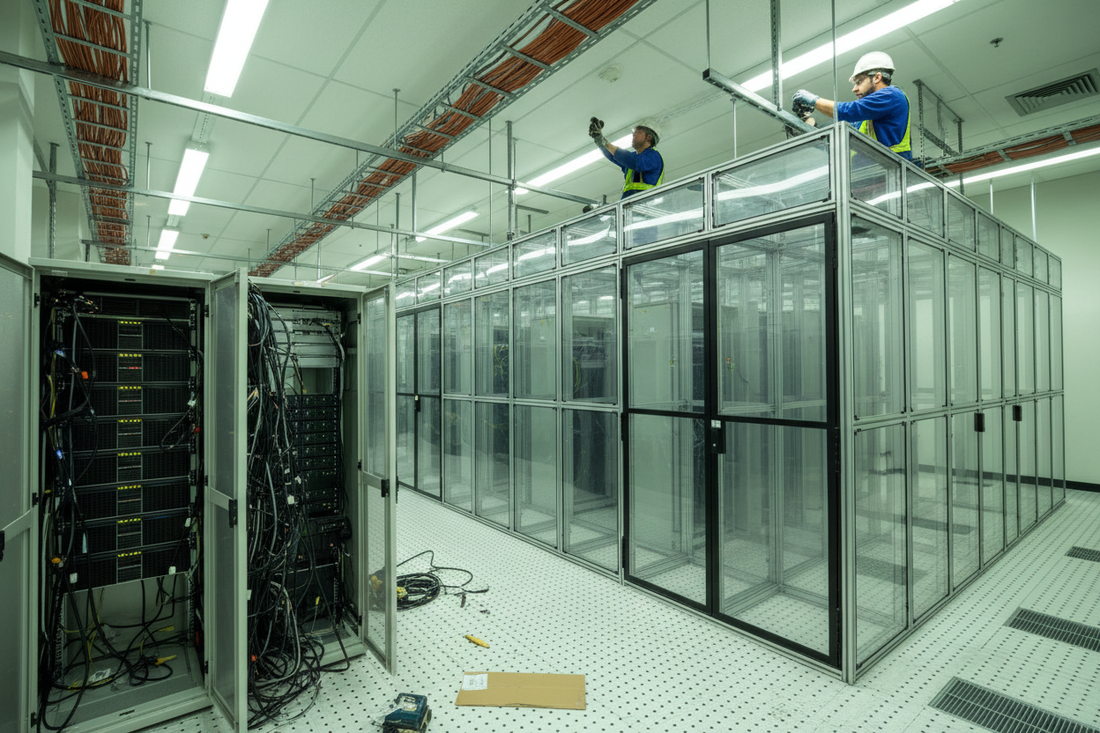

Containment Retrofits: Adding Hot-Aisle Control to Legacy Data Centers

Why Hot-Aisle Containment Retrofits Deserve a Second Look

Most data centers were never designed with containment in mind. Rows of cabinets sit open to the room, hot exhaust mixes freely with cold supply air, and computer room air handlers (CRAHs) compensate by overcooling the entire space just to keep the hottest rack inlets within range. The result is wasted energy, inflated power usage effectiveness (PUE) scores, and thermal headroom that disappears the moment you add density.

Fortunately, containment does not require a demolition permit. A well-planned hot-aisle containment (HAC) retrofit can be dropped into an operating facility in staged phases, delivering measurable PUE improvement and aligning the environment with the ASHRAE TC 9.9 recommended IT equipment inlet range of approximately 18–27°C. This article walks through the planning, infrastructure, and cabling considerations that make the difference between a retrofit that performs and one that creates new problems.

Understanding What You Are Actually Containing

Hot-aisle containment captures exhaust air at the rear of equipment and routes it directly back to CRAH returns, preventing recirculation into cold aisles. The physics are straightforward; the execution in a legacy environment is not. Before panels, doors, or overhead plenums go in, three site conditions must be characterized:

• Airflow balance: Containment amplifies existing imbalances. If raised-floor perforated tile placement is irregular or bypass airflow is significant, containment can create cold-aisle pressurization problems that offset thermal gains.
• Cabinet fill and blanking: Open rack units allow hot exhaust to short-circuit back through the cabinet. Every open U space in the contained row must be blanked before containment is energized.
• Structural clearances: Overhead containment structures interact with cable trays, ladder rack, and conduit runs. A pathway survey under ANSI/TIA-569 should be completed before containment geometry is finalized.

Cabling Infrastructure in a Contained Environment

Overhead Pathways and Thermal Stratification

In an open data center hall, overhead ladder rack sits in relatively stable ambient air. Inside a hot-aisle containment enclosure, cable pathways over the hot aisle can experience significantly elevated temperatures depending on containment design and CRAH return-air management. Cables routed through or adjacent to the hot zone should be rated for the expected thermal environment, and pathway design should be revisited against ANSI/TIA-569 spacing and fill requirements to ensure adequate airflow around bundles.

Where copper structured cabling is present, ANSI/TIA-568.2-D establishes performance categories for balanced twisted-pair systems including Cat 6A, which is the current baseline recommendation for 10GBASE-T horizontal runs in data center environments. Sustained elevated ambient temperatures can affect insertion loss performance in copper links, so cable routing that avoids extended exposure to hot-aisle exhaust temperatures is preferred. Where optical fiber is used for high-density backbone or inter-row connections, ANSI/TIA-568.3-D governs optical-fiber cabling and components; fiber is inherently immune to the electromagnetic considerations that affect copper and is generally more tolerant of the temperature variation seen in containment transitions, though jacket ratings should still be verified against the installation environment.

Labeling and Documentation After Physical Changes

A containment retrofit physically reorganizes space. Cabinets get renumbered into contained rows, cable entry points shift, and overhead pathways are partially obstructed by containment structures. This is precisely the kind of infrastructure change event that ANSI/TIA-606 administration practices are designed to capture. Updating records—cabinet IDs, link identifiers, pathway assignments—at the time of the retrofit rather than retroactively prevents the documentation drift that makes future moves, adds, and changes exponentially more difficult.

Electrical and Grounding Considerations

Containment structures introduce new metallic elements into the data center space: end doors, overhead panels, and support frames. These components must be bonded into the facility grounding system in accordance with ANSI/TIA-607, which governs bonding and grounding infrastructure including telecommunications main grounding busbars (TMGB) and telecommunications grounding busbars (TGB). NEC/NFPA 70 requirements for equipment bonding apply regardless of whether the metallic containment components carry electrical current in normal operation.

For facilities exploring higher-density power distribution within contained rows, ANSI/TIA-942 provides the data center infrastructure framework that informs redundancy and distribution architecture decisions, particularly when containment is being paired with a power density upgrade that changes Tier-relevant concurrency requirements.

Phased Retrofit Sequencing

Few operating data centers can afford a single-weekend containment cutover across the entire hall. A phased approach by row or zone allows incremental validation:

• Phase 1 – Audit and preparation: Airflow measurement, blanking panel installation, pathway and grounding survey, documentation baseline per TIA-606.
• Phase 2 – First contained row: Install end doors and overhead or return-duct structure on a single hot aisle. Monitor inlet temperatures at multiple rack heights for a minimum stabilization period before drawing conclusions.
• Phase 3 – CRAH setpoint adjustment: As containment proves effective, supply air temperature can often be raised incrementally toward the upper end of the ASHRAE TC 9.9 recommended range, directly reducing compressor energy consumption and improving PUE.
• Phase 4 – Expand and optimize: Replicate the validated approach across additional rows, using measured data from Phase 2 and 3 to refine containment geometry and airflow management before each new zone goes live.

Measuring Success: PUE and Thermal Margins

PUE—total facility power divided by IT equipment power—is the standard metric for data center energy efficiency. Containment's contribution to PUE improvement comes primarily through reduced cooling energy: the same IT load requires less cooling plant work when supply and return air are not mixing. The magnitude of improvement depends heavily on baseline conditions; facilities with severe hot-cold air mixing prior to containment typically see the largest gains.

Thermal margin, measured as the difference between the ASHRAE TC 9.9 recommended inlet ceiling and actual measured inlet temperatures, is the operational safety buffer that determines how much additional density the facility can absorb. Containment typically widens this margin by removing the recirculation component from inlet temperature calculations. Documenting pre- and post-retrofit inlet temperature distributions at the rack level—not just at the CRAH sensor—is the only way to confirm that margin improvement is real and evenly distributed across the contained rows.

Partnering on Retrofits That Stick

The technical execution of a containment retrofit touches pathways, cabling, grounding, power distribution, and controls simultaneously. Heather Technologies works with data center operators to coordinate these disciplines—ensuring that containment structures, cabling infrastructure, and facility systems are designed as an integrated solution rather than layered afterthoughts. Whether your facility is a single-row pilot or a multi-hall modernization, the fundamentals of planning, documentation, and staged validation remain the same.

Contact the Heather Technologies team to discuss a site assessment and containment retrofit scope tailored to your current infrastructure and density roadmap.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
