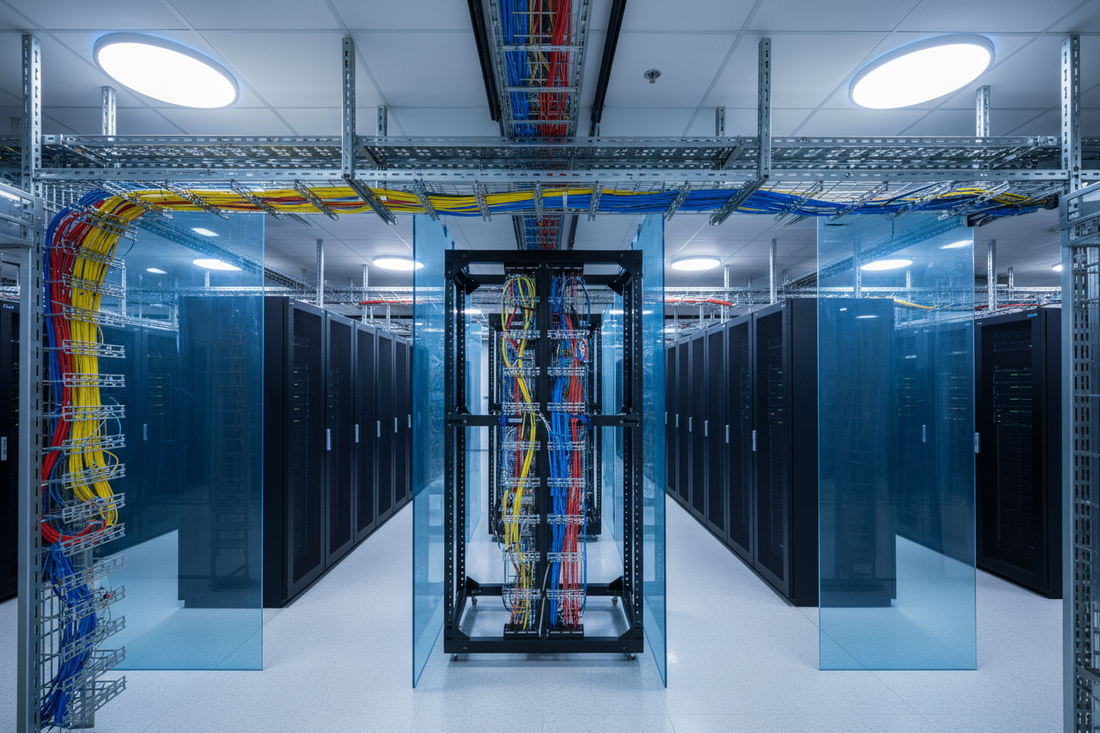

Data-Center Cabling: Designing to ANSI/TIA-942
When a data center goes down, the cost is immediate and measurable. In my experience working with enterprises, colocation providers, and government agencies on network infrastructure projects, the cabling plant is almost always the silent variable that separates a resilient facility from a fragile one. ANSI/TIA-942 exists precisely to address that variable — and understanding how to apply it correctly, in concert with the broader TIA standards family, is foundational work for any serious designer.
What ANSI/TIA-942 Actually Governs
ANSI/TIA-942 is the telecommunications infrastructure standard for data centers. It defines the topology, space and pathway requirements, redundancy tiers, and cabling subsystems specific to data-center environments. It is not a generic building cabling standard — that role belongs to other TIA documents — and understanding where its jurisdiction starts and stops is the first step toward a coherent design.
TIA-942 establishes a tiered rating system (Rated-1 through Rated-4) that describes increasing levels of redundancy, fault tolerance, and concurrently maintainable infrastructure. These ratings guide everything from physical pathway layout to the number of diverse entry points for outside plant cabling. Designers should understand that TIA-942 ratings are distinct from the Uptime Institute Tier classifications, even though both use a four-level framework. They are not interchangeable.
The TIA-942 Topology: Functional Areas You Must Design Around
TIA-942 defines a specific set of functional spaces within the data center. Designing to these spaces — rather than improvising a layout — is what gives a facility structural consistency and makes future moves, adds, and changes manageable.
- Entrance Room (ER): The demarcation point where outside plant cabling enters the facility. TIA-942 requires diverse, physically separated pathways for higher-rated facilities to eliminate single points of failure at ingress.
- Main Distribution Area (MDA): The core of the data-center cabling topology, housing the main cross-connect and often the core switching and routing equipment. All horizontal and zone cabling ultimately traces back here.
- Horizontal Distribution Area (HDA): Serves the equipment distribution area (EDA) via horizontal cabling, analogous to the telecommunications room in a commercial building — but with data-center-specific requirements for density and pathway management.
- Zone Distribution Area (ZDA): An optional consolidation point between the HDA and EDA that facilitates flexible, reconfigurable cabling without disturbing permanent infrastructure.
- Equipment Distribution Area (EDA): Where servers, storage, and network equipment are physically deployed — your rows and racks.
Every cross-connect in a TIA-942-compliant design should be deliberate. Unnecessary cascading cross-connects add insertion loss, complicate troubleshooting, and introduce potential failure points. The standard imposes limits on the number of cross-connect levels permitted between any two communicating devices, and designers must respect those limits.
Copper Cabling: Category Selection and the Role of TIA-568.2-D
For balanced twisted-pair copper within the data center, ANSI/TIA-568.2-D is the governing document. This standard covers Cat 5e, Cat 6, Cat 6A, and Cat 8 components and channel performance. It is strictly a copper standard.
In modern data-center horizontal runs, Cat 6A is the predominant choice for good reason: it supports 10GBASE-T operation as defined under IEEE 802.3 at channel lengths appropriate to most EDA deployments. Cat 6A also handles the increasing power demands of high-wattage PoE devices — classified under IEEE 802.3bt (Type 3 and Type 4) — with better thermal performance than Cat 6 in bundled configurations, a real concern in densely populated cable trays.
Cat 8, also specified in ANSI/TIA-568.2-D, is intended for very short reaches and targets 25GBASE-T and 40GBASE-T applications. Its applicability is largely limited to top-of-rack switch-to-server connections and similar short links. Designers should not treat Cat 8 as a general-purpose upgrade — its distance constraints make it unsuitable for most MDA-to-HDA backbone runs.
Optical Fiber: Making the Right Choices with TIA-568.3-D
Backbone cabling within a TIA-942 data center is almost universally fiber, and ANSI/TIA-568.3-D is the fiber-specific standard you work from. It covers multimode grades OM1 through OM5 and single-mode grades OS1 and OS2. It is entirely separate from the copper standard — a distinction that matters when specifying components and writing procurement language.
For new data-center designs, OM4 and OM5 multimode are the practical choices for laser-optimized, high-bandwidth backbone runs. OM5 extends the value of multimode infrastructure by supporting short-wavelength division multiplexing (SWDM) applications, giving owners a longer useful life from their fiber plant. OM1 and OM2 are legacy grades and should not be specified in new construction.
Single-mode fiber — OS2 in particular — is the appropriate choice for longer intra-campus runs and any application where the distance or bandwidth demands exceed what multimode can support. OS2 corresponds to low-water-peak single-mode fiber types referenced under ITU-T G.652. Bend-insensitive single-mode variants fall under ITU-T G.657 and are useful in high-density patching environments where tight bend radii are unavoidable.
Fiber color coding in a TIA-942 environment should follow TIA-598-D, which defines the color assignments for fiber types, buffer tubes, and array cables. Consistent color coding is not aesthetic preference — it is an administration discipline that directly affects how quickly technicians can identify and trace circuits under pressure.
Pathways, Administration, and Grounding: The Supporting Standards
TIA-942 does not operate in isolation. Three supporting standards complete the framework for a fully compliant data-center design:
- ANSI/TIA-569 governs pathways and spaces, including cable tray sizing, bend radius management, and separation requirements between power and data cabling. In data centers, cable tray fill and EMI separation are persistent design challenges, and TIA-569 provides the guidance to address them methodically.
- ANSI/TIA-606 covers administration and labeling. A data center without a rigorous labeling scheme — applied consistently from day one — becomes progressively harder to manage and audit. TIA-606 defines identifier formats and record-keeping requirements that support long-term operational clarity.
- ANSI/TIA-607 addresses bonding and grounding for telecommunications infrastructure. In a data center, proper grounding is not optional safety theater — it is a functional requirement for equipment protection, noise reduction, and compliance with electrical codes.
A Note for Government and Regulated Projects
Organizations procuring infrastructure for federal projects should be aware that Buy American Act (BAA) and Trade Agreements Act (TAA) compliance are legal and policy requirements — not TIA standards. These mandates govern the country of origin for manufactured goods used in government contracts and must be addressed through procurement and sourcing due diligence. Heather Technologies, as a WBE/EDWOSB distributor, routinely helps agencies navigate compliant sourcing alongside the technical standards framework.
Design with the Full Framework in Mind
ANSI/TIA-942 is a powerful framework, but it delivers value only when designers engage with it as a complete system — pairing it with the fiber and copper cabling standards it references, the pathway and administration standards that operationalize it, and the grounding requirements that protect it. Cutting corners on any layer of that framework typically surfaces as an expensive problem later.
If you are planning a new data-center build, an infrastructure refresh, or a capacity expansion and want to work through the standards implications specific to your project, reach out to the team at Heather Technologies. Getting the design right at the specification stage is always less expensive than correcting it in the field.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
