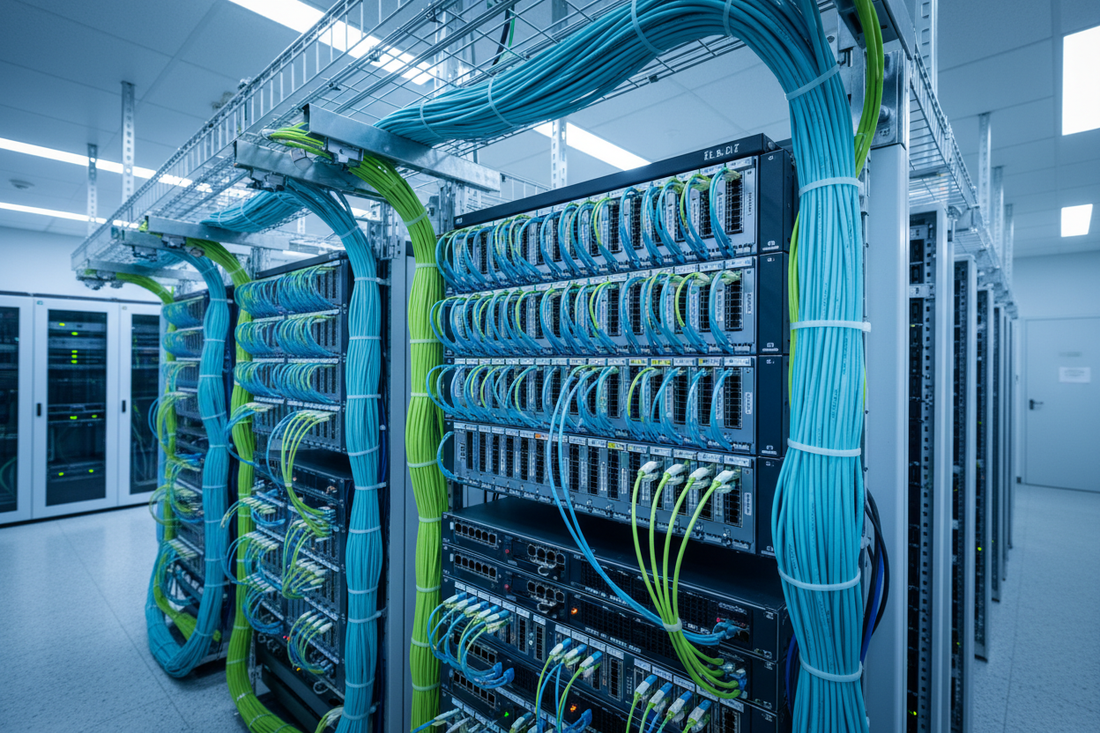

Designing Data-Center Fiber: OM4, OM5, and Parallel Optics

Why Fiber Design Decisions Matter More Than Ever in the Data Center

Data centers are under relentless pressure: higher port densities, faster interconnect speeds, and tighter power budgets are converging at the same moment that 400G and 800G Ethernet deployments are moving from early adopter to mainstream. The fiber choices you make at design time will either enable that growth or constrain it for the next decade. As an RCDD, I want to walk you through the practical considerations around OM4 and OM5 multimode fiber and parallel-optic transceivers so you can make defensible, standards-backed decisions for your clients.

The Standards Foundation: ANSI/TIA-568.3-D and ANSI/TIA-942

Any serious data-center fiber design starts with two documents. ANSI/TIA-568.3-D is the governing standard for optical fiber cabling and components. It defines the performance tiers for multimode fiber—OM1 through OM5—and single-mode fiber categories OS1 and OS2. Multimode performance within 568.3-D is characterized by Effective Modal Bandwidth (EMB), which is measured and specified in accordance with IEC 60793-2-10 and the companion TIA-492 series of fiber specifications referenced by that standard.

ANSI/TIA-942 addresses data-center-specific infrastructure, including topology, tier classification, and cabling system requirements. Together, these two documents give designers a coherent framework: 942 tells you how the data center should be structured; 568.3-D tells you what the fiber inside it must do. Pathway and space planning—ladder rack, cable tray, conduit sizing, bend-radius protection—falls under ANSI/TIA-569, and your labeling and record-keeping scheme should comply with ANSI/TIA-606.

OM4 vs. OM5: Understanding the Difference

OM4: The Proven Workhorse

OM4 is 50/125 µm laser-optimized multimode fiber with a minimum EMB that allows it to support 10G, 25G, 40G, and 100G Ethernet applications as defined in IEEE 802.3 over distances appropriate for intra-data-center use. For most enterprise and colocation facilities built or refreshed in the last several years, OM4 is already in place and remains fully capable of supporting structured cabling runs within the distances specified in ANSI/TIA-942 for main distribution area (MDA) to horizontal distribution area (HDA) or equipment distribution area (EDA) segments.

OM4 transceivers using duplex LC connectors are widely available, competitively priced, and well understood by operations teams. If your design does not anticipate a near-term move to 400G or if channel lengths are well within OM4's reach envelope, it remains a sound, cost-effective choice.

OM5: Wideband Multimode Fiber

OM5, also standardized in ANSI/TIA-568.3-D, is designed as a superset of OM4. It meets or exceeds all OM4 EMB requirements at the traditional 850 nm window and extends specified performance across a broader wavelength range—specifically enabling operation at additional wavelengths in the 850–953 nm range. This wideband characteristic is what makes OM5 strategically important for parallel and wavelength-division multiplexing (WDM) short-wavelength transmission schemes.

The lime-green jacket color that distinguishes OM5 from OM4's aqua is defined in TIA-598-D, the fiber color-coding standard, making field identification straightforward. OM5 is backward compatible with OM4 equipment, which reduces migration risk when upgrading transceivers in an existing OM5 plant.

Parallel Optics: The Architecture Driving OM5 Adoption

Why Parallel Optics Exist

As IEEE 802.3 Ethernet speeds have climbed to 40G, 100G, 400G, and beyond, the industry has increasingly used spatial parallelism—transmitting multiple lower-speed lanes simultaneously across multiple fiber strands—rather than pushing a single fiber to ever-higher baud rates. 40GBASE-SR4 uses four transmit and four receive fibers; 100GBASE-SR4 uses the same eight-fiber ribbon structure at a higher per-lane rate. These applications use MPO/MTP connectors to handle eight, twelve, or twenty-four fibers in a single interface.

ANSI/TIA-568.3-D addresses MPO connector and array connectivity requirements, and ANSI/TIA-942 accommodates parallel-optic trunk cabling within data-center topology design. Proper polarity management for parallel-optic systems—Method A, B, or C—must be designed deliberately from the start; retrofitting polarity corrections in a high-density MPO plant is painful and expensive.

Where OM5 Provides a Genuine Advantage

The clearest technical case for OM5 over OM4 emerges with Short Wavelength Division Multiplexing (SWDM) transceivers and next-generation 400G and 800G parallel-optic modules that leverage multiple wavelengths per fiber pair to reduce the total fiber count. When a transceiver uses two or four distinct wavelengths across the 850–950 nm range over a single fiber pair, the wideband EMB specification of OM5 ensures adequate modal bandwidth across all those wavelengths—something OM4 was not characterized to guarantee.

In practical terms, OM5 can allow a facility to support higher aggregate bandwidth over fewer fiber strands, which matters in high-density spine-and-leaf architectures where conduit fill and MPO port counts are real constraints. For greenfield data-center designs targeting 400G interconnects with a roadmap toward 800G, the incremental cost of OM5 over OM4 is typically modest relative to the pathway and labor investment, and the optionality it preserves is significant.

Design Recommendations for the Practicing Engineer

• Audit your distance requirements first. Confirm that your MDA-to-EDA channel lengths fall within the reach envelopes specified in IEEE 802.3 for your target speed and fiber type before selecting between OM4 and OM5. Distances within a single data-center hall are rarely the deciding factor, but verify before committing.
• Design for parallel optics from day one. Even if you are deploying duplex transceivers today, install MPO-compatible trunk cabling and high-density panels in the initial build. Retrofitting for parallel optics later is far more disruptive than designing for it upfront.
• Specify polarity explicitly in the design documents. ANSI/TIA-568.3-D provides the framework; your drawings must call out the polarity method for every MPO segment so installers and operations staff are not guessing.
• Use TIA-598-D jacket colors to enforce discipline. Lime-green for OM5, aqua for OM4, yellow for OS2 single-mode. Mixed-fiber plants become support nightmares when color discipline breaks down during MACs.
• Plan your labeling under ANSI/TIA-606. High-density MPO plants with hundreds of 12- or 24-fiber trunks are exactly where labeling standards pay dividends. A well-administered fiber plant cuts troubleshooting time dramatically.
• Evaluate single-mode for very long reaches or future-proofing. If any segment in your design approaches or exceeds multimode reach limits, or if your client anticipates a long asset lifecycle with uncertain speed requirements, OS2 single-mode—characterized under ANSI/TIA-568.3-D and conforming to ITU-T G.652 or G.657—offers essentially unlimited bandwidth headroom at the cost of more expensive transceivers today.
• Coordinate with ANSI/TIA-942 tier requirements. Redundancy, diversity, and physical separation requirements at higher tier levels affect fiber routing and may require dedicated conduit or pathway per ANSI/TIA-569.

A Note on Procurement and Compliance

For clients with federal or publicly funded projects, Be American Build American Act (BABA) and Trade Agreements Act (TAA) requirements govern product sourcing. These are matters of law and procurement policy, not TIA standards, and must be addressed independently in your specification language. At Heather Technologies, as a Women's Business Enterprise and Economically Disadvantaged Woman-Owned Small Business, we help clients navigate both the technical specification and the compliant sourcing side of data-center fiber infrastructure procurement.

Final Thoughts

OM4 and OM5 are both excellent, standards-defined solutions. The right choice depends on your client's speed roadmap, channel lengths, fiber-count constraints, and budget tolerance for future optionality. What is not optional is designing the parallel-optic architecture, polarity scheme, and labeling plan with the same rigor you apply to the fiber grade selection itself. Get those fundamentals right, and the cabling infrastructure will support whatever the transceiver market delivers over the next technology cycle.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
