Designing for 400G and 800G: Optics and Fiber Choices

As data centers push toward 400G and 800G Ethernet, selecting the right optical fiber type, connector format, and transceiver technology is critical to building an infrastructure that performs today and scales tomorrow.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
5 min read
Designing for 400G and 800G: Optics and Fiber Choices

Designing for 400G and 800G: Optics and Fiber Choices

The march toward 400 Gigabit and 800 Gigabit Ethernet is no longer a distant roadmap item—it is the infrastructure conversation happening in data centers right now. Whether you are refreshing a hyperscale spine layer, deploying a high-performance computing cluster, or future-proofing a colocation facility, the fiber and optics decisions you make today will define your operational ceiling for years to come. This article walks through the key choices, grounded in current standards and field realities.

Why Fiber—Not Copper—Leads at These Speeds

Copper cabling governed by ANSI/TIA-568.2-D tops out at Category 8, supporting speeds up to 25GBASE-T and 40GBASE-T over distances of roughly 30 meters. That is a practical solution for server-to-ToR switch links in certain high-density configurations, but it simply does not scale to 400G or 800G. At those line rates, optical fiber is the only viable physical medium for anything beyond a backplane. The conversation shifts entirely to the optical domain—and to ANSI/TIA-568.3-D, the governing standard for optical-fiber cabling and components.

Multimode vs. Singlemode: Choosing Your Foundation

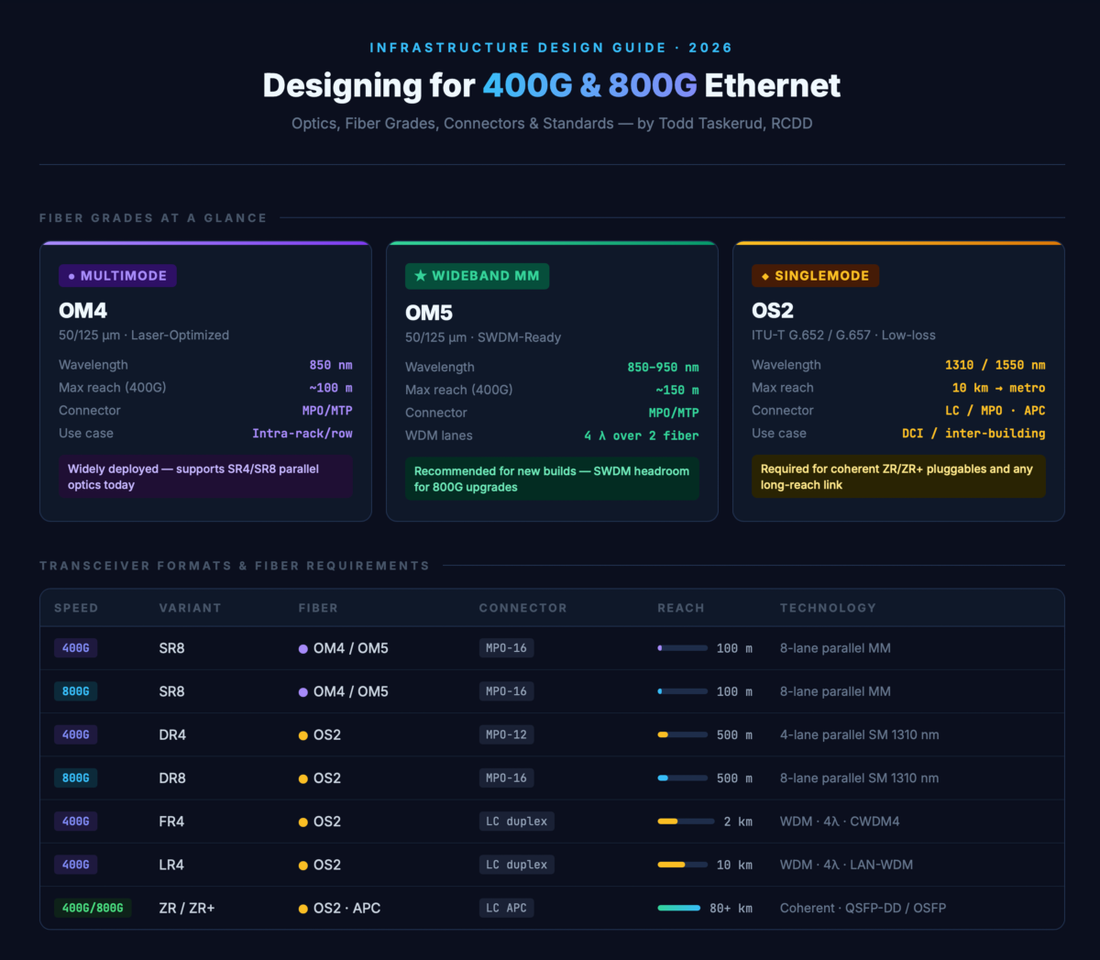

ANSI/TIA-568.3-D recognizes several multimode fiber grades—OM3, OM4, and OM5—all laser-optimized 50/125 µm construction, as well as singlemode grades OS1 and OS2. For 400G and 800G applications, the choice between multimode and singlemode is primarily a function of reach and density economics.

Multimode (OM4 and OM5)

OM4 remains widely deployed and continues to support short-reach 400G applications using parallel optics (SR4, SR8 variants) over MPO/MTP ribbon infrastructure. However, OM5 wideband multimode fiber—also specified in ANSI/TIA-568.3-D—opens the door to shortwave wavelength-division multiplexing (SWDM), allowing multiple wavelengths across the 850–950 nm window. This enables higher lane counts over fewer fiber strands, which directly addresses the port-density pressure that comes with 400G and 800G deployments. When budgets are strand-constrained or conduit fill is already tight, OM5 provides a meaningful architectural advantage over OM4 in campus and within-building data center runs.

The bandwidth and effective modal bandwidth (EMB) values that underpin OM3, OM4, and OM5 performance are defined in IEC 60793-2-10 and the TIA-492 series, both of which are referenced normatively by ANSI/TIA-568.3-D.

Singlemode (OS2) for Long Reach and High Density

For inter-building campus runs, data center interconnect (DCI), and any link requiring distances beyond the multimode sweet spot, OS2 singlemode is the correct answer. OS2 fiber corresponds to ITU-T G.652 (standard singlemode) and G.657 (bend-insensitive variants), both recognized in the 568.3-D framework. At 400G and 800G, singlemode transceivers using coherent or direct-detect technology over OS2 provide the reach and wavelength-division multiplexing density that hyperscale and enterprise DCI architectures demand. The bend-performance characteristics of G.657 fiber are particularly relevant in high-density patching environments and anywhere routing in tight-radius pathways is unavoidable—something your pathway design under ANSI/TIA-569 should account for explicitly.

Transceiver Formats and Lane Architectures

At 400G and 800G, the transceiver market has fragmented into several parallel-optic and wavelength-multiplexed approaches. Understanding the fiber implications of each is essential before you commit to a cabling plant:

  • 400G SR8 / 800G SR8: Uses parallel multimode optics across eight lanes (850 nm), requiring MPO-16 or MPO-24 connectors and OM4 or OM5 fiber. High strand count—plan your pathway fill accordingly.
  • 400G DR4 / 800G DR8: Four or eight parallel singlemode lanes at 1310 nm over OS2 fiber with MPO connectors. Targeted at intra-data center reaches up to approximately 500 meters.
  • 400G FR4 / 800G FR8: Singlemode, wavelength-division multiplexed, LC duplex or MPO, OS2. Designed for reaches into the 2 km range—ideal for inter-row or inter-suite DCI links.
  • 400G LR4 / 800G LR8: OS2 singlemode, WDM, targeting extended reaches typically up to 10 km and beyond, with LC duplex connectors.
  • 400G ZR / 800G ZR+: Coherent pluggable optics over OS2, designed for metro DCI distances. These are QSFP-DD and OSFP form factors and demand low-insertion-loss, APC-polished connector terminations.

Notice how the connector and polarity requirements shift dramatically across these form factors. MPO/MTP array connectors—governed under ANSI/TIA-568.3-D for fiber connector performance—become the backbone of any parallel-optic deployment. Getting MPO polarity and key orientation right at installation is not a minor detail; a reversed polarity at a single cassette can take down multiple 400G links simultaneously.

Connector Polish: UPC vs. APC at High Bit Rates

For coherent and high-sensitivity direct-detect singlemode applications—especially 400G ZR and 800G ZR+—the connector polish type matters more than ever. APC (angled physical contact) connectors deliver significantly lower back-reflection than UPC connectors, and at the receiver sensitivities these transceivers require, that difference is measurable in link margin. ANSI/TIA-568.3-D distinguishes these connector types, and your installation team should understand that APC (green) and UPC (blue) connectors are physically incompatible—cross-mating them damages the ferrule face. Document and label every APC port clearly per your ANSI/TIA-606 administration scheme.

Data Center Infrastructure Considerations

High-density 400G and 800G optics generate significant heat. Transceivers in QSFP-DD and OSFP form factors can dissipate considerably more power per port than their 100G predecessors, which directly impacts your thermal management strategy under ASHRAE TC 9.9 guidelines. ASHRAE TC 9.9 recommends IT equipment inlet temperatures in the range of 18–27°C for most equipment classes, but optical transceivers operating at sustained high power in dense line cards may require inlet temperatures toward the lower end of that range or active cooling adjustments. Work with your equipment vendors on transceiver thermal datasheets before finalizing cabinet layout and airflow design.

Your overall data center design should also align with ANSI/TIA-942 for infrastructure topology and redundancy, and grounding of all metallic pathway elements—cable trays, conduit, equipment racks—must comply with ANSI/TIA-607 bonding and grounding requirements, including proper TMGB and TGB topology.

Practical Design Recommendations

  • Deploy OM5 multimode for new intra-building structured cabling backbone runs intended to support 400G today and 800G tomorrow—the SWDM headroom is real and meaningful.
  • Standardize on OS2 singlemode for any run exceeding your multimode reach budget or destined for coherent pluggable applications.
  • Use pre-terminated MPO/MTP trunk systems with factory-tested insertion loss to eliminate field-polishing variables in parallel-optic deployments.
  • Specify APC polish for all singlemode coherent-optic links and enforce connector color-coding discipline on every installation crew.
  • Size your conduit and tray fill under ANSI/TIA-569 with future strand counts in mind—the cost of adding pathways after installation far exceeds the cost of oversizing today.
  • Verify bend-radius compliance throughout your routing; G.657 fiber in tight-radius enclosures and cassettes reduces macrobend loss risk in high-density patching fields.

The Bottom Line

Designing for 400G and 800G is not simply a matter of buying faster transceivers and plugging them into existing infrastructure. The fiber grade, connector type, polish specification, polarity scheme, and thermal environment all interact in ways that determine whether your investment delivers its rated performance. ANSI/TIA-568.3-D provides the standards framework; the engineering judgment you bring to fiber selection, connector specification, and data center design is what translates that framework into a reliable, scalable infrastructure. At Heather Technologies, we help our partners navigate these decisions with the right products and the right expertise—reach out to discuss how to position your next data center build for 800G and beyond.



About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
