Fiber Certification: When to Use an OLTS vs. an OTDR

Fiber Certification: When to Use an OLTS vs. an OTDR

If you've spent any time specifying or installing structured cabling, you already know that "certifying fiber" isn't a single act—it's a choice of methodology. Two instruments dominate the conversation: the Optical Loss Test Set (OLTS) and the Optical Time-Domain Reflectometer (OTDR). Both measure light. Both generate pass/fail documentation. But they answer fundamentally different questions, and confusing their roles is one of the most common—and costly—mistakes made on fiber projects today.

This article breaks down what each instrument does, what the governing standard requires, and how to decide which tool (or combination of tools) belongs on your next job.

The Governing Standard: ANSI/TIA-568.3-D

All fiber certification discussions for premises cabling in North America anchor to ANSI/TIA-568.3-D, which covers optical fiber cabling components and transmission performance—including multimode grades OM1 through OM5 and single-mode grades OS1 and OS2. (A quick note for teams that work across media types: ANSI/TIA-568.2-D is the balanced twisted-pair copper standard and has no bearing on fiber testing whatsoever. Keep those namespaces clean in your documentation.)

ANSI/TIA-568.3-D defines insertion loss limits and return loss requirements for fiber links and channels. Meeting those limits is the legal tender of fiber acceptance testing—and the OLTS is the instrument designed to measure exactly that.

The OLTS: Your Pass/Fail Instrument

An Optical Loss Test Set pairs a calibrated light source with a power meter to measure end-to-end insertion loss across a fiber link or channel. The result is expressed in decibels, compared against the loss budget calculated for that specific link, and stamped pass or fail.

What the OLTS Measures

• Insertion loss (attenuation): The total optical power lost from the transmit end to the receive end, accounting for connector losses, splice losses, and the attenuation of the fiber itself.
• Return loss (optional but recommended): The amount of light reflected back toward the source—critical for single-mode applications and high-speed multimode systems.

When You Must Use an OLTS

Whenever a project requires formal acceptance testing against ANSI/TIA-568.3-D loss limits, the OLTS is your primary instrument. This includes:

• New structured cabling installations in commercial buildings, campuses, or data centers built to ANSI/TIA-942.
• Moves, adds, and changes where modified links need to be re-certified to current insertion loss limits.
• Any project where the owner, authority having jurisdiction, or design specification explicitly requires TIA-compliant documentation.
• Multimode links supporting active equipment specified under IEEE 802.3 Ethernet applications, where the fiber grade (OM3, OM4, OM5) and link length must be validated against the application's loss budget.

The OLTS tells you whether the link works. It does not tell you why it fails or where a problem exists. That's where the OTDR enters the picture.

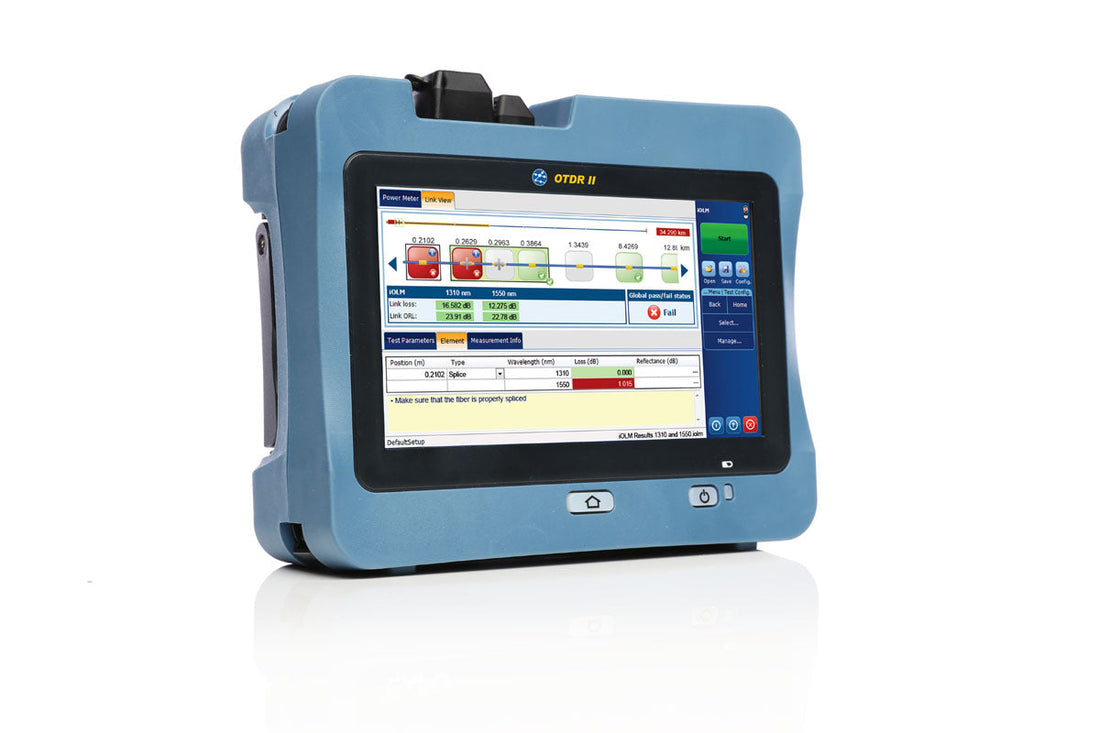

The OTDR: Your Diagnostic Instrument

An Optical Time-Domain Reflectometer launches short pulses of light into a fiber and analyzes the backscatter and reflections that return over time. Because the speed of light in glass is known, the instrument converts time into distance, producing a trace—essentially a signature of the fiber's entire optical path.

What the OTDR Measures

• Event location: The precise distance to connectors, splices, bends, breaks, or other anomalies.
• Event loss: The loss contributed by each discrete event along the link.
• Fiber attenuation coefficient: The loss-per-unit-length of the fiber itself, useful for verifying that installed fiber meets the grade specified (relevant to OM or OS classifications under ANSI/TIA-568.3-D).
• Reflectance: The optical return loss at individual connectors or mechanical splices.

When You Must Use an OTDR

• Troubleshooting failed OLTS results: When a link fails its insertion loss test, the OTDR pinpoints whether the culprit is a dirty connector at position three, a tight bend radius violation, a high-loss fusion splice, or physical fiber damage.
• Outside plant (OSP) and long-haul runs: On extended single-mode runs using ITU-T G.652 or G.657 fiber, OTDR documentation provides the event map that proves the physical integrity of the entire span—information an OLTS simply cannot provide.
• Splice verification: After fusion or mechanical splicing, technicians use an OTDR to confirm splice loss before burying or enclosing the splice point.
• Baseline documentation for maintenance: An OTDR trace taken at installation serves as a reference signature. Future traces can be overlaid to detect degradation over the life of the infrastructure—a practice strongly aligned with the documentation principles of ANSI/TIA-606 administration.
• Contractor verification on long campus or data center backbone runs: Even when OLTS provides the acceptance metric, owners and specifiers increasingly require OTDR traces as supplemental documentation under ANSI/TIA-942 data center projects.

Why You Often Need Both

Here's the point that trips up even experienced installers: the OTDR is not a substitute for the OLTS in acceptance testing, and the OLTS is not a substitute for the OTDR in diagnostics. They are complementary, not interchangeable.

An OTDR-derived loss estimate and a direct OLTS measurement can differ because of the physics involved—backscatter-based calculations and direct end-to-end power measurements each have inherent characteristics that make them appropriate for different purposes. ANSI/TIA-568.3-D defines acceptance criteria in terms of insertion loss measured by an OLTS-class instrument. Submitting OTDR-estimated loss values as compliance documentation for a TIA-568.3-D acceptance test is not technically equivalent and should not be presented as such.

Best practice on any significant fiber project—new commercial construction, data center buildout, or campus backbone installation—is to perform OLTS testing for acceptance documentation and OTDR testing for event-map documentation and future maintenance reference. This two-instrument approach protects the owner, protects the installer, and gives the network team the full picture they need to manage the infrastructure over its lifetime.

Practical Decision Framework

• Short premises links, acceptance testing required → OLTS is mandatory; OTDR is supplemental but recommended.
• Long OSP or backbone runs, single-mode → OLTS for loss compliance + OTDR for event map; both are expected.
• Failed link, unknown cause → OTDR first to locate, then re-test with OLTS after repair.
• Splice plant, no active equipment yet → OTDR for splice verification before enclosure.
• Ongoing maintenance program → Archived OTDR baselines are your most valuable long-term diagnostic asset.

Final Word from the Field

Choosing the right test instrument isn't about gear preference—it's about asking the right question before you pick up the test set. Do you need to prove compliance? Reach for the OLTS and measure against the insertion loss limits in ANSI/TIA-568.3-D. Do you need to understand what's happening inside the glass? Pick up the OTDR and read the trace. Do it right, document it thoroughly, and your fiber plant will support whatever active equipment gets plugged into it—today and years from now.
