Most structured cabling decisions are made with a climate-controlled telecom room in mind. But a growing share of network infrastructure lives somewhere far less forgiving: outdoor edge deployments, manufacturing floors, transportation hubs, oil and gas facilities, military installations, and remote utility sites. In these environments, the connector—that small, often overlooked interface—becomes the single most likely point of failure. Choosing correctly from the start saves substantial cost and downtime later.

Understanding "Harsh" — What the Field Actually Throws at Connectors

Harsh environments impose stressors that standard commercial-grade connectors are simply not designed to handle consistently over time. The primary threat categories include:

• Temperature extremes: Industrial outdoor sites can swing well beyond the commercial operating range of 0°C to 60°C. Thermal cycling causes differential expansion between connector bodies, ferrules, and cable jackets, degrading both mechanical retention and optical or electrical contact quality.
• Moisture and immersion: Rain, condensation, flooding, and wash-down environments demand rated ingress protection. IP67 and IP68 ratings (per IEC 60529) indicate dust-tight and submersion-capable enclosures, respectively—verify connector and housing ratings together, not just the connector alone.
• Vibration and mechanical shock: Transportation, industrial machinery, and defense platforms subject connectors to repeated mechanical stress. Bayonet or threaded coupling mechanisms outperform push-pull designs in sustained vibration scenarios.
• Chemical and UV exposure: Solvents, cleaning agents, fuels, and prolonged UV exposure degrade standard PVC and even LSZH jackets. Look for polyurethane or fluoropolymer overmolds for the harshest chemical environments.
• Electromagnetic interference (EMI): Near motors, generators, and high-power switching equipment, unshielded copper cabling and connectors act as antennas. This is where shielding topology matters enormously.

Copper Connectors in Harsh Environments

For balanced twisted-pair copper, ANSI/TIA-568.2-D defines performance requirements for structured cabling categories including Cat 5e, Cat 6, Cat 6A, and Cat 8. While 568.2-D governs the electrical performance of the cabling system as a whole, harsh-environment deployments demand attention to several factors that standard channel testing alone does not reveal.

Shielding is non-negotiable in high-EMI environments. ANSI/TIA-568.2-D recognizes both unshielded (U/UTP) and shielded constructions including F/UTP (foil-shielded) and S/FTP (braided outer shield plus individually foiled pairs). In industrial settings near variable-frequency drives, robotics, or power distribution equipment, S/FTP Cat 6A is the practical minimum. The shield must be properly terminated and bonded per ANSI/TIA-607, which governs bonding and grounding, including the telecommunications main grounding busbar (TMGB) and telecommunications grounding busbar (TGB). A floating or improperly bonded shield is often worse than no shield at all.

For Power over Ethernet, IEEE 802.3bt (Type 3 and Type 4) delivers up to 60 W and 90 W respectively at the power sourcing equipment. In harsh environments, consider the thermal implications: conductor heating under full PoE load adds to ambient thermal stress. Industrial-rated RJ45 connectors with robust strain relief and environmental sealing are available from multiple manufacturers and should be specified explicitly—do not assume a standard modular plug will survive repeated mating cycles in a wet or dusty environment.

Fiber Connectors in Harsh Environments

Optical fiber is inherently immune to EMI, making it the preferred medium for many harsh industrial and outdoor runs. ANSI/TIA-568.3-D governs optical-fiber cabling and components, covering both multimode (OM3, OM4, OM5 laser-optimized 50/125 µm) and singlemode (OS1/OS2) fiber types, as well as connector types including LC, SC, and MPO/MTP.

In the field, the fiber connector's mechanical construction and polish type are both critical decisions:

• Polish type: UPC (ultra-physical contact) connectors offer excellent return loss for most applications. APC (angled physical contact) connectors provide superior return loss performance and are preferred for single-mode applications where reflected light can disrupt laser sources—particularly relevant in long-haul or high-sensitivity analog systems. APC and UPC connectors are physically incompatible; mating them damages both ferrule faces.
• Singlemode fiber: ITU-T G.652 defines standard singlemode fiber; ITU-T G.657 defines bend-insensitive singlemode fiber well-suited to tight-radius routing common in field enclosures.

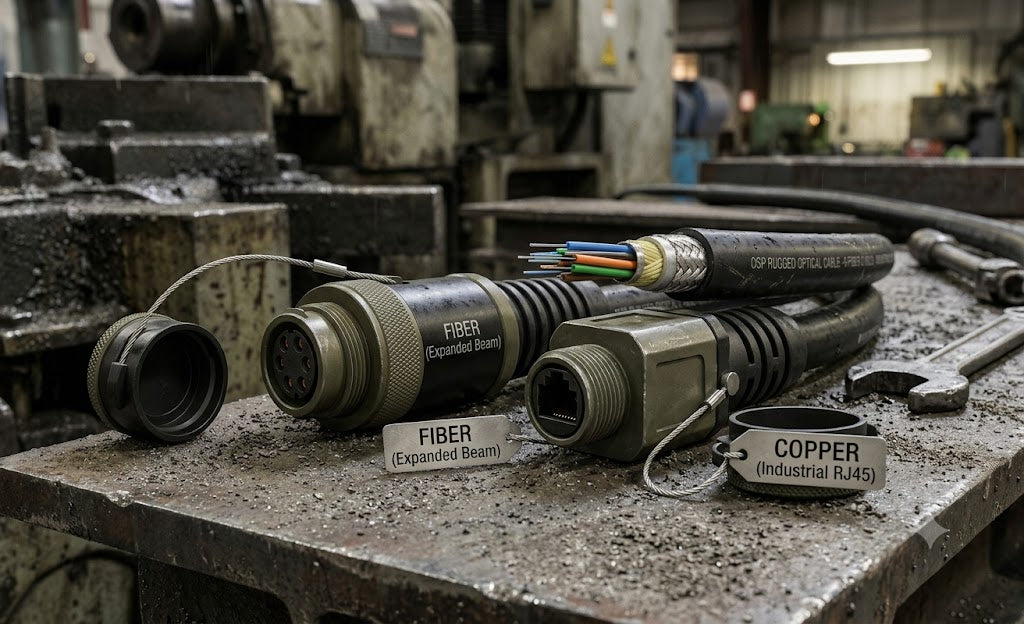

• Hardened connectors: Purpose-built hardened fiber connectors—often featuring stainless steel or ruggedized polymer housings, IP67/IP68 sealing, and military-style bayonet or threaded coupling—are available in LC, SC, and MPO footprints. These are the correct choice for direct outdoor exposure, not standard simplex connectors inside a field enclosure with marginal sealing.
• MPO/MTP arrays: Multi-fiber push-on connectors dominate high-density and pre-terminated trunk applications. In harsh environments, MPO connectors require careful attention to ferrule cleanliness and pin/socket alignment; a single contaminated fiber in a 12- or 24-fiber array degrades the entire ribbon link.

Industrial Connector Standards and Ratings — A Practical Checklist

When specifying connectors for a harsh-environment project, work through these decision points systematically:

• IP rating: Confirm both the connector and mated-pair IP rating; an IP67 connector in an unrated enclosure provides no real protection.
• Operating temperature range: Verify the full range—storage temperature ratings are not operating ratings.
• Mating cycles: Industrial-grade connectors are rated for far more mating cycles than commercial equivalents; specify accordingly for maintenance-intensive sites.
• Cable jacket compatibility: Match overmold and boot materials to expected chemical exposures.
• Grounding and bonding: For shielded copper, ensure all pathway hardware, connector bodies, and rack bonding comply with ANSI/TIA-607 and the applicable requirements of NFPA 70 (NEC).
• Labeling: Even in harsh environments, ANSI/TIA-606 administration and labeling requirements apply. Use labeling materials rated for the environment—standard paper labels fail rapidly in heat, moisture, and UV.
• Pathways: Connector selection is inseparable from pathway design. ANSI/TIA-569 governs pathways and spaces; in harsh environments, liquid-tight conduit and appropriate cable tray materials are as important as the connector itself.

The Cost of Getting It Wrong

A failed connector in a data center is an inconvenience. A failed connector on a wind turbine nacelle, an offshore platform, or a transit control system is an operational event with significant safety and financial consequences. The incremental cost difference between a standard commercial connector and a properly specified industrial or hardened connector is small relative to the cost of an unplanned site visit, a crane lift, or a network outage that cascades into process downtime.

Specify for the environment the connector will actually live in—not the environment you wish it lived in. If you are uncertain about the right product for a specific application, Heather Technologies' technical team can assist with specification review and product selection across our full line of harsh-environment connectivity solutions.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
