Hot and Cold Aisle Containment: A Practical Primer

Why Aisle Containment Matters More Than Ever

If you've spent any time on a data center floor, you've probably seen the problem firsthand: cold supply air from raised-floor tiles or precision cooling units mixing freely with hot exhaust air rolling off the backs of servers. That mixing—sometimes called "hot aisle/cold aisle bypass" or simply recirculation—is one of the most persistent and costly inefficiencies in data center cooling. It forces cooling equipment to work harder, drives up power usage effectiveness (PUE), and can push IT inlet temperatures dangerously beyond recommended ranges.

Aisle containment is the architectural answer. Done correctly, it separates the supply air path from the exhaust air path at the row level, ensuring that cool air reaches IT equipment inlets before it has any opportunity to mix with hot exhaust. The result is more predictable thermal management, better cooling efficiency, and a foundation that scales gracefully as rack densities climb.

As deployments of AI inference and GPU-dense compute continue to push rack power densities well beyond traditional thresholds—some configurations now exceeding 60 kW per rack—the engineering discipline around containment has become not just a best practice but a practical necessity.

The Two Core Strategies: Cold Aisle vs. Hot Aisle Containment

Cold Aisle Containment (CAC)

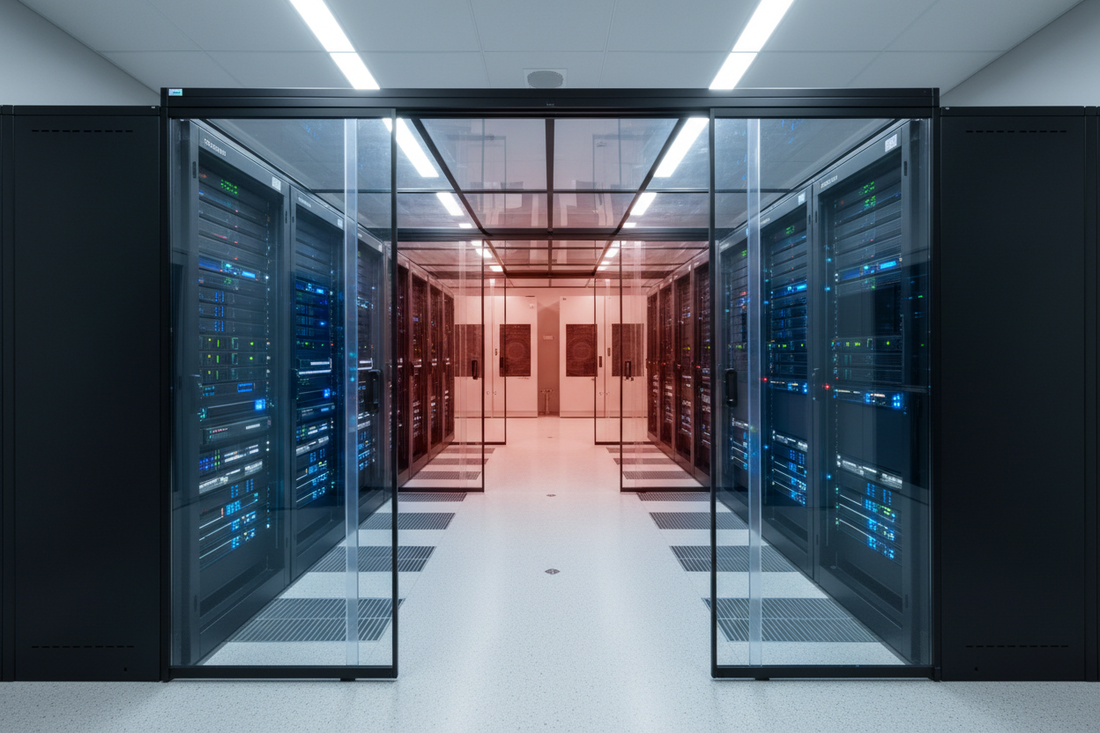

Cold aisle containment encloses the cold aisle itself, typically with overhead panels or canopies and end-of-row doors. Supply air is directed into this enclosed zone, and IT equipment draws from that contained cool reservoir. The surrounding room and hot aisles operate at elevated temperatures, but that is acceptable because humans rarely need to work in the hot aisle during normal operations.

CAC is often the easier retrofit because it requires less structural modification to existing ceilings and plenum spaces. It is particularly well suited to raised-floor environments where perforated tiles deliver supply air directly into the contained cold aisle. One practical consideration: the enclosed cold aisle can feel confined for technicians performing maintenance, so aisle width and emergency egress planning deserve attention during design.

Hot Aisle Containment (HAC)

Hot aisle containment takes the opposite approach: the hot aisle is enclosed, and exhaust air is captured and ducted or returned directly to the cooling units. The rest of the room remains at or near supply air temperature, which is generally more comfortable for personnel and can simplify some fire suppression and detection strategies.

HAC tends to be more thermally efficient in many configurations because the captured hot exhaust represents a high-temperature, concentrated return stream that cooling units can process more effectively. It also integrates naturally with overhead return plenums and is the preferred strategy in many newer greenfield facilities. The trade-off is that overhead structures—chimneys, suspended ceilings, or dedicated return ductwork—add construction complexity and cost.

Standards and Guidelines That Frame the Design

Several industry standards and guidelines directly inform aisle containment design decisions.

• ASHRAE TC 9.9 publishes thermal guidelines specifically for data center environments. The recommended IT equipment inlet temperature range of approximately 18–27°C (A1/A2 envelope) is a foundational target that containment systems are designed to reliably achieve and maintain. Without containment, recirculation can drive localized hot spots well above this range even when the average room temperature appears acceptable.
• ANSI/TIA-942 addresses data center infrastructure comprehensively, including power distribution, cooling architecture, and redundancy ratings. Its framework for Tier-equivalent classifications (aligned conceptually with Uptime Institute methodology) establishes the reliability expectations that cooling topology—including containment—must support.
• Uptime Institute Tier Standards define concurrently maintainable infrastructure (Tier III) and fault-tolerant infrastructure (Tier IV). Containment design must account for maintenance access: end-of-row doors must open freely, and containment structures must not impede the ability to isolate and service cooling paths without interrupting IT operations.
• NFPA 75 addresses the protection of IT equipment and is relevant when evaluating how containment structures interact with fire suppression system coverage and airflow dynamics within an enclosed aisle. Containment can affect nozzle coverage patterns and agent distribution for clean-agent systems, so suppression engineers need to be part of the conversation early.
• NFPA 2001 governs clean-agent fire suppression systems (including Novec 1230 / FK-5-1-12 systems commonly specified in data centers). When aisles are enclosed, the volume calculations and discharge nozzle placement for total flooding applications must be revisited—containment structures change the protected volume geometry.

Implementation Considerations: Getting the Details Right

Blanking Panels and Airflow Discipline

Containment is only as effective as the air management discipline inside the rack. Unfilled rack units act as bypass paths that allow hot exhaust air to recirculate through the front of the rack. Every unused rack unit should be fitted with blanking panels before—or simultaneously with—deploying containment. This is a low-cost, high-return measure that many organizations overlook.

Cable Penetrations and Sealing

Cables entering and exiting the containment structure represent potential bypass paths. Brush strips, grommets, or flexible gasket solutions at overhead cable trays and under-floor penetrations maintain the pressure differential that makes containment work. This is especially important in retrofits where legacy cable pathways were not designed with containment in mind.

Pressure Management and Economizer Integration

In contained environments, precision air conditioning units or computer room air handlers (CRAHs) must be sized and controlled to maintain slight positive pressure in the cold aisle (for CAC) or slight negative pressure in the hot aisle (for HAC). Variable-speed EC fans and modern building management system (BMS) integration allow dynamic pressure control as IT loads fluctuate—a capability that pays dividends in facilities running mixed workloads across the day.

High-Density Racks and Supplemental Liquid Cooling

At rack power densities approaching or exceeding 30–40 kW, air-based containment alone may be insufficient. Rear-door heat exchangers, direct liquid cooling (DLC) to chip packages, or coolant distribution units (CDUs) using propylene-glycol/water circuits become necessary complements. In these configurations, containment still plays a role—primarily in managing the residual sensible heat that liquid systems do not capture—but the thermal design must be evaluated holistically rather than treating air and liquid cooling as independent systems.

Fire and Life Safety Integration

As noted above, containment structures affect clean-agent suppression coverage and smoke detection geometry. Very Early Smoke Detection Apparatus (VESDA) aspirating systems are well suited to contained aisle environments because sampling ports can be placed precisely within the enclosed volume. Coordinate with your Authority Having Jurisdiction (AHJ) and suppression system designer before finalizing containment geometry.

Measuring Success: PUE as a Baseline Metric

PUE—total facility power divided by IT power—is the most widely used efficiency metric for data centers. Effective aisle containment is one of the most impactful single investments an operator can make to reduce PUE. By eliminating recirculation, cooling units can operate at higher supply temperatures and reduced fan speeds, both of which translate directly into lower cooling overhead. Facilities targeting a PUE of approximately 1.25 or better in moderate climates typically rely on containment as a foundational element of that efficiency strategy.

Closing Thoughts

Hot and cold aisle containment is not a novel concept, but its importance has grown substantially as rack densities increase and efficiency expectations tighten. Whether you are retrofitting an existing facility or designing a new one from the ground up, containment deserves to be addressed early in the design process—not bolted on as an afterthought. Engage your mechanical engineer, fire protection engineer, and structured cabling designer together from the outset. The interaction between cooling airflow, cable pathways, fire suppression coverage, and physical access is too complex to optimize in isolation.
