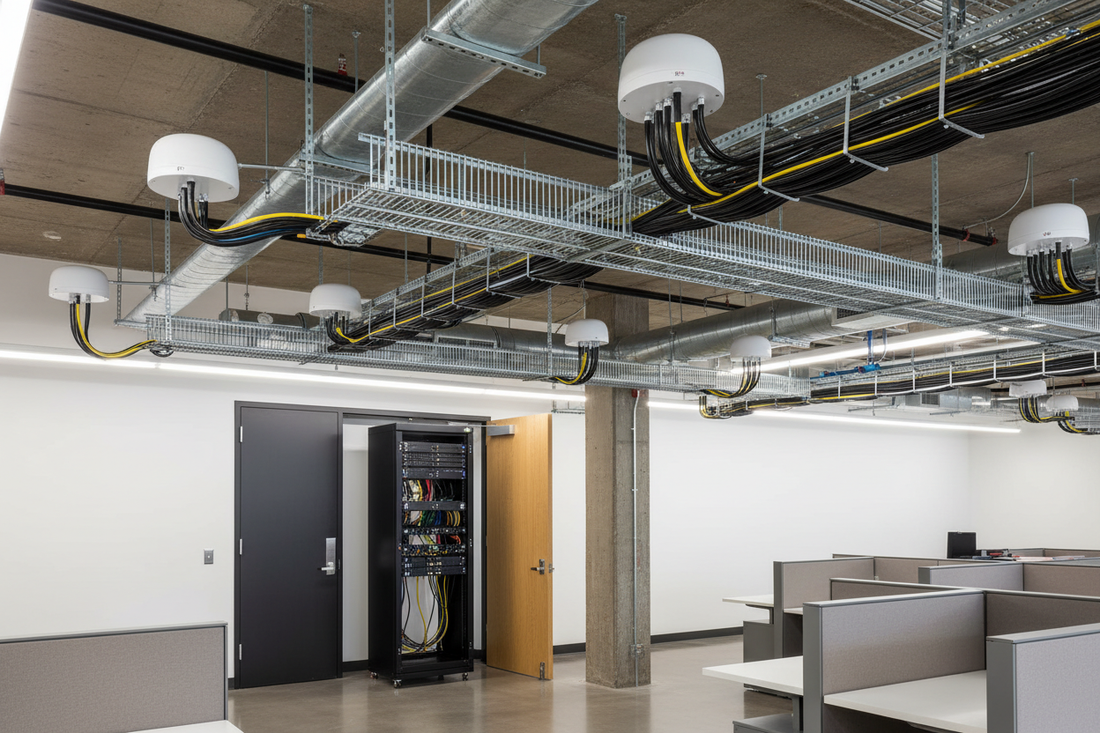

In-Building Wireless & DAS: Cabling the Connected Building
Why the Cable Plant Is the Foundation of Every Wireless Experience
The irony of modern wireless is that it depends entirely on wired infrastructure. Every access point, remote radio head (RRH), and antenna node in a Distributed Antenna System (DAS) traces back to a cable—fiber, copper, or both. When an in-building wireless project underperforms, the root cause is more often the passive infrastructure than the active radio equipment. As Heather Technologies works with systems integrators, wireless carriers, and enterprise IT teams every day, we see this pattern repeatedly. Getting the cabling right from the start is not optional; it is the project.
This article walks through the cabling considerations specific to In-Building Wireless (IBW) and DAS deployments, grounded in the standards frameworks that govern our industry.
Understanding the Two Deployment Models
Enterprise Wi-Fi (IBW)
Enterprise wireless LAN infrastructure—IEEE 802.11 access points distributed across floors and campuses—is the most common IBW environment. Modern Wi-Fi 6 and Wi-Fi 6E access points are power-hungry, multi-radio devices. That power comes from the cable. IEEE 802.3bt (PoE Type 3 and Type 4) delivers up to 60 W and 90 W respectively at the power-sourcing equipment port, making the selection and installation quality of horizontal copper cable a critical design decision, not an afterthought.
Distributed Antenna Systems (DAS)
DAS—whether passive coaxial, active fiber-fed, or hybrid—extends cellular and public-safety radio signals throughout a building. Active and hybrid DAS architectures rely on fiber runs from a headend or base transceiver station hotel to remote units distributed across the structure. Passive DAS uses coaxial and splitter networks. Each model has distinct cabling demands, but both live inside the same pathways and spaces that serve the rest of the building's structured cabling system.
Fiber: The Backbone of Active and Hybrid DAS
Optical fiber is the transport medium of choice for the headend-to-remote-unit links in active DAS, as well as for the backbone segments feeding wireless controllers and aggregation switches. ANSI/TIA-568.3-D governs optical fiber cabling and components for premises environments, defining performance requirements for multimode grades OM1 through OM5 and single-mode grades OS1 and OS2.
Multimode vs. Single-Mode for IBW/DAS
For intra-building backbone runs—from main distribution area (MDA) to intermediate distribution areas (IDA) or telecommunications rooms (TR)—OM4 or OM5 laser-optimized multimode fiber is typically sufficient and offers cost advantages at the connector and transceiver level. OM5 wideband multimode fiber, as specified in ANSI/TIA-568.3-D, is engineered to support shortwave wavelength-division multiplexing (SW-SWDM) and provides a forward-looking investment for high-density campuses.
For inter-building campus backbones or large-footprint facilities where run lengths exceed multimode distance capabilities at a given data rate, OS2 single-mode fiber—characterized by ITU-T G.652 or the bend-insensitive G.657 variants—is the appropriate choice. G.657 bend-insensitive single-mode fiber is especially useful in the constrained pathways common in retrofit DAS installations, where tight bends around building structure are unavoidable.
Fiber Color Coding
Consistent color coding throughout the plant—buffer tubes, connectors, and patch cords—is essential for maintainability in complex DAS headend rooms. TIA-598-D defines the fiber identification color code used across the industry and should be specified in procurement documents and installer scope of work.
Copper: PoE Delivery to Wireless Access Points
Horizontal copper cabling to Wi-Fi access points is governed by ANSI/TIA-568.2-D, which specifies balanced twisted-pair copper channel performance for Category 5e, 6, 6A, and 8. For IBW deployments today, Category 6A is the recommended minimum for new construction and major renovation. There are two reasons this matters specifically for wireless infrastructure:
- PoE thermal performance: IEEE 802.3bt high-power PoE generates measurable heat in bundled cable runs. Category 6A's larger conductor gauge and superior alien crosstalk performance contribute to better thermal management in high-density cable bundles compared to Category 6.
- Future-readiness: Category 6A supports 10GBASE-T per IEEE 802.3 to 100 meters, accommodating multi-gigabit uplinks as Wi-Fi throughput demands scale with each 802.11 generation.
Every copper channel—from the patch panel in the TR to the access point jack or direct-attach point—must be tested and certified to the appropriate ANSI/TIA-568.2-D channel limits. Field certification is not bureaucratic box-checking; it is the only way to confirm that the passive infrastructure will not be the bottleneck when the active equipment goes live.
Pathways, Spaces, and the DAS Headend Room
ANSI/TIA-569 governs telecommunications pathways and spaces—the conduit, cable trays, sleeves, and equipment rooms that physically house and route cabling. DAS installations are notorious for being treated as an overlay afterthought, with antenna feedlines and fiber routed informally after construction is complete. This approach degrades maintainability and often violates the separation and fill-ratio requirements of TIA-569.
The DAS headend—where base station equipment, fiber interconnects, and power systems concentrate—should be treated with the same rigor as a telecommunications room. Space planning, conduit stub-outs, and vertical pathway access all need to be incorporated into the building design phase, not discovered during installation.
Bonding, Grounding, and Labeling
ANSI/TIA-607 addresses bonding and grounding for telecommunications systems. In DAS environments, improper or missing grounding of antenna systems, coaxial shielding, and active equipment chassis is one of the most common causes of interference and equipment damage. Every rack, equipment enclosure, and shielded cable termination in the DAS headend must be bonded to the telecommunications bonding backbone (TBB) per TIA-607 requirements.
Administration of a complex IBW/DAS cable plant—where a single building may host hundreds of fiber and copper terminations across dozens of remote unit locations—requires disciplined labeling. ANSI/TIA-606 provides the administration standard for telecommunications infrastructure and defines identifier formats, record requirements, and link/circuit documentation. A well-administered cable plant dramatically reduces truck rolls and mean time to repair when remote units go offline.
Government and Procurement Considerations
For federal facilities, VA hospitals, military installations, and other government-funded projects, cable and hardware procurement must address Buy American Act (BAA) and Trade Agreements Act (TAA) compliance. These are statutory and regulatory requirements—not TIA standards—and they govern where products are manufactured or substantially transformed. Heather Technologies, as a Women-Owned Small Business (WBE/EDWOSB), is experienced in navigating BAA/TAA requirements and can assist procurement teams in identifying compliant product lines across fiber, copper, and DAS passive infrastructure categories.
Design Starts with the Cable Plant
In-building wireless is a systems problem, and the cable plant is the system's foundation. Selecting the right fiber grade per ANSI/TIA-568.3-D, specifying Category 6A copper per ANSI/TIA-568.2-D for PoE-powered access points, enforcing pathway discipline per ANSI/TIA-569, grounding per ANSI/TIA-607, and administering the plant per ANSI/TIA-606—these are not independent line items. They are an integrated discipline. When all of them are executed correctly, the wireless layer on top performs as designed. When any of them is skipped or shortcut, the wireless team spends the next several years chasing ghosts.
Heather Technologies partners with integrators and end users at the design stage to ensure the right products, the right standards compliance, and the right procurement pathway come together before the first conduit is pulled. Contact our team to discuss your next IBW or DAS infrastructure project.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
