Innerduct and Microduct: Organizing High-Count Fiber

Learn how innerduct and microduct systems bring order, protection, and future-readiness to high-count fiber deployments in data centers and campus networks.

By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
5 min read

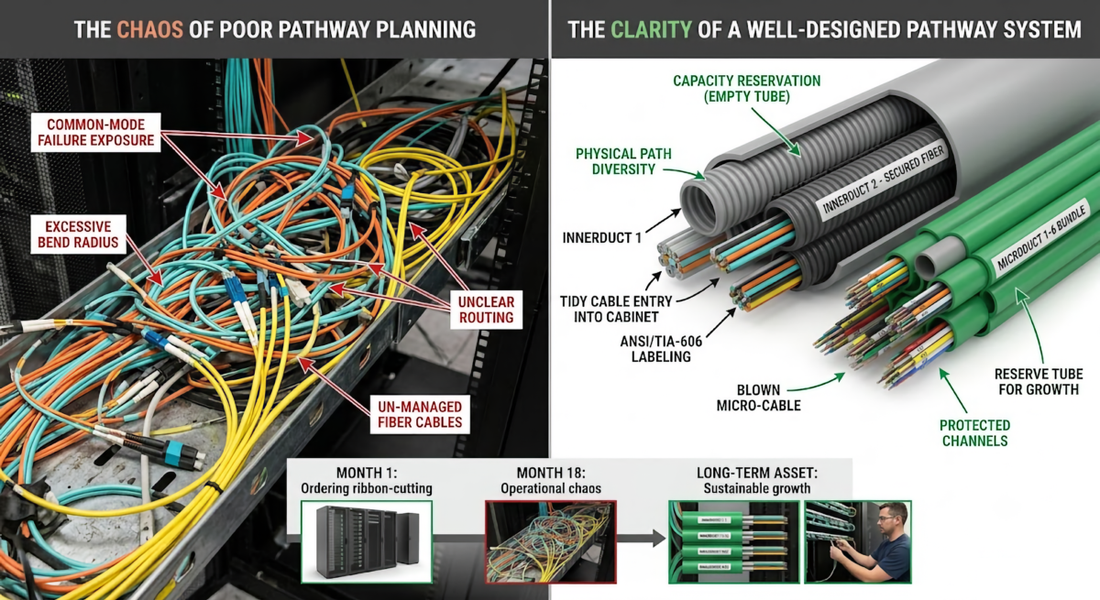

Innerduct and Microduct: Organizing High-Count Fiber

Why Fiber Pathway Management Matters More Than Ever

Modern networks are hungry for fiber. Whether you are pulling hundreds of strands through a campus backbone or threading thousands of fibers through a hyperscale data center, the conduit and sub-conduit system surrounding those cables is not an afterthought — it is a foundational design decision. Innerduct and microduct solutions determine how well you can install, protect, expand, and maintain your optical-fiber infrastructure for years after the initial deployment.

As a practitioner holding the RCDD credential, I have watched facilities go from orderly at ribbon-cutting to chaotic within eighteen months simply because the pathway architecture was not planned for growth. This article walks through the core considerations for innerduct and microduct selection, referencing applicable standards and real-world design practice.

Defining the Terms

Innerduct

Innerduct is a sub-conduit placed inside a larger conduit to subdivide its interior into discrete, organized channels. Typically corrugated or smooth-wall HDPE, it allows multiple cable systems — or multiple owners — to share a single conduit run while keeping each pathway physically separated and independently accessible. Common profiles include round, figure-eight, and figure-nine multi-bore configurations.

Microduct

Microduct takes the concept further, using very small-diameter tubes — often ranging from roughly 5 mm to 16 mm outer diameter — designed for air-blown or water-jetting of micro-cables and micro-bundles. Because the fiber is installed after the duct is in place, microduct separates civil construction from cable procurement, which is a significant scheduling and budget advantage in large projects.

Standards Foundation

Any discussion of fiber pathway organization begins with ANSI/TIA-568.3-D, the governing standard for optical-fiber cabling and components. It defines recognized cable types, connector interfaces (LC, SC, MPO/MTP), performance categories for multimode fiber (OM3, OM4, OM5 — all laser-optimized 50/125 µm) and singlemode fiber (OS1/OS2, aligned with ITU-T G.652 and G.657 fiber types), and the testing requirements that ensure installed performance meets design intent. While 568.3-D does not specify the duct itself, it establishes the cable types your pathway system must accommodate and protect.

ANSI/TIA-569 is the more directly applicable document for pathway design. It addresses pathways and spaces — conduit systems, cable trays, sleeves, raceways, and the spatial requirements for telecommunications infrastructure. When sizing innerduct fill, planning pull-point spacing, or laying out underground duct banks, TIA-569 provides the design framework.

ANSI/TIA-942 governs data-center infrastructure and addresses pathway routing, redundancy, and the physical separation of diverse cable routes — principles that directly influence how innerduct systems must be arranged in a data-center environment to support Tier-level requirements.

For fire-safety ratings, the NEC/NFPA 70 Chapter 3 wiring methods and Article 800 series apply. Fiber optic cables installed in air-handling spaces must carry a CMP (plenum) rating; riser applications require CMR. The jacket rating of the micro-cable or fiber cable inside a duct must match the space classification — the duct itself does not confer a fire rating to the cable within it.

Labeling every innerduct and microduct segment is a requirement under ANSI/TIA-606, which governs administration and labeling of telecommunications infrastructure. Each tube, port, and pathway identifier should be documented in your records system so that future technicians can locate, trace, and modify circuits without guesswork.

Design Considerations for High-Count Fiber

Fill Ratio and Bend Radius

The cardinal rule of any conduit system is respecting fill ratio and minimum bend radius. For innerduct inside a larger conduit, typical design practice targets a fill ratio that leaves adequate space for pulling tension management and future additions — consult TIA-569 for specific guidance. For microduct, air-blown installation largely eliminates pulling tension as a concern, but the duct routing still must honor the minimum bend radius specified for the micro-cable type in use, which flows from the fiber cable manufacturer's specifications and the performance requirements in ANSI/TIA-568.3-D.

Sealed vs. Ventilated Systems

Underground and direct-buried microduct systems typically use end-seals and branch-point seals to prevent water ingress and maintain positive-pressure integrity for future air-blown installations. Indoor systems in data centers may use open-end designs. Either way, consistent sealing practice is part of a well-documented pathway system under TIA-606 administration.

Separation for Diversity

ANSI/TIA-942 and good engineering practice both emphasize physical separation of redundant fiber paths. Innerduct provides a clean mechanism: diverse routes travel in the same conduit bundle physically separated by dedicated tubes, reducing exposure to common-mode failures such as a single backhoe strike. In Tier III and Tier IV data-center designs, where concurrent maintainability is a core requirement, this separation discipline is not optional.

Planning for Future Capacity

One of the most compelling arguments for microduct is capacity reservation. Installing a four- or six-way microduct bundle during initial civil work costs relatively little compared to reopening trenches or re-threading conduit later. When your OM4 or OM5 multimode backbone eventually gives way to a higher-count or higher-performance upgrade, the tube is already waiting. The same logic applies to singlemode OS2 campus backbones, where wavelength-division multiplexing demands are difficult to predict years in advance.

Innerduct vs. Microduct: A Quick Comparison

Attribute Innerduct Microduct
Typical Installation Method Pulled into existing conduit; cable pulled through Civil installation first; cable blown/jetted later
Cable Diameter Range Standard-diameter fiber cables Micro-cables and micro-bundles
Future Upgrade Flexibility Moderate — requires re-pulling High — new cable blown through existing tube
Primary Standards Reference ANSI/TIA-569, NFPA 70 ANSI/TIA-569, NFPA 70, manufacturer specs
Best Fit Retrofits, mixed-cable environments New construction, high-density campuses, data centers

Labeling, Documentation, and Long-Term Maintenance

No pathway system survives contact with organizational change without thorough documentation. ANSI/TIA-606 establishes identifiers for pathways, spaces, and cables that create a chain of traceability from the fiber strand back to its physical route. In a high-count fiber environment with dozens of innerduct tubes or hundreds of microduct ports, color-coding conventions, end-to-end tube labeling, and as-built records stored in a structured format are the difference between a fifteen-minute restoration and a four-hour troubleshooting session.

Practical Takeaways

  • Specify innerduct or microduct at the design phase — retrofitting pathway organization is always more expensive than planning for it upfront.
  • Align cable jacket ratings (CMP, CMR) with space classifications per NFPA 70, regardless of the duct material surrounding them.
  • Reference ANSI/TIA-568.3-D for fiber type and connector selection; reference ANSI/TIA-569 for the pathway design that carries those cables.
  • Use physical tube separation in conduit bundles to satisfy ANSI/TIA-942 diversity requirements in data-center environments.
  • Reserve empty microduct tubes during new construction — they are your least expensive insurance policy against future capacity demands.
  • Implement ANSI/TIA-606 labeling from day one; document every tube, port, and pathway identifier in a maintained records system.

Conclusion

Innerduct and microduct are not glamorous line items, but they are the skeleton that holds high-count fiber infrastructure together over its operational life. Selecting the right system, sizing it correctly, maintaining proper fill ratios and bend radii, and documenting every segment against the standards framework — TIA-568.3-D, TIA-569, TIA-942, TIA-606, and NFPA 70 — transforms what could be a tangled liability into an organized, expandable asset. At Heather Technologies, we work with designers and installers to match the right pathway products to each project's specific requirements. Reach out to our team to discuss your next high-count fiber deployment.




About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
