LC, SC, or MPO? Choosing Fiber Connectors for Density and Reach

Selecting the right fiber connector—LC, SC, or MPO—depends on your density requirements, transmission distance, fiber type, and how the standards that govern structured cabling guide those decisions.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
5 min read

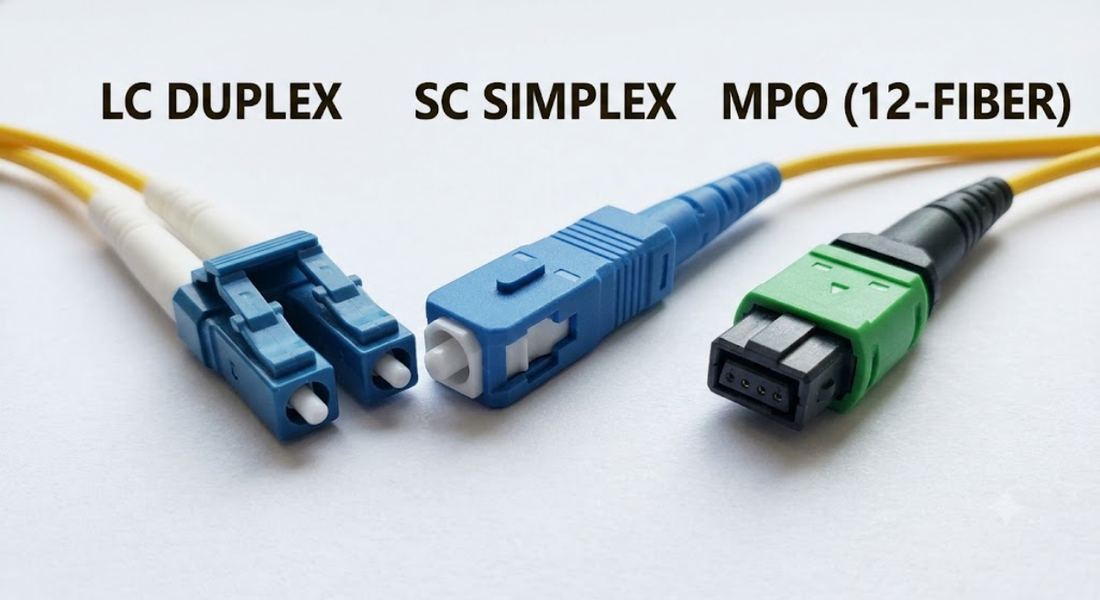

LC, SC, or MPO? Choosing Fiber Connectors for Density and Reach

Why Connector Choice Matters More Than Ever

Network infrastructure decisions that once felt straightforward have grown considerably more complex. Bandwidth demands are climbing, rack space is shrinking, and the cabling plant you install today needs to serve applications that may not yet be fully defined. At the physical layer, one of the most consequential choices you will make is which fiber connector format to deploy. LC, SC, and MPO each occupy a distinct role in a well-engineered fiber infrastructure, and understanding those roles—grounded in the standards that govern structured cabling—keeps you from making expensive mistakes.

As an RCDD, I work through this decision regularly with enterprise customers, data center operators, and government end users. Here is the framework I use.

The Standards Foundation: ANSI/TIA-568.3-D

Any serious conversation about fiber connectors starts with ANSI/TIA-568.3-D, the governing standard for optical fiber cabling and components in commercial premises. It establishes performance requirements for multimode fiber grades OM1 through OM5 and single-mode grades OS1 and OS2, specifies insertion-loss and return-loss limits for mated connector pairs, and references acceptable connector types for compliant installations. Your connector selection must align with the fiber type you are deploying, and both must satisfy the channel performance budgets that 568.3-D defines.

For data center infrastructure, ANSI/TIA-942 layers additional guidance on top of 568.3-D, addressing topology, redundancy, and the high-density cabling environments where MPO systems shine. International projects should also reference ISO/IEC 11801, which harmonizes with TIA fiber grades and connector performance classes for global deployments.

SC Connectors: The Established Workhorse

The SC (Subscriber Connector or Standard Connector, depending on your preferred etymology) has been a recognized connector type in TIA structured-cabling standards for decades. Its push-pull latching mechanism and relatively large 2.5 mm ferrule make it durable, easy to terminate in the field, and straightforward to inspect and clean—qualities that matter in outside-plant vaults, campus backbone runs, and environments where technicians are working with gloves or in awkward spaces.

Where SC connectors face pressure is in high-density applications. A duplex SC pair occupies noticeably more panel real estate than an LC pair. In a fully populated patch panel, that difference adds up quickly. If your design prioritizes ease of field termination and long-reach single-mode runs over port density, SC remains a sound choice. For OS2 single-mode infrastructure using ITU-T G.652 or bend-insensitive G.657 fiber, SC connectors perform well within the return-loss thresholds that ANSI/TIA-568.3-D requires.

LC Connectors: The Density Sweet Spot for Enterprise and Data Center

The LC (Lucent Connector) uses a 1.25 mm ferrule and a latch mechanism that allows it to fit in roughly half the panel space of an SC. That density advantage has made LC the dominant connector format for enterprise horizontal and backbone fiber, structured cabling patch panels, and active equipment SFP and SFP+ ports across essentially all current switch and router platforms.

LC duplex connectors are appropriate across the full range of fiber types recognized by ANSI/TIA-568.3-D—OM1 through OM5 multimode and OS1/OS2 single-mode—provided that connector insertion loss and return loss meet the standard's channel budget requirements. For high-bandwidth, short-reach multimode applications such as 10GbE or 25GbE over OM3 or OM4, LC is virtually universal. For longer single-mode runs using G.652 or G.657 fiber, LC delivers equivalent optical performance to SC in a smaller footprint.

One practical consideration: LC's smaller latch is more susceptible to damage in high-traffic patching environments if technicians are not careful. Uniboot LC designs, which house both transmit and receive fibers in a single connector body, help manage cable congestion behind panels in dense deployments.

MPO Connectors: Parallel Optics and Ultra-High Density

The MPO (Multi-fiber Push-On) connector is a different category entirely. Rather than terminating a single fiber pair, a standard MPO connector terminates a ribbon or round cable containing multiple fibers—commonly 12 or 24—in a single ferrule. This makes MPO the enabling technology for parallel optical transmission and for pre-terminated trunk systems that dramatically accelerate data center deployment timelines.

Within ANSI/TIA-568.3-D, OM3, OM4, and OM5 multimode fibers are the grades most commonly associated with parallel-optic MPO applications, though MPO connectors are also used in single-mode infrastructure. OM5 wideband multimode fiber, standardized in 568.3-D, is specifically designed to support shortwave wavelength division multiplexing (SWDM), which allows multiple wavelengths to be transmitted simultaneously—a capability that extends the reach of parallel-optic architectures. ANSI/TIA-942 recognizes pre-terminated MPO trunk systems as a preferred approach for data center main distribution area (MDA) to horizontal distribution area (HDA) backbone cabling because of the speed and consistency advantages over field termination.

MPO systems do introduce complexity. Polarity management—ensuring that the transmit fiber on one end is connected to the receive fiber on the other—must be planned deliberately. TIA recognizes multiple polarity methods, and consistency across the entire channel is non-negotiable. Fiber color coding per TIA-598-D is an important tool in managing polarity and fiber-type identification throughout an MPO infrastructure. Ferrule cleanliness is also more critical with MPO connectors than with simplex or duplex formats; a single contaminated fiber in a 12-fiber MPO can degrade the entire channel.

Matching Connector to Application: A Practical Decision Matrix

  • Campus backbone, long single-mode runs: LC or SC with OS2 (G.652/G.657) fiber satisfying ANSI/TIA-568.3-D channel budgets. LC preferred where panel density matters; SC acceptable where field-termination simplicity is the priority.
  • Enterprise horizontal and riser, moderate density: LC duplex on OM3 or OM4 multimode is the de facto standard for current 10G and emerging 25G applications.
  • Data center backbone trunks, high port density: MPO pre-terminated trunks on OM4 or OM5 multimode, or single-mode OS2, aligned with ANSI/TIA-942 topology recommendations.
  • Data center edge, breakout to active equipment: MPO-to-LC breakout cassettes or harnesses, enabling MPO backbone density while interfacing with LC-based SFP ports on switches and servers.
  • Government and federally funded projects: Verify Buy American/TAA compliance requirements for all passive components; these are procurement law and policy obligations, not TIA standards.

Administration and Labeling: Don't Overlook ANSI/TIA-606

Regardless of connector type, a fiber infrastructure is only as manageable as its documentation. ANSI/TIA-606 provides the administration and labeling framework that makes a complex MPO or mixed LC/SC plant maintainable over its full lifecycle. In my experience, teams that invest in proper 606-compliant labeling—especially for MPO polarity and fiber-type identification—recover that investment many times over during moves, adds, and changes.

The Bottom Line

There is no universally superior fiber connector. LC wins on density and versatility for most enterprise and data center applications today. SC remains relevant where field-termination ease and long-reach single-mode performance are the primary drivers. MPO is essential for high-density data center backbones and parallel-optic transmission. The key is matching connector format to fiber type, application bandwidth, channel length, and density requirements—all within the performance framework that ANSI/TIA-568.3-D, ANSI/TIA-942, and ISO/IEC 11801 establish.

At Heather Technologies, we help our customers navigate exactly these decisions, sourcing compliant, TAA-eligible fiber connectivity solutions that align with both technical standards and procurement requirements. If you are designing a new cabling plant or evaluating an upgrade path, reach out—we are glad to work through the specifics with you.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
