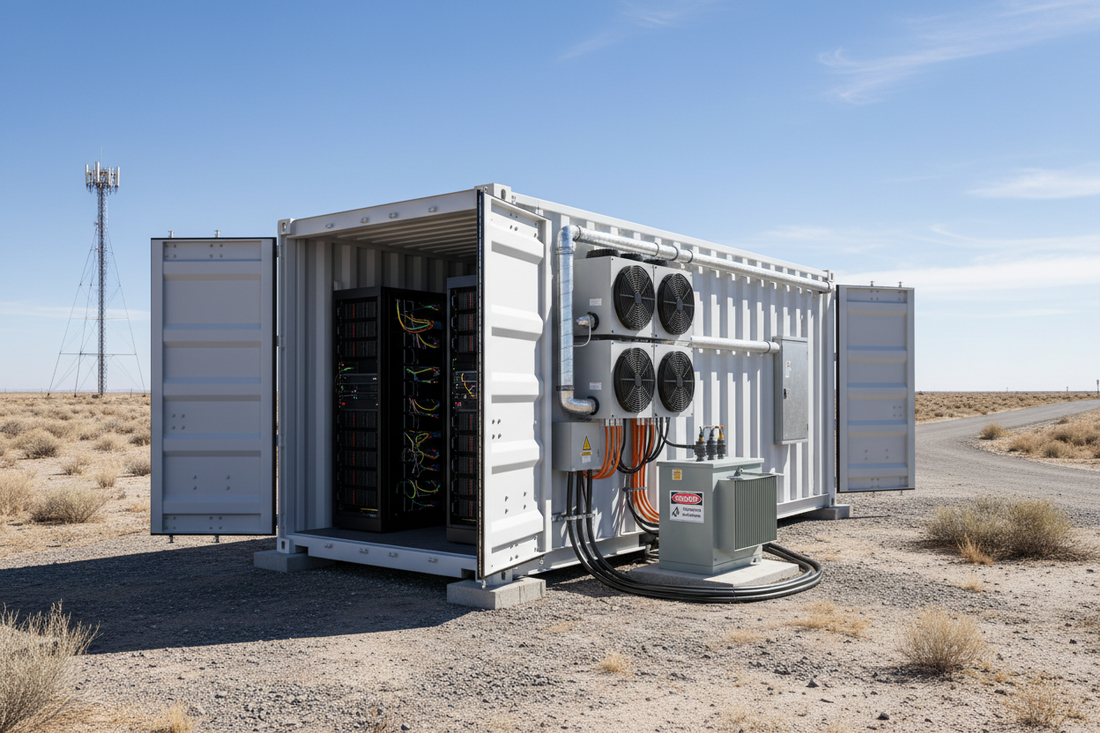

Modular Containerized Data Centers at the Edge

Bringing the Data Center to the Workload: The Case for Edge Containerization

The explosive growth of AI inference, real-time analytics, autonomous systems, and low-latency applications has exposed a fundamental limitation of centralized cloud and hyperscale architectures: physics. When milliseconds matter—on a factory floor, at a military forward operating base, in a remote energy facility, or along a smart-highway corridor—sending data hundreds of miles to a core data center and back is simply not viable. Modular, containerized data centers deployed at the edge solve this problem by placing compute, storage, and networking infrastructure exactly where it is needed, without sacrificing the engineering rigor we expect from a purpose-built facility.

At Heather Technologies, we work with organizations across industrial, defense, telecommunications, and enterprise sectors who are navigating this shift. This article outlines the key design considerations—power, cooling, fire protection, and standards compliance—that engineers and facilities decision-makers must understand when specifying a containerized edge solution.

What Is a Modular Containerized Data Center?

A modular containerized data center (MCDC) is a self-contained, factory-built infrastructure unit—typically housed within an ISO-standard shipping container or a purpose-designed prefabricated enclosure—that integrates IT racks, power distribution, cooling, fire suppression, physical security, and monitoring into a single deployable module. Units can be deployed individually or aggregated into scalable clusters. Deployment timelines that once required 18–36 months for a traditional build can compress to weeks or a few months for a containerized solution, depending on site readiness.

For AI workloads specifically, the density demands are severe. A single GPU rack in an edge AI deployment can exceed 60 kW of IT load—a figure that renders conventional raised-floor, air-cooled data center design obsolete for this application. A representative 500 kW IT-load containerized edge AI facility must therefore be engineered from first principles around high-density power and hybrid cooling.

Power Architecture: Reliability and Density at the Edge

Primary Power Distribution

A 500 kW IT edge deployment typically operates at 480V three-phase, with a facility-level power envelope in the range of approximately 625 kVA to account for UPS, cooling, and overhead losses. This voltage class reduces conductor sizing, minimizes losses over the often-extended site cable runs common at edge locations, and aligns with standard industrial power infrastructure. All electrical installation, grounding, and bonding work must conform to NFPA 70 (NEC), which governs electrical installation requirements including grounding conductor sizing, equipment grounding, and surge protection device (SPD) requirements.

UPS and Energy Storage

An online double-conversion UPS topology is the appropriate choice for edge AI workloads, eliminating transfer-time gaps that could disrupt GPU compute jobs. An N+1 configuration—for example, two 300 kVA units operating in parallel redundancy—provides concurrent maintainability at the UPS level consistent with the intent of Uptime Institute Tier III (concurrently maintainable infrastructure). Lithium-ion battery technology is increasingly preferred for containerized deployments due to its higher energy density, reduced footprint, longer cycle life, and superior performance across the wider temperature ranges encountered at edge sites.

Many edge sites integrate utility power with on-site solar photovoltaic generation and a battery energy storage system (BESS). An automatic transfer switch (ATS) manages source arbitration across utility, solar, and BESS inputs, maintaining seamless power continuity. Intelligent rack PDUs with 60A three-phase feeds, per-outlet metering, and dual A+B redundant feeds ensure visibility and fault isolation at the rack level. Surge protection devices (Type 1 and Type 2 SPDs) are installed at the service entrance and distribution panel per NFPA 70 requirements.

Electrical Safety

Arc-flash hazard analysis and appropriate PPE requirements must be established per NFPA 70E. At 480V, the available fault current and resulting incident energy levels in a containerized environment warrant careful engineering of protective device coordination and arc-flash boundaries, particularly given the compact physical layout.

Bonding and Grounding

A TN-S grounding scheme per ANSI/TIA-607 provides a clean, separated neutral and protective earth path critical for sensitive IT equipment, minimizing noise and ground-loop issues that are magnified in high-density GPU environments.

Cooling: Hybrid Liquid and Precision Air at High Density

No aspect of containerized edge AI design is more demanding—or more consequential—than thermal management. ASHRAE TC 9.9 thermal guidelines define recommended IT equipment inlet temperatures of approximately 18–27°C for conventional air-cooled equipment, but high-density GPU racks operating above 40–60 kW routinely challenge the upper limits of what air cooling alone can achieve economically.

Hybrid Liquid Cooling Architecture

A hybrid approach combining liquid cooling distribution with supplemental precision DX air conditioning is the practical design solution for 500 kW+ edge AI containers. A coolant distribution unit (CDU) circulating a propylene-glycol/water solution can handle approximately 350 kW of heat rejection, serving rear-door heat exchangers mounted on high-density GPU racks. These passive liquid rear-door units—supplemented by EC fans—can manage on the order of 80 kW per rack, enabling the 60+ kW/rack GPU densities required by modern AI accelerators without relying solely on forced air. Precision DX units maintain aisle-level conditions at approximately 22°C ±2°C and approximately 45% relative humidity, managing residual sensible and latent loads.

Free Cooling and Ambient Resilience

External dry coolers with adiabatic pre-cooling extend economizer hours by evaporatively pre-cooling inlet air, allowing fluid-side free cooling at ambient temperatures rated up to approximately 45°C. This is particularly important for edge sites in hot climates or exposed industrial environments where mechanical cooling operating hours directly drive energy cost.

Containment and PUE

Hot-aisle/cold-aisle containment within 42U equipment racks prevents hot and cold air mixing, maintaining predictable inlet temperatures and protecting the efficiency of the cooling system. A well-engineered containerized edge AI facility of this type can target a Power Usage Effectiveness (PUE) of approximately 1.25—meaning total facility power is approximately 1.25 times the IT load—a competitive figure relative to many legacy enterprise data centers. PUE is calculated as total facility power divided by IT equipment power.

Fire Protection: Clean Agent and Early Detection

Fire protection in a sealed, high-value containerized environment requires a suppression strategy that protects IT equipment without causing collateral water damage. Clean-agent systems using Novec 1230 (FK-5-1-12) are well suited to this application, governed by NFPA 2001 (clean-agent fire extinguishing systems). Early warning is provided by VESDA (Very Early Smoke Detection Apparatus) aspirating smoke detection systems, which sample air continuously and can detect combustion products at concentrations far below the threshold of conventional point detectors—critical for catching a smoldering GPU or power supply before it becomes a suppression event.

IT equipment protection requirements are addressed by NFPA 75, while overall electrical installation and protection requirements revert to NFPA 70. For deployments at telecommunications facilities, NFPA 76 provides relevant supplemental guidance.

Infrastructure Standards and Ratings

ANSI/TIA-942 provides the overarching data center infrastructure standard covering power, cooling, cabling, and redundancy classifications. Aligning an edge containerized design to TIA-942 rating criteria provides a consistent framework for evaluating redundancy, maintainability, and fault tolerance regardless of the unconventional form factor. IEEE standards govern UPS performance and power quality characterization, ensuring that the double-conversion systems specified deliver the harmonic distortion and voltage regulation characteristics that sensitive GPU compute loads require.

Site Considerations and Deployment

• Civil and structural: Container foundation, seismic restraint, wind loading, and access clearances must be engineered for the specific site and local jurisdiction.
• Connectivity: Diverse fiber entry paths and appropriate structured cabling or direct-attach interconnects within the container are essential for edge AI networking throughput.
• Security: Physical access control, CCTV, and intrusion detection are integral to containerized designs serving remote or semi-attended sites.
• Remote monitoring: DCIM or equivalent monitoring platforms provide continuous visibility into power, thermal, and environmental conditions at facilities where on-site staff may not be continuously present.

Conclusion

Modular, containerized data centers at the edge represent one of the most technically demanding and strategically important infrastructure categories in today's market. When engineered correctly—with 480V redundant power, hybrid liquid cooling, clean-agent fire suppression, proper grounding per ANSI/TIA-607, and alignment to ANSI/TIA-942 and Uptime Institute Tier criteria—these facilities deliver hyperscale-class reliability in a form factor that can be on-site and operational in a fraction of the time of traditional construction.

Heather Technologies partners with leading manufacturers and works alongside engineering teams to specify, source, and support modular edge data center deployments. Whether you are designing your first containerized edge node or scaling a distributed AI inference network, our team is ready to help you navigate product selection and standards compliance from concept through commissioning.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
