MPO connectors are everywhere in modern high-density fiber deployments—backbone trunks, data-center interconnects, parallel-optic breakouts. And yet polarity remains one of the most reliably frustrating topics I encounter in the field. People understand the concept well enough until they're standing in front of a rack at 2 a.m. with a link that won't come up. So let's settle this once and for all.

Why Polarity Matters in the First Place

Every duplex optical link needs a transmit fiber at one end to land on a receive port at the other. Get the crossing wrong and you have no light path—or worse, you have light going exactly where it shouldn't. With legacy SC or LC duplex connectors the fix is obvious: flip the connector. With a 12- or 24-fiber MPO trunk, you can't just flip one fiber without affecting eleven or twenty-three others. That's why ANSI/TIA-568.3-D—the standard governing optical-fiber cabling and components—defines three systematic polarity methods. Every MPO deployment should conform to one of them.

The Three Building Blocks: Cables and Patch Cords

Before diving into the methods, you need to understand two component types that the methods manipulate:

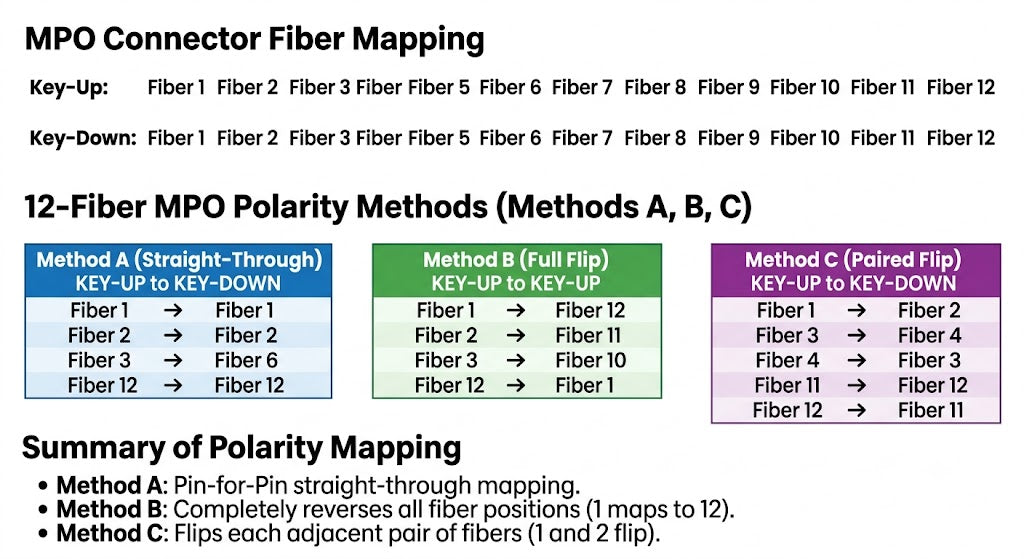

• Type A (Straight) trunk cable: Fiber 1 at the key-up end connects to Fiber 1 at the key-down end. The connector on one end is key-up; the connector on the other end is key-down. The fiber positions are preserved end to end.
• Type B (Reversed/Flipped) trunk cable: Both connectors are key-up (or both key-down), so fiber positions are mirrored—Fiber 1 lands on Fiber 12, Fiber 2 on Fiber 11, and so on through the array.
• Type C (Pairs-Reversed) trunk cable: Like Type A in overall orientation, but adjacent fiber pairs are swapped within the ribbon—Fiber 1 swaps with Fiber 2, Fiber 3 with Fiber 4, and so on.

Patch cords (the short breakout or duplex legs at each end) are similarly classified: a duplex patch cord can be a straight "A-to-A" or a crossed "A-to-B" configuration. Choosing the right patch-cord type is what makes each method complete a valid transmit-to-receive path.

Method A: The Straight Trunk, Crossed Patch Cord

Method A uses Type A (straight) trunk cables throughout the channel. The trunk itself does nothing to swap fibers. The polarity reversal—the Tx-to-Rx crossing—is accomplished at the equipment end by using a duplex A-to-B (crossed) patch cord on at least one end of each link.

Method A is intuitive to plan and label because every trunk is identical. The catch is inventory management: you must stock and track those crossed patch cords separately from straight ones, and an accidental substitution of a straight cord breaks the link without any obvious physical indicator. For environments with rigorous labeling practices—where ANSI/TIA-606 administration standards are followed closely—this is entirely manageable. For less disciplined environments, it's a latent trouble ticket.

Method B: The Flipped Trunk, Straight Patch Cord

Method B uses Type B (reversed/flipped) trunk cables. Because both connectors are key-up, plugging the trunk into a patch panel automatically mirrors the fiber array, achieving the Tx-to-Rx crossover in the trunk itself. That means you can use standard straight (A-to-A) duplex patch cords at both ends—the same cords used for copper or any other fiber application.

Many installers and data-center managers prefer Method B precisely because patch-cord simplicity reduces installation errors. Straight cords are ubiquitous; there is no special inventory to segregate. The trade-off is that Type B trunks must be installed with attention to orientation—swapping which end goes where defeats the polarity scheme entirely. Clear labeling of the "near" and "far" ends at pull time is essential.

Method C: The Pair-Swapped Trunk, Straight Patch Cord

Method C uses Type C trunk cables, in which adjacent fiber pairs are reversed within the ribbon (1↔2, 3↔4, etc.). Like Method B, Method C allows the use of straight duplex patch cords at both ends. The pair-swap in the trunk creates the transmit-to-receive crossing for each duplex pair without disturbing the overall fiber count or connector orientation.

Method C is less common in practice than A or B, but it appears in installations where the pair-swap architecture aligns naturally with the transceiver mapping being used—particularly in some parallel-optic and breakout-heavy designs. It is equally valid per ANSI/TIA-568.3-D; the choice between B and C often comes down to what the trunk manufacturer stocks and what your transceiver documentation maps to.

Putting It Together: A Quick-Reference Summary

Common Field Mistakes—and How to Avoid Them

• Mixing methods in a single channel. Each channel must conform to exactly one method end to end. Mixing a Type A trunk with a Type B trunk in a two-segment channel can accidentally re-invert polarity and restore a link—until you add a third segment and lose it again. Document your method choice and enforce it.
• Ignoring the key orientation on Type B trunks. If a Type B trunk is installed with the same key orientation on both ends rather than flipped, it behaves like a Type A trunk and your polarity math breaks.
• Assuming all MPO patch cords are equal. An unlabeled MPO-to-duplex LC breakout cord may be wired for Method A or Method B depending on the manufacturer. Always verify pin/fiber mapping against your chosen method before deployment.
• Skipping end-to-end documentation. A polarity scheme that lives only in someone's memory is a liability. ANSI/TIA-606 administration and labeling practices exist precisely to capture this kind of infrastructure detail in a recoverable, transferable form.

Multimode vs. Singlemode: Does Polarity Change?

The polarity methods themselves are fiber-agnostic—they apply equally to the laser-optimized OM3, OM4, and OM5 multimode fibers common in high-density data-center horizontal and backbone runs, and to OS2 singlemode used in longer-reach or campus applications. ANSI/TIA-568.3-D covers all of these fiber types. What does change with singlemode is the connector polish specification—APC connectors (angled) are directionally keyed and non-intermateable with UPC connectors, which adds another layer of attention required during installation, though that's a topic for its own article.

Final Takeaway

MPO polarity isn't complicated—it just requires a deliberate decision made once and documented thoroughly. Pick a method that matches your team's operational habits and your supplier's trunk inventory, apply it consistently across every channel, and label everything per ANSI/TIA-606. When you do that, MPO polarity stops being the thing that haunts your change-management windows and starts being the thing you configured correctly and never had to think about again.
