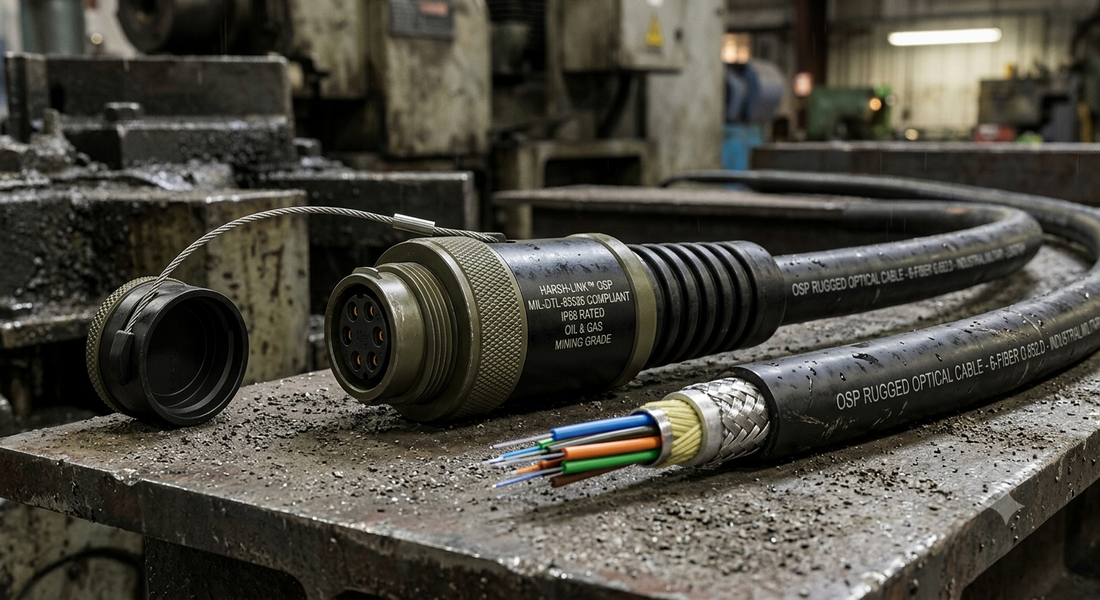

OSP Fiber: Protecting Cable in Harsh Environments

Why Outside Plant Fiber Deserves Special Attention

When fiber optic cable leaves the controlled environment of a building and enters the outside world, the engineering calculus changes dramatically. Conduit buried beneath a parking lot, aerial strand strung between utility poles, or direct-buried runs crossing a campus all expose cable to moisture ingress, freeze-thaw cycling, UV radiation, rodent damage, and mechanical stress that simply don't exist inside a structured cabling system. Specifying the wrong cable type—or skimping on protection—leads to degraded performance, expensive remediation, and potentially years of intermittent troubleshooting headaches.

As a distributor focused on network infrastructure, Heather Technologies regularly guides customers through OSP fiber decisions. This article walks through the core protection strategies, relevant standards, and practical considerations that separate a reliable outdoor fiber plant from a future liability.

Understanding the OSP Environment

Outside plant conditions introduce several threat categories that must be addressed at the design stage, not retrofitted after installation:

• Moisture and water intrusion: Ground water, condensation, and flooding can migrate into cable jackets, causing attenuation increases and long-term fiber degradation if the cable is not properly rated.
• Temperature extremes: Burial and aerial applications experience wider temperature swings than indoor runs. Cable jackets and buffer materials must accommodate thermal expansion and contraction without stressing the glass.
• UV exposure: Aerial cables exposed to direct sunlight require UV-stabilized jacket compounds; standard LSZH or riser-rated jackets are not formulated for prolonged UV exposure.
• Mechanical crush and impact: Direct-buried cable faces soil settlement, ground movement, and accidental dig-up events. Armored construction provides critical protection.
• Rodent damage: Gnawing from squirrels, gophers, and other animals is a documented failure mode for direct-buried plant. Corrugated steel tape (CST) armor or rodent-deterrent jacket compounds address this risk.

Cable Construction Options for OSP Fiber

Loose-Tube vs. Tight-Buffered Designs

Loose-tube construction dominates OSP fiber for good reason. Individual fibers or ribbons ride inside gel-filled or dry-water-blocked tubes, decoupling the glass from mechanical stress on the outer jacket. When the cable expands, contracts, or bends, the fiber moves freely within its tube rather than absorbing the strain directly. Tight-buffered construction—common in indoor premises cable—bonds the coating tightly to each fiber, making it better suited to patch cords and short indoor runs rather than long outdoor spans.

Gel-Filled vs. Dry Water Block

Traditional loose-tube OSP cable fills the buffer tubes with a thixotropic gel that blocks moisture migration along the cable length. Gel-filled cables are proven performers, but the gel complicates splicing and termination, requiring thorough cleaning before connectorization. Dry water-blocked alternatives use superabsorbent tapes or powder to stop moisture, offering easier workmanship in the field. Both approaches are valid; the choice often comes down to installer preference and project-specific termination volume.

Armor Configurations

For direct-buried applications, armored cable construction provides the mechanical protection that an exposed jacket alone cannot. Corrugated steel tape armor is the most common choice for direct-burial, forming a crush-resistant layer that also deters rodents. Interlocked aluminum armor (IAA) appears in some duct-and-conduit applications where crush resistance combined with flexible routing is needed. When running OSP cable in conduit with no expected direct-burial risk, armored construction may be unnecessary—but in mixed-use pathways where future digging is possible, the incremental cost of armor is worthwhile insurance.

Aerial Cable

Self-supporting aerial cable incorporates a steel messenger wire integrated into or lashed alongside the fiber bundle, carrying the tensile load of the span so the cable itself is not under constant mechanical tension. All-Dielectric Self-Supporting (ADSS) cable eliminates metallic components entirely, which matters in high-voltage utility environments and simplifies bonding and grounding coordination. For campus aerial runs near power infrastructure, your electrical engineer should weigh in on which construction is appropriate.

Fiber Type Selection: Single-Mode Dominates OSP

For the vast majority of outside plant applications—campus backbones, inter-building links, and any run likely to exceed a few hundred meters—OS2 single-mode fiber is the correct choice. ANSI/TIA-568.3-D governs optical fiber cabling and components and recognizes OS1 and OS2 single-mode fiber for premises and OSP use. OS2 cable specifies low-water-peak single-mode fiber optimized for low attenuation across a broad wavelength range, supporting transmission over long distances that multimode simply cannot match.

At the fiber level, ITU-T G.652 defines standard single-mode fiber characteristics, while ITU-T G.657 addresses bend-insensitive single-mode fiber—a category increasingly specified for OSP routes with tight bend radii at splice points or building entry transitions. When your OSP run terminates inside a data center or equipment room, ANSI/TIA-942 provides the design framework for those spaces, while ANSI/TIA-569 addresses pathway and space requirements for the conduit and innerduct infrastructure that connects the outside plant to interior systems.

Multimode fiber—OM3, OM4, or OM5 as recognized by ANSI/TIA-568.3-D—remains appropriate for shorter intra-campus links where active equipment budgets and existing multimode infrastructure make it the practical choice. However, for any greenfield OSP design with an uncertain future distance requirement, single-mode is the conservative, future-proof selection.

Conduit, Pathways, and Building Entry

Cable protection doesn't end with cable selection. The pathway system surrounding the cable must be engineered with equal care. ANSI/TIA-569 covers pathways and spaces, including conduit fill, bend radius requirements, and separation from power infrastructure. For OSP runs, innerduct inside larger conduit provides an additional layer of protection and simplifies future cable pulls or replacements without disrupting the buried conduit system.

The building entry point is one of the highest-risk locations in any OSP fiber plant. Transition from direct-buried or aerial cable to indoor-rated cable must occur at an approved location—typically a below-grade entrance facility or exterior wall penetration. Firestopping at the penetration is a code requirement, and the transition hardware must provide strain relief so building settlement or cable movement does not stress the splice or connector. Bonding and grounding of any metallic cable components at the building entry follows the guidance in ANSI/TIA-607.

Labeling, Documentation, and Long-Term Administration

An OSP fiber plant that isn't documented is a liability waiting to surface during the next maintenance event or network expansion. ANSI/TIA-606 establishes the administration standard for telecommunications infrastructure, including labeling conventions for outside plant pathways, splice points, handholes, and cable segments. Accurate as-built records—including OTDR test results taken at installation—establish a performance baseline that makes future troubleshooting far faster and more accurate. Fiber color coding for individual fibers and buffer tubes follows TIA-598-D, which should be specified consistently across the project to avoid confusion at splice points.

Putting It All Together

Protecting OSP fiber in harsh environments is not a single decision—it is a layered system of correct cable construction, appropriate armor and water-blocking, engineered pathways, proper building entry transitions, bonding and grounding, and thorough documentation. Cutting corners on any layer creates a weak point that outdoor conditions will eventually find. Specifying to the applicable TIA, ITU-T, and IEEE standards from the start, and working with a distributor that understands how those standards interact in the field, is the most reliable path to a fiber plant that performs for its full intended service life.

Heather Technologies carries a broad portfolio of OSP fiber cable, conduit, innerduct, splice hardware, and enclosures from manufacturers whose products meet the standards discussed here. Contact our team to work through the specific requirements of your next outside plant project.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
