Outside-Plant Splice Closures: Selection and Installation
Outside-plant (OSP) fiber infrastructure is only as reliable as its weakest mechanical joint. Splice closures protect those joints from moisture ingress, temperature cycling, mechanical stress, and rodent damage across decades of service life. Whether you are designing a campus backbone, a municipal fiber ring, or a building entrance facility, selecting and installing the correct splice closure is a foundational decision that affects optical performance, maintainability, and long-term cost of ownership.
Why Splice Closures Matter
Unlike premises cabling governed indoors by ANSI/TIA-568.3-D for optical-fiber cabling and components, OSP fiber lives in a far harsher environment. Ground movement, standing water, freeze-thaw cycles, and UV exposure all attack the cable sheath and any unprotected fusion or mechanical splice. A failed closure seal can allow water wicking along the fiber buffer tubes for hundreds of feet, destroying splices that may be physically inaccessible. Getting the closure selection right at the design stage is far less expensive than emergency restoration after a moisture-induced failure.
Closure Types and Their Applications

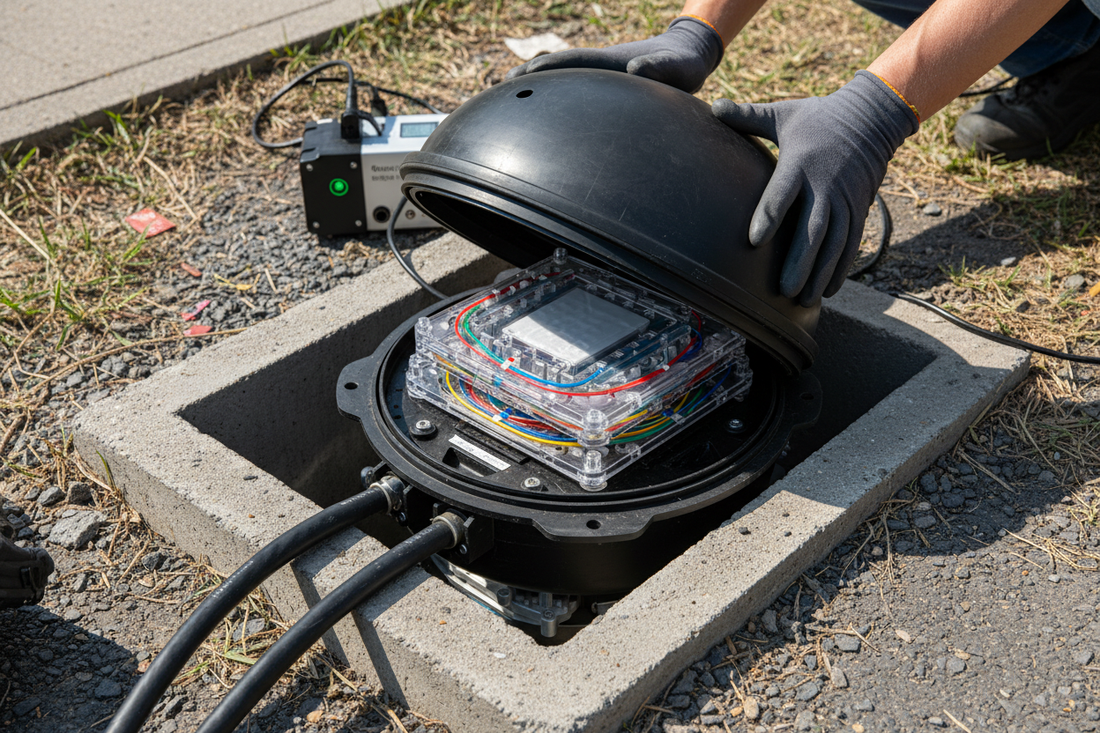

Dome (Butt) Closures
Dome closures accept cable entry from one end and are well suited to terminal or end-of-run applications — stub locations, building entries, and splice points where all cables arrive from the same direction. Their vertical or horizontal orientation options make them versatile for both aerial and buried installations. Organizer trays inside a dome closure typically accommodate fusion splices protected by heat-shrink sleeves, and many designs allow tray stacking as fiber counts grow.
Inline (Horizontal) Closures
Inline closures accept cables from both ends and are the natural choice for mid-span splices on a continuous route — connecting factory-length reels, adding branch cables, or splicing after a cable break restoration. They are commonly deployed in handholes, manholes, and direct-buried applications. Many inline closures use a clamshell or wrap-around body that separates for re-entry without disturbing adjacent splice trays.
Aerial and Pedestal Variants
Aerial strand-mount closures clamp directly to the messenger wire and are engineered for the oscillation loads and UV exposure of aerial plant. Pedestal-mount closures serve subscriber drop points in fiber-to-the-premises architectures and often integrate a splitter housing or patch-ready tray.
Key Selection Criteria
Environmental Rating and Sealing Technology
The two dominant sealing technologies are mechanical compression gaskets and gel-filled (flooding compound) designs. Mechanical re-enterable closures rely on precision-machined ports and O-ring or gasket compression; they allow re-entry with standard tools and a replacement seal kit. Gel-filled designs provide highly reliable initial sealing but can be messier to re-enter. For direct-buried applications with known groundwater exposure, specify a closure with an IP68 or NEMA 6P ingress-protection rating and verify that the cable port inserts accommodate your specific sheath outer diameter and jacket material.
Fiber Count and Splice Tray Capacity
Match the closure's splice tray capacity to your current fiber count plus a realistic growth allowance. Ribbon fiber splicing requires ribbon-capable trays with mass-fusion splice holders; loose-tube fiber uses individual splice protector slots. Singlemode plant running ITU-T G.652 or G.657 bend-insensitive fiber for long-haul or FTTx respectively will benefit from trays designed with minimum bend-radius management consistent with ANSI/TIA-568.3-D fiber handling guidelines, even though that standard formally governs premises cabling — the underlying fiber geometry requirements are the same.
Cable Entry and Strain Relief
Evaluate whether the closure must accept armored cable (with a separate metallic shield bond point), loose-tube gel-filled cable, micro-duct blown fiber, or a combination. Metallic armor and strength members must be properly bonded and grounded per ANSI/TIA-607 bonding and grounding principles to prevent induced voltages and to maintain electrical continuity for fault-locating tones. Each port should provide independent strain relief for the cable jacket and separate management of the strength member.
Re-entry and Maintainability
Re-enterable closures cost more up front but dramatically reduce restoration time and material expense over the life of the plant. For any route where future splicing activity is likely — such as a feeder cable serving multiple distribution points — re-enterable mechanical closures are almost always the better lifecycle investment. Document every closure location in your OSP administration records consistent with ANSI/TIA-606 labeling and administration practices, including GPS coordinates, reel numbers, and fiber assignment records.
Installation Best Practices
Preparation and Cleanliness
All gel, flooding compound, and loose cable debris must be completely removed from the cable ends before installation. Residual gel on buffer tubes is the leading cause of poor splice protector adhesion and incomplete port sealing. Use manufacturer-approved cleaning solvents and lint-free wipes. Work in a clean, sheltered environment whenever possible; even modest wind introduces particulate contamination to fusion splice points.
Proper Cable Fixation
Fix the cable jacket to the closure body at the strain-relief clamp before organizing strength members and buffer tubes. This ensures that any tensile load on the cable — from frost heave, settlement, or accidental pull — is transferred to the closure body rather than the splice trays. Metallic elements should be bonded to the closure grounding lug and connected to the OSP grounding electrode system per ANSI/TIA-607.
Splice Tray Organization and Routing
Route buffer tubes with smooth, controlled bends that respect the minimum bend radius of the fiber type in use. Secure tubes without pinching. Fan-out kits or buffer tube holders should position each tube so that the splice tray can be removed for inspection without disturbing adjacent tubes. Label each tray with fiber count, tube color, and splice record reference to support ANSI/TIA-606 administration.
Final Sealing and Testing
Follow the closure manufacturer's torque specifications for mechanical closures; over-tightening can deform gaskets and create leak paths. After sealing, perform an optical loss test — typically with an OTDR — on every spliced fiber before backfill or aerial lashing is completed. Verify that splice losses and total link loss are within the insertion loss budget established for the link, consistent with the loss allocation guidance in ANSI/TIA-568.3-D for optical-fiber components. Address any out-of-specification splices immediately; re-entry after backfill is exponentially more costly.
Documentation and Long-Term Management
Every splice closure should be captured in your OSP records with its location, cable type, fiber count, splice record, closure model, installation date, and installer. ANSI/TIA-606 provides a scalable administration framework that accommodates OSP plant alongside premises infrastructure. Photographs of the installation — including the closure serial number, port assignments, and any grounding connections — are valuable supplements to formal records and dramatically speed future restoration efforts.
Conclusion
Outside-plant splice closures are unglamorous components that rarely receive the attention they deserve until something fails at 2 a.m. during a critical outage. Matching the correct closure type to the installation environment, specifying adequate fiber count capacity, ensuring proper cable preparation and bonding, and maintaining thorough records are the disciplines that separate reliable long-term OSP infrastructure from chronic maintenance headaches. Heather Technologies carries a broad range of OSP splice closures and accessories; contact our technical team to discuss the right solution for your specific route conditions and fiber architecture.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
