Passive Optical LAN: When It Beats a Traditional Copper Design

Passive Optical LAN replaces floor-by-floor switches with singlemode fiber and passive splitters. Where it wins, where copper still fits, and the design decisions that make POL succeed.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
4 min read

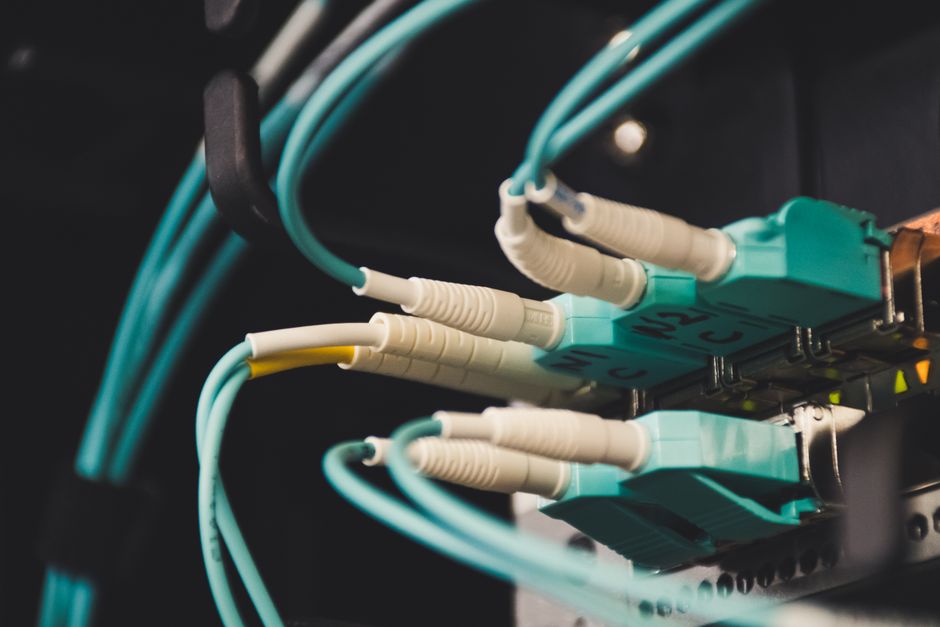

Fiber optic cables and ports in a network equipment room

What Passive Optical LAN Is

Passive Optical LAN (POL) takes the passive optical network (PON) technology that service providers use to deliver fiber to homes and applies it inside buildings and campuses. Instead of running four-pair copper from every outlet back to an access switch in a telecommunications room on each floor, POL runs singlemode fiber from an optical line terminal (OLT) in a central equipment room, through passive optical splitters, to optical network terminals (ONTs) near the users and devices.

The word "passive" is the key: the splitters require no power, and there are no active switches between the core and the edge. For the right building, that changes the economics of the entire cabling plant.

How the Pieces Fit Together

  • OLT — the central chassis that connects the POL to the core network. One OLT port serves many endpoints through splitters.
  • Splitters — passive devices that divide one fiber into many, commonly 1:32 or 1:64 depending on the design and the optical budget. Splitters can be centralized or cascaded in stages.
  • ONTs — the edge devices that convert the optical signal to Ethernet ports (often with PoE) for computers, phones, access points, and cameras.
  • Protocols — GPON (ITU-T G.984) is widely deployed; XGS-PON (ITU-T G.9807.1) provides symmetrical 10 Gb/s-class capacity shared across the splitter tree. Higher-speed PON generations are in development and early deployment.

Where POL Wins

  • Large horizontal footprints — hospitals, campuses, hotels, airports, and government facilities where copper's 100-meter limit forces many telecommunications rooms. Singlemode fiber reaches far further, so fewer closets are needed.
  • Space-constrained or historic buildings — small-diameter fiber needs far less pathway space than bundles of Category 6A.
  • Reduced power and cooling at the edge — eliminating powered switches in every closet reduces HVAC and UPS requirements on each floor.
  • Long infrastructure life — singlemode fiber supports multiple generations of PON electronics without replacing the cable.
  • Security-focused environments — POL has an established footprint in government facilities, in part because it reduces the number of active devices distributed throughout a building.

Where Traditional Copper Still Fits

POL is not right for every building. Small offices with one telecommunications room may see little benefit. Data centers are a different discipline entirely. Environments with very high per-user upstream bandwidth needs should model the shared nature of PON capacity carefully. And devices still connect over copper at the ONT, so POL usually reduces copper rather than eliminating it. The decision should come from a design comparison, not from a technology preference.

Design Considerations

Optical Budget

Every POL design starts with the optical loss budget: splitter loss, fiber attenuation, connector and splice losses, and margin must all fit within the class of optics being used. Splitter loss is the largest single component—the higher the split ratio, the higher the loss. Our guides on building a loss budget and splitter loss verification walk through the math.

Connector Polish

PON systems are sensitive to reflectance, which is why APC (angled physical contact) connectors are common in PON designs. Keep connector types consistent throughout the plant and specify them clearly—mixing APC and UPC connectors damages endfaces and causes high loss. See APC vs. UPC for the details.

Redundancy

Because a single OLT port and feeder fiber can serve dozens of endpoints, plan redundancy for critical areas: diverse feeder paths and protection options supported by the PON equipment you select.

Power at the Edge

ONTs need local power, and PoE devices connected to them draw from that power. Plan where ONTs live (in furniture, above ceilings, in small enclosures) and how they are powered and backed up.

Testing

Certify the passive plant with an OLTS for loss and an OTDR for characterization, and use PON-capable test tools for turn-up and troubleshooting. A certifier with PON capability pays for itself on the first troubleshooting call.

Standards Context

The fiber plant itself is designed and tested to the same standards as any premises fiber: ANSI/TIA-568.3-D for optical fiber cabling components and testing, ANSI/TIA-569 for pathways and spaces, and ANSI/TIA-606-C for administration. The Association for Passive Optical LAN (APOLAN) publishes educational material for designers evaluating POL. And the topic is firmly mainstream—BICSI's 2026 fall program includes Optical LAN sessions and a pre-conference masterclass on Passive Optical LAN fundamentals.

Closing Thoughts

Passive Optical LAN is not a niche technology anymore. For large, spread-out facilities it can reduce telecommunications rooms, power, cooling, and pathway congestion while installing a singlemode plant that will outlast several generations of electronics. Heather Technologies can help you source singlemode cable, splitters, APC connectivity, enclosures, and PON test equipment—contact us to compare a POL design with a traditional one for your building.

Todd Taskerud, RCDD/NTS/OSP/WD, is a structured cabling and data-center infrastructure specialist at Heather Technologies.
