Permanent Link vs. Channel: How to Test Your Copper Cabling

When it comes to copper cabling certification, one of the most common points of confusion I encounter in the field is the difference between a permanent link test and a channel test. Both are defined in ANSI/TIA-568.2-D, the governing standard for balanced twisted-pair copper cabling, and both serve legitimate but distinct purposes. Choosing the wrong test model — or not understanding what each one measures — can leave your infrastructure out of spec, create warranty headaches, and cost you real money in troubleshooting time down the road.

At Heather Technologies, we work with contractors, integrators, and end-users every day who are sourcing Cat 5e, Cat 6, Cat 6A, and Cat 8 infrastructure. Regardless of the category you're deploying, getting the test methodology right is just as important as selecting quality components. Let me walk you through both models, when to use each, and what the standards actually say.

What Is a Permanent Link?

The permanent link is the fixed, installed portion of a cabling system — the part that lives in the wall, ceiling, or floor and isn't touched once the job is done. Under ANSI/TIA-568.2-D, the permanent link encompasses the horizontal cable run itself, plus any consolidation points and their associated connecting hardware, and the terminations at both ends (typically at the telecommunications outlet and the patch panel). What it deliberately excludes is the patch cords and equipment cords that connect end devices to the system.

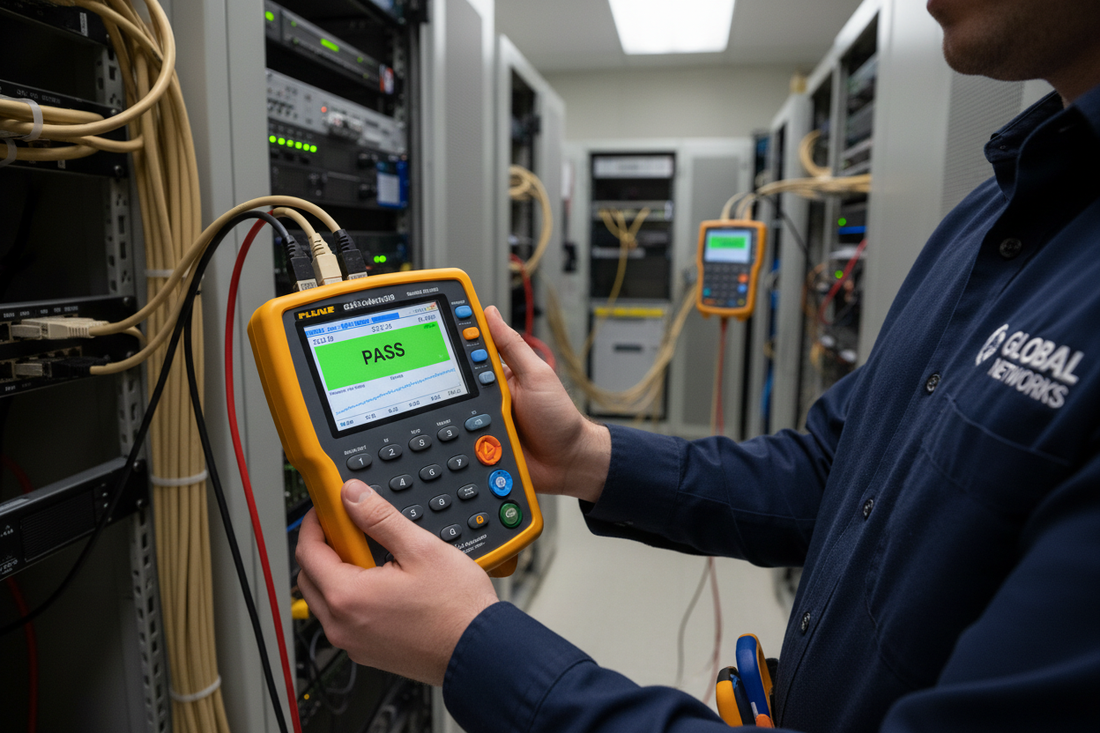

For testing purposes, a permanent link test uses specially designed adapters that plug into the field tester. These adapters are engineered to remove the electrical contribution of the test leads themselves from the measurement, so what you're measuring is precisely and only the installed infrastructure. This is the test model most commonly specified by contractors and installers for post-installation certification, because the permanent link is what they installed, warranted, and are responsible for.

Permanent Link: Key Characteristics

• Measures installed cable plus connecting hardware (outlet, patch panel, consolidation point if present)
• Excludes patch cords and equipment cords
• Maximum horizontal cable length governed by ANSI/TIA-568.2-D specifications per category
• Uses dedicated permanent link adapters on the field tester — not interchangeable with channel adapters
• The appropriate model for contractor certification and manufacturer warranty compliance
• Tighter pass/fail limits than channel, because it excludes the allowance allocated to patch cords

What Is a Channel?

The channel is the complete end-to-end transmission path from the port of one piece of active equipment to the port of another. In practical terms, the channel includes everything in the permanent link plus the patch cord at the telecommunications room end and the equipment cord at the work area end. Under ANSI/TIA-568.2-D, the channel model represents the full signal path that your switch, access point, IP camera, or PoE device actually sees in operation.

Because the channel includes the patch cords, its performance limits are slightly more relaxed than permanent link limits — the standard accounts for the additional insertion loss and other parameter degradation that patch cords contribute. This is not a loophole; it's intentional. The channel limits reflect real-world operating conditions, which is why application standards like IEEE 802.3 (Ethernet) reference channel performance when defining the cabling requirements for 10BASE-T, 1000BASE-T, 10GBASE-T, and related applications.

Channel: Key Characteristics

• Measures the complete end-to-end link including patch cords and equipment cords
• Reflects the actual signal environment seen by connected equipment
• Slightly more relaxed pass/fail thresholds than permanent link, per ANSI/TIA-568.2-D
• Uses channel adapters on the field tester — not interchangeable with permanent link adapters
• Appropriate for troubleshooting application-level performance issues
• Relevant when validating support for specific IEEE 802.3 Ethernet applications

Why the Distinction Matters: Practical Implications

Here's where I see projects get into trouble. An installer certifies a permanent link and the results look great — clean margin on insertion loss, return loss, NEXT, PS-NEXT, ELFEXT, and PS-ELFEXT across all required frequencies. The customer then plugs in a low-quality or poorly terminated patch cord, and suddenly their 10 Gigabit application is flapping or their PoE device is browning out. The permanent link was fine. The channel — with that patch cord in the circuit — was not.

This is particularly relevant for Cat 6A deployments supporting 10GBASE-T and for Cat 8 installations used in data center and high-density switching environments. At higher frequencies, the margin for error shrinks, and the patch cord contribution to alien crosstalk and insertion loss becomes meaningful. ANSI/TIA-568.2-D establishes specific requirements for each category, and the permanent link model helps isolate the installed infrastructure so that any patch cord issues can be identified separately.

For PoE applications specifically — particularly IEEE 802.3bt (Type 3 and Type 4, also known as 4PPoE) — DC resistance unbalance is a parameter you need to pay attention to. Resistance unbalance can cause common-mode noise and heating in cable bundles. Testing the permanent link gives you visibility into the installed cable's DC resistance characteristics before patch cords introduce additional variables.

Which Test Should You Run?

The straightforward answer: certify to permanent link for installation acceptance and warranty documentation, and use channel testing when you're troubleshooting application performance or validating the end-to-end system including the customer's own patch cords and equipment cords.

Many manufacturers of structured cabling systems — patch panels, outlets, cable — require permanent link certification using their approved components in order to honor an extended system warranty. If you're pursuing a manufacturer-backed warranty on a Cat 6A or Cat 8 installation, read the warranty requirements carefully. Most will specify permanent link certification with an approved, calibrated field tester and current adapters.

It's also worth noting that field testers and their adapters must be kept within calibration. ANSI/TIA-568.2-D references measurement accuracy levels for field test instruments, and an out-of-calibration tester or worn adapter set can produce results that don't reflect actual link performance — in either direction. Replace your permanent link and channel adapters on the manufacturer's recommended schedule, and verify tester calibration status before starting any certification project.

Documentation and Labeling: Close the Loop

Test results don't mean much if they're not properly documented and tied to a labeling scheme that lets you find the right link months or years later. ANSI/TIA-606 provides the administration and labeling framework for telecommunications infrastructure, and aligning your test reports to your 606-compliant labels is simply good practice. When a trouble ticket comes in eighteen months after installation, you'll want to pull up a test report that maps directly to a labeled outlet and patch panel port — not a spreadsheet where you have to guess which link is which.

The Bottom Line

Permanent link and channel are not interchangeable concepts, and they're not interchangeable test configurations. ANSI/TIA-568.2-D defines both for good reason: each serves a different purpose in the lifecycle of a copper cabling system. Understanding which model to use — and why — is part of what separates a properly certified installation from one that just happens to pass on the day someone ran a test.

If you have questions about copper cabling standards, test requirements, or sourcing Cat 6A or Cat 8 infrastructure that meets ANSI/TIA-568.2-D, the team at Heather Technologies is here to help. We're a certified WBE and EDWOSB, and we specialize in helping integrators and agencies get the right products with the right documentation to support compliant, high-performance network infrastructure.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
