Planning for PoE: What 802.3bt Means for Cabling

IEEE 802.3bt Type 3 and Type 4 raise power delivery to levels that demand a disciplined cabling strategy—here is what network designers and installers need to understand before specifying infrastructure.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
5 min read
Planning for PoE: What 802.3bt Means for Cabling

PoE Has Grown Up—and Your Cabling Strategy Needs to Keep Pace

Power over Ethernet began as a convenient way to energize IP phones and basic wireless access points. With the ratification of IEEE 802.3bt, the conversation changed fundamentally. Type 3 and Type 4 deliver substantially higher power budgets than their predecessors, and that power has to travel through the same balanced twisted-pair copper plant your data signals occupy. If your cabling infrastructure was designed around earlier PoE generations, it is time to take a hard look at whether it can handle what modern endpoints actually demand.

This article walks through the electrical realities of 802.3bt, the cabling standards that govern the copper infrastructure carrying that power, and the practical planning steps that prevent costly retrofits down the road.

Understanding the IEEE 802.3bt Power Tiers

IEEE 802.3 defines four PoE types across three amendments. The original 802.3af established Type 1, and 802.3at added Type 2. The 802.3bt amendment—commonly called Hi-PoE or PoE++—introduced Type 3 and Type 4, which are meaningfully different in how they stress a cabling system.

  • Type 1 (802.3af): Up to approximately 15.4 W at the PSE, around 13 W delivered to the powered device (PD)—two-pair power delivery.
  • Type 2 (802.3at): Up to approximately 30 W at the PSE, around 25.5 W at the PD—still two-pair.
  • Type 3 (802.3bt): Up to approximately 60 W at the PSE, around 51 W at the PD—four-pair power delivery.
  • Type 4 (802.3bt): Up to approximately 90 W at the PSE, around 71.3 W at the PD—four-pair power delivery.

The shift to four-pair power delivery with Type 3 and Type 4 is not a trivial detail. All four pairs now carry current simultaneously, and the thermal and electrical consequences of that choice ripple directly into how you must specify, install, and manage copper cabling.

Why Copper Cabling Specification Matters More Than Ever

ANSI/TIA-568.2-D is the governing standard for balanced twisted-pair copper cabling and components, covering categories from Cat 5e through Cat 8. When evaluating a copper plant for 802.3bt deployments, 568.2-D is the document that defines the electrical performance parameters your infrastructure must meet—insertion loss, return loss, crosstalk margins, and DC resistance.

DC loop resistance is particularly relevant for high-power PoE. Higher resistance in the cable means more voltage drop across the horizontal run and more power dissipated as heat in the cable itself rather than delivered to the endpoint. Cat 6A cabling, which 568.2-D specifies for 10GBASE-T applications, is the minimum category most experienced designers now recommend for Type 3 and Type 4 deployments. Its larger conductor gauge compared to Cat 6 results in lower DC resistance, better power delivery efficiency, and improved thermal characteristics under sustained load.

Cat 5e and Cat 6, while technically capable of carrying 802.3bt power in limited scenarios, offer less margin. Designers should approach those categories with caution for any Type 3 or Type 4 application, especially in high-density environments.

The Thermal Challenge: Bundled Cables and Temperature Rise

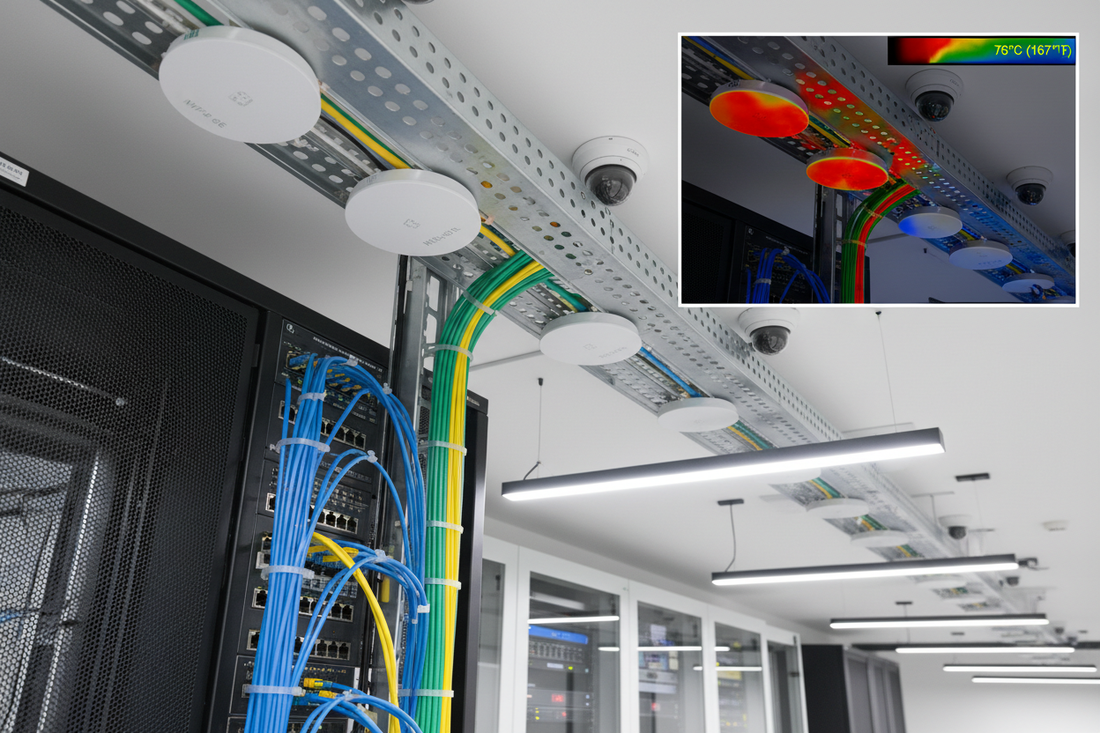

One of the most underappreciated challenges in high-power PoE planning is thermal management of the cable plant itself. When current flows through a conductor, heat is generated. When dozens or hundreds of cables are bundled together in a conduit, a cable tray, or a bundle tie, that heat has nowhere easy to go.

ANSI/TIA-568.2-D addresses the relationship between operating temperature and insertion loss. As cable temperature rises, insertion loss increases, which can compress channel margins and potentially degrade link performance. For 802.3bt Type 3 and Type 4 installations, designers must account for:

  • Bundle size and whether cables are tightly or loosely grouped in pathways
  • Ambient temperature in the pathway environment, particularly above dropped ceilings or in conduit runs in unconditioned spaces
  • The number of cables in the bundle that will be simultaneously energized at high power levels
  • Pathway fill rates, governed by ANSI/TIA-569, which addresses conduit and cable tray sizing for telecommunications pathways and spaces

TIA-569 pathway design directly intersects with 802.3bt thermal management. Properly sized pathways with appropriate fill ratios allow heat dissipation and make future adds or changes less disruptive. Do not treat TIA-569 compliance as a checkbox—treat it as thermal engineering.

Cable Category Selection: Making the Right Call for Long-Term Infrastructure

For new construction or major renovation projects where 802.3bt Type 3 or Type 4 endpoints are anticipated—or even plausibly anticipated in the future—Cat 6A shielded or unshielded, as specified in ANSI/TIA-568.2-D, is the defensible choice. It provides:

  • Lower DC resistance for more efficient power delivery over the full 100-meter channel
  • Higher transmission performance headroom that accommodates the insertion loss penalty introduced by elevated operating temperatures
  • Support for 10GBASE-T, protecting the investment as bandwidth demands grow alongside power demands
  • Broader support from switch and endpoint manufacturers for full power delivery at channel length

The decision between UTP and shielded (F/UTP or U/FTP) Cat 6A should account for the installation environment and available bonding and grounding infrastructure. ANSI/TIA-607 governs telecommunications bonding and grounding and is a required companion reference when deploying shielded cabling. A shielded system that is not properly bonded and grounded can create more problems than it solves.

Documentation and Labeling: The Foundation of Manageability

High-power PoE infrastructure demands rigorous documentation. When a powered device fails to come up at full power, or when a switch port reports a thermal fault, the ability to quickly identify exactly which cable, connector, and patch panel port are involved is not optional—it is operational necessity.

ANSI/TIA-606 provides the administration and labeling framework for telecommunications infrastructure. A 606-compliant labeling scheme applied consistently at every outlet, patch panel port, and pathway segment gives operations teams the reference data they need to troubleshoot, audit, and plan changes efficiently. Combined with as-built drawings that reflect actual installation conditions, TIA-606 documentation is the foundation of a maintainable PoE infrastructure.

Planning Checklist for 802.3bt Deployments

  • Confirm copper cabling category meets ANSI/TIA-568.2-D performance requirements appropriate to Type 3 or Type 4 power levels—Cat 6A is the recommended baseline
  • Audit DC loop resistance on existing cable plants before assuming they will support full power delivery at rated distances
  • Evaluate bundle sizes and pathway fill against ANSI/TIA-569 guidelines, factoring in simultaneous high-power loading
  • Verify bonding and grounding compliance with ANSI/TIA-607 for any shielded cabling deployment
  • Implement ANSI/TIA-606-compliant labeling and maintain current as-built documentation
  • Engage the PSE switch manufacturer and PD device manufacturer early to confirm power negotiation compatibility and any cable plant requirements they specify

Closing Thoughts

IEEE 802.3bt Type 3 and Type 4 represent a genuine inflection point in network infrastructure planning. The power levels involved are high enough that cabling decisions made today will either support operational success or create chronic headaches for years. Specifying to ANSI/TIA-568.2-D, designing pathways to ANSI/TIA-569, grounding shielded systems to ANSI/TIA-607, and documenting everything to ANSI/TIA-606 is not over-engineering—it is sound practice for infrastructure that will carry both data and meaningful electrical power to every corner of a facility.

At Heather Technologies, our team is ready to help you specify the right copper cabling systems, pathway products, and connectivity components to support high-power PoE deployments that perform reliably from day one. Contact us to discuss your project requirements.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
