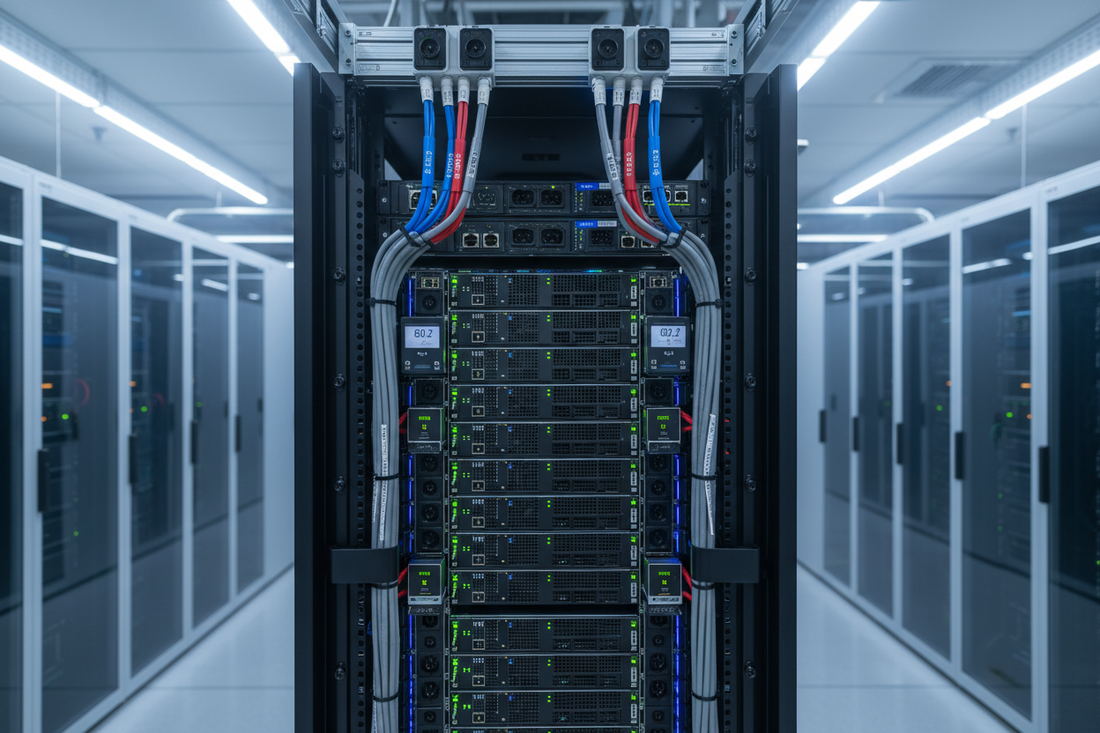

Planning Power for 60 kW GPU Racks | Heather Technologies
Why 60 kW GPU Racks Change Everything
Not long ago, a 10 kW average rack load was considered dense. Today, a single GPU server sled can draw more than that on its own. Modern AI training and inference platforms—built around high-performance graphics processors—are routinely pushing individual cabinet loads past 60 kW, with next-generation configurations threatening to go higher still. For network-infrastructure and data-center professionals, that shift is not incremental. It is architectural. Every assumption you made about feeders, UPS sizing, cooling, grounding, and fire suppression needs to be revisited before the first GPU chassis arrives on the floor.
This article walks through the key power-planning disciplines for high-density GPU deployments, grounded in current standards and representative design values from real-world containerized edge AI data centers in the 500 kW IT-load class.
Starting with the Math: Total Facility Load
Before touching a single breaker schedule, establish your IT load budget. A cluster of GPU racks at 60 kW each adds up fast. Eight cabinets alone represent 480 kW of IT draw. Add overhead for cooling, lighting, controls, and security, and the facility power requirement climbs significantly. The industry metric that captures this relationship is Power Usage Effectiveness (PUE), defined as total facility power divided by IT power. Targeting a PUE of approximately 1.25—achievable with modern hybrid liquid cooling—means a 500 kW IT load demands roughly 625 kW of total facility power. That number drives your utility service, transformer sizing, generator capacity, and UPS selection.
ANSI/TIA-942 provides a structured framework for data-center infrastructure planning, including power distribution architecture and redundancy ratings that align with Uptime Institute Tier classifications. For most enterprise and colocation GPU deployments, Tier III—concurrently maintainable, meaning any single component can be taken offline without dropping IT load—is the appropriate design target.
Service Entrance and Distribution Voltage
At high densities, 480V three-phase distribution is not optional; it is the only practical choice. Running 60 kW through 208V circuits produces conductor sizes and voltage-drop losses that are simply unworkable at scale. A 480V three-phase architecture keeps feeder conductors manageable, reduces I²R losses, and is compatible with modern server power supplies that accept wide-range input. Step-down to lower voltages happens at the rack or row level where needed.
All electrical installations must comply with NFPA 70, the National Electrical Code, which governs conductor sizing, overcurrent protection, grounding, and bonding throughout the distribution path. Equally important, ANSI/TIA-607 defines bonding and grounding infrastructure for telecommunications and data-center spaces, including TN-S earthing configurations that keep neutral and protective-earth conductors separate—critical for minimizing noise on sensitive GPU memory buses and reducing common-mode interference on high-speed data links.
UPS Sizing and Architecture
For a 500 kW IT load with a PUE target of ~1.25, the upstream UPS must be sized to the full facility draw, not just the IT load. A representative design uses two 300 kVA online double-conversion UPS units in an N+1 configuration, providing approximately 625 kVA of protected capacity with one module available as a standby. Online double-conversion topology eliminates the transfer-time gap of line-interactive designs, which matters for GPU workloads that are sensitive to even brief power anomalies.
Lithium-ion battery technology has become the preferred chemistry for high-density data-center UPS applications because of its higher energy density, longer cycle life, and faster recharge capability compared to traditional valve-regulated lead-acid. IEEE standards covering UPS performance and power quality should inform acceptance testing and ongoing monitoring protocols for these systems.
Where renewable generation and battery energy storage systems (BESS) are integrated, an Automatic Transfer Switch (ATS) coordinates the priority sequence among utility, solar, and BESS sources. This integration requires careful engineering to ensure the ATS logic does not introduce transients that trip GPU platform management controllers.
Surge Protection and Arc-Flash Safety
High-density GPU facilities are not exempt from power quality threats. Switching transients from large UPS units, variable-speed drives on cooling equipment, and utility disturbances all represent surge energy that can degrade server power supplies over time. NFPA 70 requires surge-protective devices (SPDs) at the service entrance; a Type 1 plus Type 2 combination provides protection at both the service entrance and distribution panels, covering both external lightning-derived surges and internally generated transients.
Arc-flash hazard is an often-overlooked safety dimension of high-density power design. NFPA 70E establishes the requirements for electrical safety in the workplace, including arc-flash risk assessment, incident energy analysis, and the selection of appropriate personal protective equipment for anyone working on or near energized electrical equipment. With the fault currents present in a 625 kVA distribution system, arc-flash incident energy levels can be severe. Every panel and switchboard should be labeled with arc-flash boundary and incident energy data derived from a current short-circuit and coordination study.
Intelligent Rack PDUs: The Last Meter of Power
At the rack level, intelligent power distribution units with per-outlet metering are essential—not a luxury. A 60 kW GPU rack fed by dual A+B 60A three-phase circuits needs PDUs that can report branch-circuit current in real time, trigger alerts before a circuit trips, and provide remote outlet switching for controlled restarts. Per-outlet metering also gives operations teams the granular data needed to validate nameplate versus actual draw, balance phases, and detect degrading power supplies before they fail.
Dual-corded A+B feed paths, sourced from independent UPS modules or independent distribution panels, provide the redundancy required at Tier III. Both paths should be independently sized to carry the full rack load, so that loss of one feed does not require load shedding.
Cooling Power Is Part of the Power Budget
Cooling infrastructure consumes a significant share of total facility power and cannot be an afterthought in the electrical design. A hybrid liquid plus direct-expansion (DX) cooling architecture suitable for 60 kW GPU racks includes a coolant distribution unit (CDU) handling the primary liquid loop, rear-door heat exchangers providing passive liquid cooling supplemented by EC fans, and precision DX units maintaining inlet air temperature and humidity within the ranges recommended by ASHRAE TC 9.9—approximately 18–27°C for the recommended envelope, with relative humidity managed to prevent both condensation and electrostatic discharge risk.
External dry coolers with adiabatic pre-cooling extend economizer hours even in warm climates. Each of these cooling subsystems has its own electrical feed, and those feeds must be included in the panel schedule, generator load calculation, and UPS coverage determination. Cooling power that goes unaccounted for in the electrical design is the most common cause of capacity surprises during commissioning.
Fire Suppression: Protecting the Investment
High-density GPU racks represent substantial capital investment and, in many cases, irreplaceable training runs or inference services. NFPA 2001 governs clean-agent fire suppression systems—agents such as FK-5-1-12 (Novec 1230) are appropriate for occupied data-center spaces because they suppress fire without water damage or conductive residue. VESDA aspirating smoke detection provides very early warning, identifying combustion byproducts before a visible fire develops. NFPA 75 addresses the protection of information technology equipment and should be consulted alongside NFPA 2001 when designing the suppression and detection architecture.
Bringing It Together: Design Before You Deploy
Planning power for 60 kW GPU racks is a multidisciplinary exercise. The electrical engineer, the mechanical engineer, the fire-protection engineer, and the structured-cabling designer all have interdependent deliverables. Standards from ANSI/TIA-942, NFPA 70, NFPA 70E, NFPA 75, NFPA 2001, ANSI/TIA-607, and ASHRAE TC 9.9 provide the regulatory and best-practice foundation. The Uptime Institute Tier framework gives you a common language for communicating redundancy requirements to stakeholders.
At Heather Technologies, we work with design and operations teams to source the intelligent PDUs, UPS systems, cooling distribution equipment, and structured-cabling infrastructure that make high-density GPU deployments reliable and maintainable. If your organization is planning a GPU cluster expansion, reach out early—the decisions you make in the design phase are far less expensive than the ones you make during an emergency at three in the morning.
About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
