Plenum vs. Riser Cable: Meeting NEC Fire-Rating Requirements

By Todd Taskerud, RCDD | Heather Technologies

When designing or specifying a structured cabling system, few decisions carry more regulatory weight—or more direct life-safety consequence—than selecting the correct cable fire rating. The terms "plenum" and "riser" get used interchangeably in casual conversation, but they represent fundamentally different performance classifications under the National Electrical Code (NEC). Getting this wrong isn't a documentation issue; it's a code violation that can endanger occupants, expose your organization to liability, and result in costly remediation. Let's break down what these ratings mean, where they apply, and how to keep your installations compliant.

Why Cable Jacket Fire Ratings Exist

Modern buildings rely on air-handling systems, vertical shafts, and interconnected pathways that, in a fire event, can rapidly distribute smoke and toxic gases throughout an occupied space. Cable jacketing materials—particularly older PVC formulations—can contribute significantly to smoke density and the release of harmful combustion byproducts when ignited. The NEC addresses this risk by classifying cables according to the spaces they occupy and mandating minimum flame-spread and smoke-production performance for each.

These requirements appear in NEC Article 800 (communications cables), Article 820 (coaxial), and Article 770 (optical fiber), among others. The fundamental principle across all of them is the same: the more air-handling exposure a space has, the stricter the cable rating required.

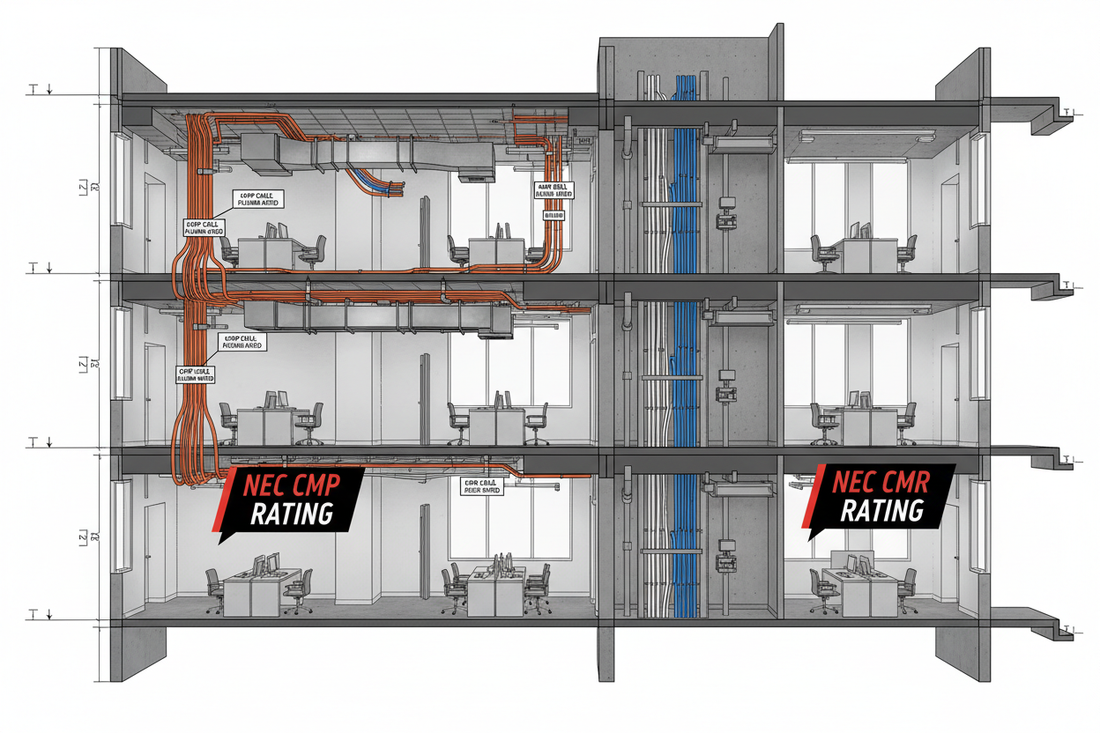

Understanding Plenum Spaces

A plenum is any building space used for environmental air handling—most commonly the area above a dropped ceiling or beneath a raised floor when that space serves as a return-air pathway. These spaces are explicitly covered by NEC Article 800 for communications cabling, which requires cables installed in plenums to carry a CMP (Communications Plenum) rating.

CMP-rated cables are tested to UL 910 (the Steiner Tunnel test), which evaluates flame propagation and smoke generation under forced-air conditions. The jacket materials used in CMP cables—typically low-smoke, fluoropolymer-based compounds such as FEP or LSZH blends—are engineered to resist flame spread and minimize toxic smoke output. The tradeoff is cost: plenum-rated cable is meaningfully more expensive than riser-rated equivalents, and that cost differential scales quickly across large deployments.

It is worth noting that not every ceiling cavity is a plenum. If the ceiling cavity is sealed and not used as part of the HVAC air-return system, it may be classified differently under your local jurisdiction. Always confirm the mechanical drawings and consult with the authority having jurisdiction (AHJ) before specifying cable ratings based on ceiling type alone.

Understanding Riser Spaces

Riser spaces are vertical pathways that pass between floors—telecommunications rooms connected by vertical conduit runs, elevator shafts, and similar inter-floor passages. The NEC requires cables in these spaces to carry a CMR (Communications Riser) rating at minimum.

CMR cables are tested to UL 1666, which evaluates flame propagation in a vertical shaft scenario. The concern here is that an unrated cable in a vertical run can act as a wick, carrying flame rapidly from floor to floor. CMR jackets are designed to self-extinguish and limit vertical flame travel, though they are not subjected to the same rigorous smoke-generation criteria as CMP-rated products.

The NEC establishes a clear substitution hierarchy: CMP-rated cable may be installed anywhere CMR or lower-rated cable is permitted, but the reverse is not true. CMR cable cannot be substituted in a plenum space. This hierarchy matters when you're managing cable inventory across a mixed-use building.

How Copper and Fiber Standards Align with Fire Ratings

Fire ratings are a code requirement, but they interact directly with the cabling performance standards your design is built around. For balanced twisted-pair copper cabling—Category 5e, 6, 6A, and Cat 8—the relevant performance standard is ANSI/TIA-568.2-D. This standard defines electrical performance, channel and permanent link parameters, and component requirements, but it does not itself mandate fire ratings. The NEC governs where each jacket type must be used; TIA-568.2-D governs how the cable performs electrically.

For optical fiber cabling—whether OM1 through OM5 multimode or OS1/OS2 single-mode—the applicable performance standard is ANSI/TIA-568.3-D. Similarly, this standard defines optical transmission performance and component requirements. Fiber cables are also subject to NEC Article 770 fire-rating requirements and carry OFNP (optical fiber nonconductive plenum) or OFNR (optical fiber nonconductive riser) designations, paralleling the CMP/CMR structure for copper.

Mixing up these two standards—applying 568.2-D language to fiber or 568.3-D to copper—is a common specification error. Each standard has a clearly defined and non-overlapping scope.

Pathway Planning and Space Classification

Proper fire-rating compliance doesn't start at the cable spec sheet—it starts at pathway and space planning. ANSI/TIA-569 provides guidance on telecommunications pathways and spaces, including conduit sizing, bend radius requirements, and separation from electrical systems. Coordinating your pathway design with accurate space classification is the foundation for making correct cable-rating decisions upstream.

When conduit is used throughout an air-handling space, your AHJ may permit lower-rated cable within the conduit—but this is a jurisdiction-specific determination, not a universal rule. Never assume conduit grants an automatic exemption from plenum-rating requirements without explicit AHJ confirmation.

Practical Guidance for Specifiers and Contractors

• Verify space classification with mechanical drawings. Don't rely solely on visual inspection of ceiling cavities. Confirm with the mechanical engineer whether a space is used for environmental air return.
• Use the NEC substitution hierarchy intentionally. Specifying CMP throughout a building simplifies inventory management and eliminates the risk of a CMR cable being inadvertently pulled into a plenum space.
• Coordinate with the AHJ early. Local amendments to the NEC can affect fire-rating requirements. Engage the authority having jurisdiction during the design phase, not during inspection.
• Don't conflate jacket rating with performance category. A Cat 6A CMP cable and a Cat 6A CMR cable may have identical electrical performance under ANSI/TIA-568.2-D but are not interchangeable from a code compliance standpoint.
• Apply the same discipline to fiber. OFNP and OFNR ratings under NEC Article 770 follow the same substitution logic as copper. A fiber run from an MDF to an IDF in a riser shaft requires OFNR at minimum; if that pathway passes through a plenum, OFNP is required.
• Document everything. Per ANSI/TIA-606 administration and labeling guidelines, maintaining accurate records of installed cable types, pathways, and space classifications supports both ongoing maintenance and future code inspections.

The Bottom Line

Plenum and riser ratings are not marketing tiers or optional upgrades—they are NEC-mandated life-safety requirements tied directly to the spaces your cable occupies. Understanding the distinction, coordinating with your AHJ, and aligning your specifications with the correct performance standards (ANSI/TIA-568.2-D for copper, ANSI/TIA-568.3-D for fiber) keeps your projects compliant, your clients protected, and your reputation intact.
