Rear-Door Heat Exchangers vs. Immersion Cooling: Choosing the Right Liquid Cooling Path for High-Density Data Centers

If you've been tracking the thermal demands of modern AI and GPU-accelerated workloads, one thing is clear: traditional computer room air conditioning alone can no longer keep pace. Rack densities that once averaged 5–10 kW are routinely pushing 60 kW or more in today's edge AI environments, and the gap between what air can carry away and what silicon demands continues to widen. The question most operators are now asking isn't whether to adopt liquid cooling — it's which form of liquid cooling makes the most sense for their environment.

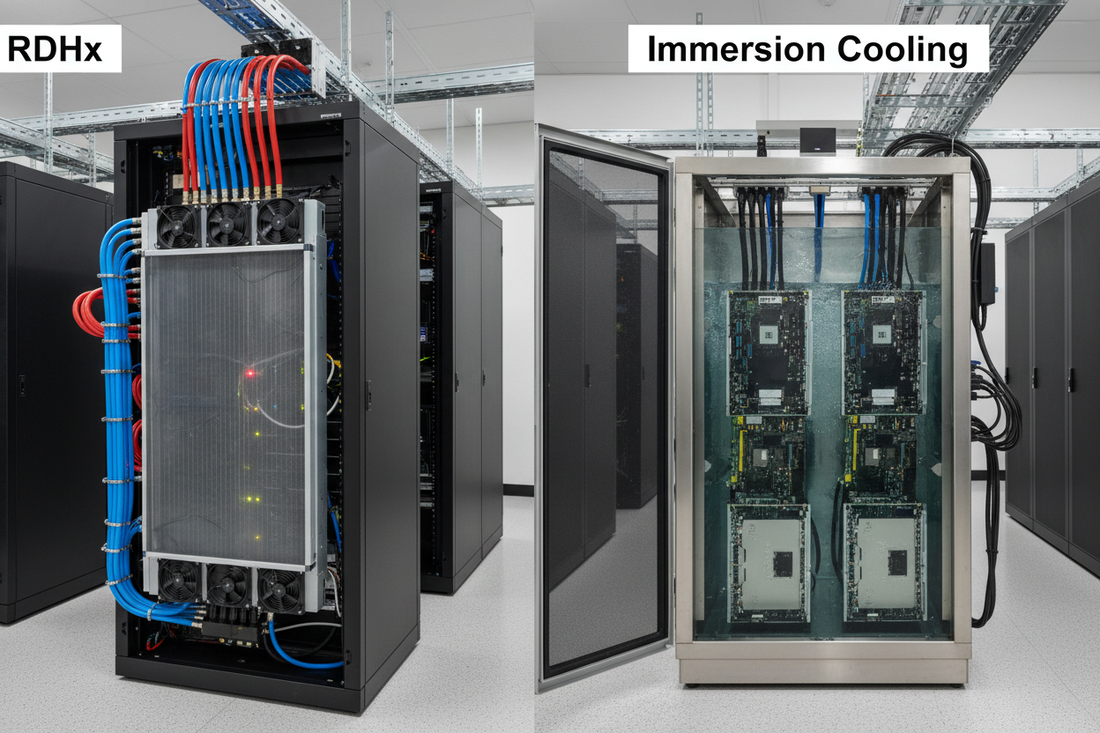

Two technologies dominate the conversation: rear-door heat exchangers (RDHx) and immersion cooling. Both use liquid as the primary heat-transfer medium, but they differ dramatically in integration complexity, capital investment, operational workflow, and long-term scalability. This article examines each technology on its merits so you can make an informed decision for your facility.

Rear-Door Heat Exchangers: Liquid Cooling Without the Operational Overhaul

A rear-door heat exchanger replaces the standard rack rear door with a panel containing a coiled heat-exchanger core through which chilled water or a glycol-water solution circulates. Hot exhaust air from the rack passes through the core, transfers its heat to the liquid, and exits at or near room temperature. In passive configurations, no fans are added to the door itself — the IT equipment's own fans do all the work. Active RDHx designs add EC fans to the door to extend thermal capacity and improve airflow control.

In our representative 500 kW-IT edge AI data center, RDHx units are sized to handle approximately 80 kW per rack using a propylene-glycol/water circuit served by a central coolant distribution unit (CDU) rated around 350 kW. The CDU interfaces with external dry coolers equipped with adiabatic pre-cooling, allowing the system to maintain performance even when ambient temperatures approach 45°C — a critical capability for edge deployments in warm climates.

Advantages of RDHx

• Rack-level compatibility: RDHx mounts to standard 42U cabinets with no modifications to IT hardware. Servers remain air-cooled internally; only the exhaust heat transfer changes.
• Incremental deployment: You can retrofit one rack at a time, protecting capital expenditure while scaling thermal capacity alongside IT load growth.
• Familiar maintenance workflow: Technicians continue to service servers in the same way — slide out, swap, slide back. No fluid handling at the component level is required.
• Standards alignment: RDHx integrates naturally with hot/cold aisle containment strategies endorsed by ASHRAE TC 9.9, which recommends IT equipment inlet temperatures in the 18–27°C range. Keeping exhaust heat out of the cold aisle supports precise supply air control, and precision DX units can be tuned to maintain approximately 22°C ±2°C with around 45% relative humidity.
• Infrastructure compatibility: Electrical infrastructure — including 480V three-phase feeds, intelligent rack PDUs with per-outlet metering, and dual A+B power paths — remains unchanged. ANSI/TIA-942 redundancy ratings and Uptime Institute Tier classifications are unaffected by the cooling retrofit.

Limitations of RDHx

• Capacity ceiling: Passive RDHx has physical limits tied to airflow velocity and the surface area of the door core. As rack densities push well beyond 80 kW, supplemental cooling strategies become necessary.
• Residual air dependency: The system still relies on air movement through the rack, meaning hot spots within dense chassis can persist if airflow is poorly managed.
• Leak risk at the rack: Pressurized coolant connections at every rack introduce potential leak points. Leak detection, proper drip-free quick-connect fittings, and NFPA 75 considerations for IT equipment protection should all be part of the design.

Immersion Cooling: Maximum Density, Minimum Airflow

Single-phase immersion cooling submerges IT hardware — boards, CPUs, GPUs, memory — directly in a dielectric fluid bath contained in a sealed tank. Heat transfers from components directly into the fluid, which is then pumped through an external heat exchanger. Two-phase immersion uses a fluid with a low boiling point; vapor rises, condenses on a cooled coil above the bath, and falls back as liquid, requiring no pump for the primary loop.

The thermal efficiency gains are significant. Eliminating the air-to-liquid heat transfer step that RDHx still relies upon allows fluid cooling to reach component surfaces directly, enabling rack-equivalent densities that can far exceed what any air or RDHx system can manage. PUE values achievable with immersion cooling can approach 1.03–1.10 under favorable conditions — well below the ~1.25 PUE target achievable with a well-designed hybrid liquid-plus-DX approach using RDHx.

Advantages of Immersion Cooling

• Extreme density support: Immersion is the technology of choice when rack-equivalent power exceeds what liquid-cooled doors can manage, or when future density roadmaps are uncertain and maximum headroom is required.
• Noise and fan elimination: Servers submerged in fluid require no cooling fans, which reduces acoustic output and eliminates a common failure mode.
• Higher fluid supply temperatures: Immersion systems can often accept higher coolant supply temperatures than RDHx, improving compatibility with free-cooling and waste heat recovery schemes.
• Corrosion protection: Dielectric fluid creates a chemically stable environment that can extend component longevity.

Limitations of Immersion Cooling

• Hardware compatibility: Not all server and GPU hardware is rated for immersion service. Some warranties are voided. Operators must validate compatibility with every hardware platform before deployment.
• Operational workflow disruption: Removing a server from an immersion tank involves draining, fluid recapture, and component cleaning — a fundamentally different and more time-intensive process than traditional rack service.
• Capital and facility cost: Tanks, fluid inventory, secondary heat exchangers, and structural floor-loading requirements represent a significantly higher upfront investment than RDHx retrofits.
• Fire protection and electrical safety complexity: Dielectric fluids vary in flash point and fire classification. NFPA 75 guidance on IT equipment protection and NFPA 2001 clean-agent system design (e.g., Novec 1230 / FK-5-1-12) must be revisited when transitioning to immersion environments. NFPA 70E arc-flash safety procedures also apply to any electrical work performed near fluid-filled tanks connected to facility power.
• Standards evolution: Industry standards bodies, including ASHRAE TC 9.9 and ANSI/TIA-942, continue to develop specific guidance for immersion environments. Operators should monitor published revisions actively.

Side-by-Side Comparison

Making the Decision

For operators managing existing facilities or deploying edge AI data centers with rack densities in the 60–80 kW range, RDHx offers a proven, standards-aligned path to liquid cooling that preserves existing infrastructure investments — including ANSI/TIA-607 bonding and grounding systems, NEC/NFPA 70 electrical installations, and VESDA aspirating smoke detection already designed around conventional rack environments.

Immersion cooling becomes compelling when density requirements exceed what RDHx can address, when new purpose-built facilities allow the necessary structural and operational redesign, or when long-term PUE and energy cost optimization are the overriding priorities. In those cases, the upfront investment in operational retraining, hardware qualification, and fire protection redesign can be justified by the efficiency and density gains delivered over the life of the facility.

In practice, many operators are landing on a hybrid strategy: RDHx for general compute and networking density today, with immersion-ready infrastructure provisioned for the highest-density GPU clusters where the economics and hardware compatibility align. Whatever path you choose, the design must be grounded in verified thermal analysis, current ASHRAE TC 9.9 guidelines, and a frank assessment of your team's operational readiness.
