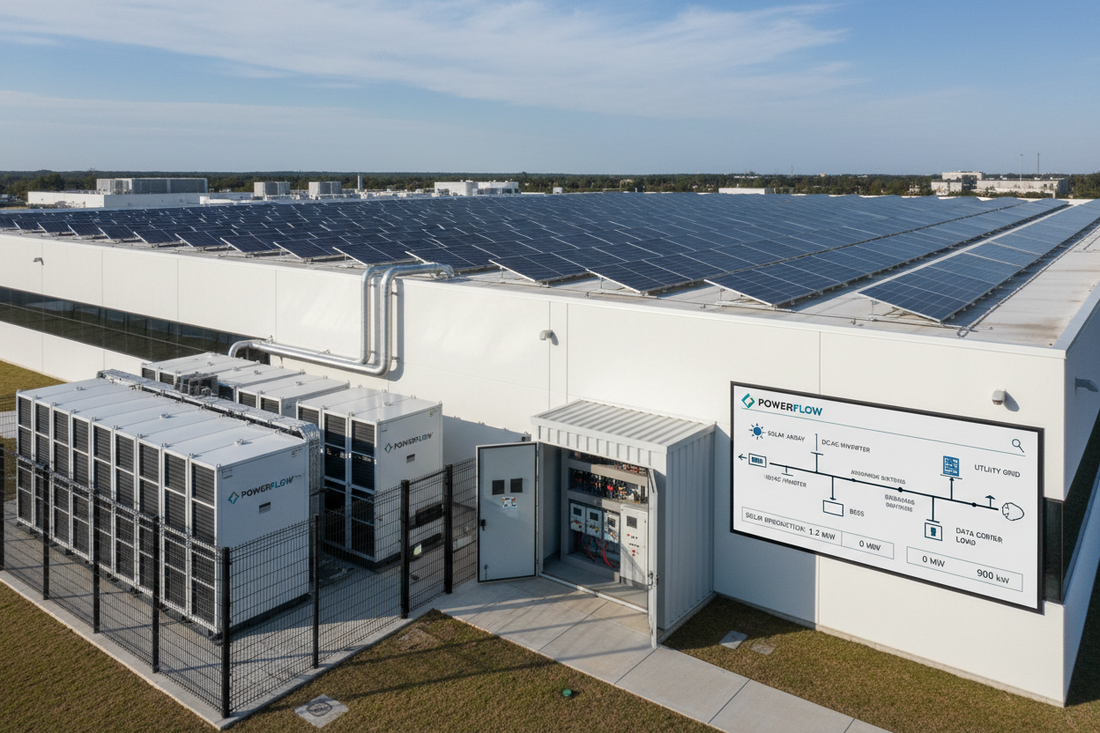

Solar + BESS + Data Center: Designing Hybrid Power

Why Hybrid Power Is No Longer Optional

Grid reliability pressures, sustainability mandates, and the explosive power density demands of AI workloads are converging fast. For edge and colocation operators alike, a Solar + Battery Energy Storage System (BESS) + Data Center architecture is moving from niche experiment to mainstream infrastructure strategy. Done well, it reduces utility dependence, flattens demand charges, and supports carbon commitments. Done poorly, it introduces fault modes that can take down a facility that a simple generator-backed UPS never would have.

This article walks through the engineering principles that make hybrid power work safely and reliably—grounded in the standards that govern every layer of the stack. Where I reference design values, I am drawing on a representative 500 kW-IT containerized edge AI data center as a working model.

Understanding the Power Architecture

The Three Sources and How They Relate

In a Solar + BESS + Data Center system, you are managing three distinct power sources—utility grid, photovoltaic array, and BESS—that must be coordinated through a central power conversion and switching fabric. The design objective is seamless, conditioned power delivery to the IT load under all combinations of source availability and transition events.

For a 500 kW-IT edge facility, the distribution backbone is typically 480V three-phase, with the UPS system sized to cover the full critical load plus headroom. A representative configuration uses an online double-conversion UPS in an N+1 arrangement—for example, two 300 kVA Li-ion units—ensuring no single UPS failure interrupts the load. Li-ion chemistry offers a materially smaller footprint than VRLA and supports the charge/discharge cycling demanded by solar integration, though it requires careful thermal management and protection coordination.

The Automatic Transfer Switch (ATS) is the traffic controller. It must integrate utility, solar inverter output, and BESS discharge in a priority hierarchy defined during commissioning. ANSI/TIA-942 addresses power distribution redundancy and infrastructure ratings; for a concurrently maintainable facility, Uptime Institute Tier III is the relevant benchmark, requiring that every component in the power path can be taken offline for maintenance without impacting the IT load.

Surge and Power Quality Protection

Solar inverters and BESS bidirectional converters introduce switching transients that a purely utility-fed facility never sees. Type 1 and Type 2 Surge Protective Devices (SPDs), installed per NEC/NFPA 70, are mandatory at the service entrance and at downstream distribution panels. The double-conversion UPS itself provides significant isolation, but SPDs upstream protect the UPS input stages and the BESS inverters from lightning-induced surges—a real concern when your solar array spans a large roof or ground-mount field.

Bonding, Grounding, and the TN-S System

With multiple power sources, grounding becomes genuinely complex. ANSI/TIA-607 defines bonding and grounding requirements for telecommunications and data center infrastructure, including the TN-S system approach that keeps neutral and protective earth conductors separate. In a hybrid power plant, each source inverter must be grounded in a way that prevents circulating ground currents, and the Telecommunications Bonding Backbone must remain continuous regardless of which source is active. Skipping this design discipline creates ground loops that corrupt sensitive measurement equipment and can present arc-flash hazards.

Arc-flash is not theoretical in these systems. NFPA 70E governs electrical safety and arc-flash hazard analysis; with BESS adding a persistent DC source that cannot simply be switched off, the incident energy calculations and required PPE change substantially. Any facility integrating BESS should commission an arc-flash study that explicitly accounts for the battery contribution to fault current.

Cooling the High-Density Load

PUE as a Design Target

Power Usage Effectiveness (PUE = total facility power divided by IT power) is the lens through which cooling efficiency is evaluated. A well-designed hybrid-powered edge AI data center should target a PUE of approximately 1.25, meaning roughly 25% overhead for cooling, lighting, and power conversion losses. Every fraction of PUE improvement directly extends the value of your solar and BESS investment by reducing total facility draw.

Hybrid Liquid and DX Cooling

GPU-dense AI racks routinely exceed 60 kW per rack, which air cooling alone cannot economically address at scale. A hybrid approach combines rear-door heat exchangers handling on the order of 80 kW per rack through passive liquid circuits, a Cooling Distribution Unit circulating a propylene-glycol/water mixture, and precision direct-expansion (DX) units maintaining IT inlet conditions in the range recommended by ASHRAE TC 9.9—approximately 18–27°C with controlled humidity around 45% RH.

External dry coolers with adiabatic pre-cooling extend free-cooling hours dramatically. Rated for ambient temperatures up to approximately 45°C, adiabatic assist reduces compressor runtime during peak summer conditions—directly benefiting the solar self-consumption calculation, since cooling load peaks tend to coincide with peak generation hours.

Rack and Facility Infrastructure

Standard 42U racks with hot/cold aisle containment remain the baseline. Intelligent rack PDUs with per-outlet metering and dual A+B feeds (60A three-phase per PDU in a high-density deployment) are not optional luxuries—they are the visibility layer that lets operators balance phases, identify rogue loads, and document actual IT power draw for accurate PUE reporting.

Fire Protection in a Hybrid Power Environment

BESS introduces a fire risk profile that is categorically different from a conventional data center. Li-ion thermal runaway is fast, produces toxic gases, and can re-ignite after apparent suppression. NFPA 75 covers the protection of information technology equipment, and NFPA 2001 governs clean-agent fire extinguishing systems—Novec 1230 (FK-5-1-12) is the common choice where occupied spaces are a concern. VESDA aspirating smoke detection provides the earliest possible warning, critical when reaction time determines whether suppression succeeds.

The BESS enclosure itself may warrant a separate suppression zone and exhaust strategy distinct from the IT hall. Coordinate with the AHJ early; requirements vary by jurisdiction and BESS chemistry.

Putting It Together: Design Discipline Is the Differentiator

Solar + BESS + Data Center is not a plug-and-play stack. It is a power plant attached to a precision computing facility, and every interconnection point is an opportunity for a design gap to become an operational failure. The standards referenced here—ANSI/TIA-942, ANSI/TIA-607, NEC/NFPA 70, NFPA 70E, NFPA 75, NFPA 2001, ASHRAE TC 9.9, and the Uptime Institute Tier framework—exist precisely to give the design team a common, auditable baseline.

At Heather Technologies, we work with our customers to source the infrastructure components—intelligent PDUs, UPS systems, cooling distribution equipment, and structured cabling—that make these designs real. The engineering discipline, the commissioning rigor, and the standards compliance are what separate a hybrid power data center that delivers on its promise from one that creates a new category of risk. Get the design right first; then the technology performs.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
