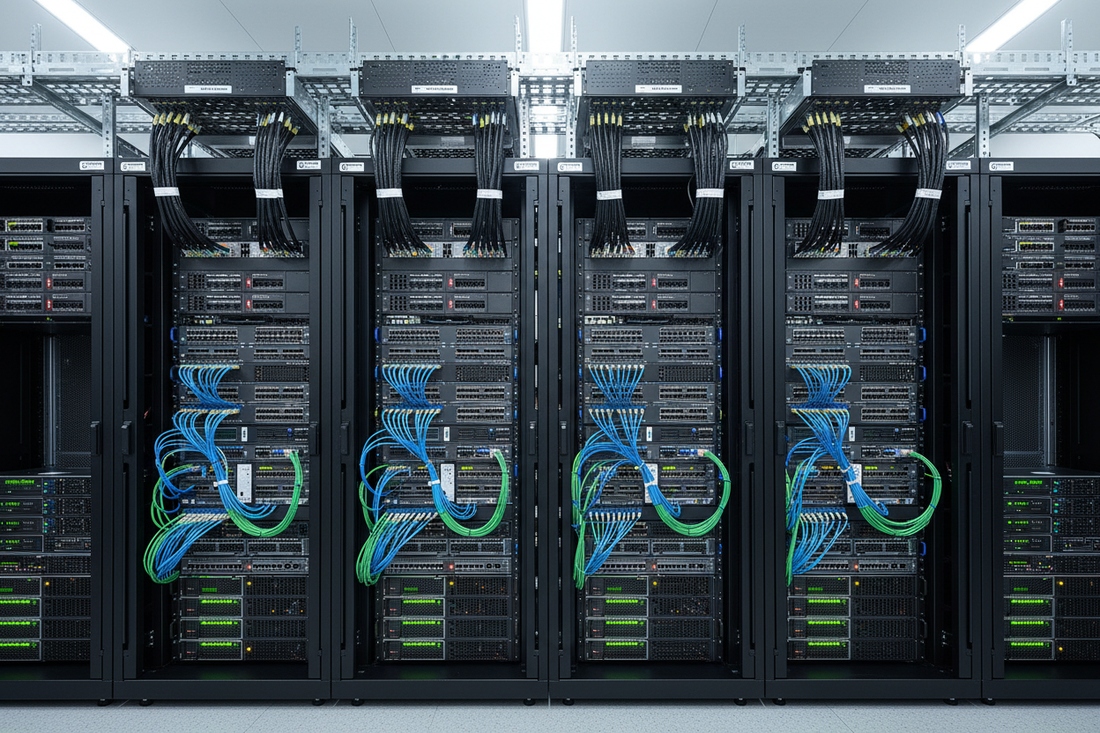

Spine-and-Leaf Cabling: Trunk and Patch Field Planning

Why Spine-and-Leaf Changes the Cabling Conversation

Traditional three-tier (core/distribution/access) networks tolerated oversubscription and long, hierarchical cable runs. Spine-and-leaf flattens that hierarchy into two switching layers—every leaf switch connects to every spine switch—producing predictable, low-latency east-west traffic paths. That elegance at Layer 2/3 creates a very specific physical-layer challenge: the number of inter-switch links grows rapidly, dense trunk bundles must be planned before racks are populated, and the patch field at each leaf must accommodate both server-facing downlinks and spine-facing uplinks without becoming a management nightmare.

Getting the cabling right from the start is not merely tidy housekeeping. It directly affects the ability to commission, reconfigure, and troubleshoot at speed. This article walks through the key decisions in trunk assembly selection, patch-field layout, and administration for a spine-and-leaf environment.

Topology Math: Sizing the Trunk Plant

Before pulling a single cable, calculate total inter-switch fiber count. In a non-blocking or minimally oversubscribed design, each leaf switch presents one uplink port per spine switch. A deployment with 40 leaf switches and 6 spine switches therefore requires 240 discrete bidirectional links. At 400G, those are almost universally parallel-optic (QSFP-DD or OSFP) transceivers using MPO/MTP-terminated multi-fiber trunk cables, collapsing many wavelengths into a single connector interface.

Optical fiber media selection should follow ANSI/TIA-568.3-D, which governs optical-fiber cabling and components. For spine-to-leaf links within a single data-center hall, laser-optimized OM4 or OM5 50/125 µm multimode fiber is a common choice—the EMB (effective modal bandwidth) requirements for these grades are defined through the IEC 60793-2-10 and TIA-492 series, which 568.3-D references normatively. OM5 adds support for short-wavelength division multiplexing (SWDM) if future wavelength expansion is anticipated. Where links span buildings or interconnect campuses, OS2 singlemode under ITU-T G.652 becomes appropriate, and connector polish selection (UPC vs. APC) must be consistent end-to-end—mixing them introduces insertion-loss penalties and connector damage risk.

Trunk Assembly Strategy

Pre-Terminated MPO/MTP Trunk Bundles

Pre-terminated MPO/MTP trunk assemblies are the practical backbone of a spine-and-leaf fiber plant. Factory-terminated and 100% tested, they eliminate field splicing errors, reduce installation time, and provide guaranteed insertion-loss values traceable to test data. Key planning points:

  • Polarity: ANSI/TIA-568.3-D defines Methods A, B, and C for MPO polarity. Choose one method across the entire deployment and document it in the administration system—mixing methods silently reverses Tx/Rx and is a common commissioning failure.
  • Fiber count per trunk: 12-fiber and 24-fiber MPO are standard. A 24-fiber trunk supporting two 100G-SR4 parallel channels (each needing 8 fibers) leaves 8 fibers spare—plan spare count deliberately rather than accidentally.
  • Bend radius and pathway fill: ANSI/TIA-569 governs pathways and spaces, including fill ratios for cable trays and conduit. Spine-to-leaf trunk bundles in high-density environments can consume significant pathway capacity; model fill before installation, not after.
  • Length margins: Order trunk assemblies with pull slack. Field-cut MPO is possible but introduces quality variability; over-long assemblies managed in cassettes are preferable to under-long assemblies requiring re-runs.

Cassette-Based Patch Panels

At each leaf, the trunk MPO transitions to LC duplex or SC duplex individual ports through a breakout cassette. This creates the patch field where server NIC uplinks and spine uplinks are both presented and cross-connected. Cassette systems allow modular adds-moves-changes without disturbing the trunk plant—a key operational advantage in dynamic environments.

Patch Field Layout and Administration

Physical Organization

In a spine-and-leaf row, a typical rack arrangement places the leaf switch, its associated cassette panels, and a small copper patch panel (for out-of-band management) in the same rack or an adjacent one. A structured layout recommendation:

  • Reserve the top of rack (ToR) for the leaf switch.
  • Place cassette panels immediately below, grouping spine-uplink ports together and server-downlink ports in a separate, clearly bounded zone.
  • Use color-coded patch cords to distinguish spine uplinks, server uplinks, and management paths visually—this is a labeling strategy, not just aesthetics.
  • Leave planned slack coils at both ends of inter-rack patch cords to allow repeated re-termination without shortening the cord below usable length.

Administration and Labeling

ANSI/TIA-606 is the administration standard for telecommunications infrastructure, covering identifier schemes, records, and labeling. In a spine-and-leaf plant, every patch panel port, trunk assembly, cassette, and patch cord should carry a unique identifier that ties back to as-built records. A well-implemented TIA-606 scheme allows a technician to trace any port back to the connected device, the trunk it rides, and the far-end panel port—critical when isolating a link fault at 2 a.m.

Modern infrastructure management (IM) systems can automate this record-keeping with electronic patch panels or RFID-tagged cords, but the underlying identifier structure should still conform to TIA-606 to remain interoperable and auditable.

Copper at the Edge: Out-of-Band and ToR Uplinks

Not everything in a spine-and-leaf environment runs on fiber. Out-of-band (OOB) management networks, console servers, and some legacy or cost-sensitive server connections use copper. ANSI/TIA-568.2-D governs balanced twisted-pair cabling—Category 6A is the minimum recommended for 10GBASE-T server uplinks. Cat 8, supported to 2 GHz under 568.2-D, enables 25GBASE-T and 40GBASE-T at distances up to approximately 30 meters, which is viable for ToR deployments but requires shielded infrastructure (F/UTP or S/FTP) and careful bonding and grounding per ANSI/TIA-607.

PoE budgets matter if any edge devices—IP cameras, access points, or small network appliances—draw power through copper plant. IEEE 802.3bt Type 3 delivers up to 60 W at the PSE port, and Type 4 up to 90 W, but thermal rise in bundled Cat 6A requires derating per the cable manufacturer's guidance and 568.2-D annex provisions.

Thermal and Physical Infrastructure Alignment

Dense trunk bundles generate minimal heat themselves, but the switches they feed do not. ASHRAE TC 9.9 recommends an IT equipment inlet temperature range of approximately 18–27 °C for most Class A1/A2 equipment. High-density spine-and-leaf deployments concentrate significant power per rack; coordinate cabling pathway routing with hot-aisle/cold-aisle containment so that cable trays do not inadvertently bypass containment barriers and short-circuit airflow.

Redundancy tier requirements from ANSI/TIA-942 should also inform trunk plant decisions. A Tier III (concurrently maintainable) facility requires that no single maintenance activity take down a production path; dual trunk routes from leaf to spine over physically diverse pathways is the cabling expression of that requirement.

Planning Checklist Before the First Cable Moves

  • Confirm fiber media grade (OM4/OM5 vs. OS2) aligned with transceiver type and ANSI/TIA-568.3-D.
  • Define and document MPO polarity method (A, B, or C) for the entire site.
  • Model pathway fill per ANSI/TIA-569 before ordering trunk lengths.
  • Establish TIA-606 identifier schema and enter baseline records before installation.
  • Confirm copper infrastructure grade (minimum Cat 6A) per ANSI/TIA-568.2-D for any copper uplinks.
  • Verify bonding and grounding for shielded copper per ANSI/TIA-607.
  • Align rack power density with ASHRAE TC 9.9 inlet temperature targets and containment design.
  • Map physically diverse trunk routes if ANSI/TIA-942 redundancy tiers require concurrent maintainability.

Final Thoughts

Spine-and-leaf architecture rewards upfront rigor in the physical layer. The topology's predictability and scalability depend on a trunk and patch plant that is dense but navigable, documented but flexible, and standards-compliant from connector polish to pathway fill. Planning that work on paper—fiber counts, polarity methods, labeling schemas, and pathway models—before the first trunk ships to site is the single highest-leverage activity in the project. At Heather Technologies, we help design teams work through exactly these decisions with pre-engineered trunk assemblies, cassette solutions, and the application engineering support to make commissioning day straightforward.
