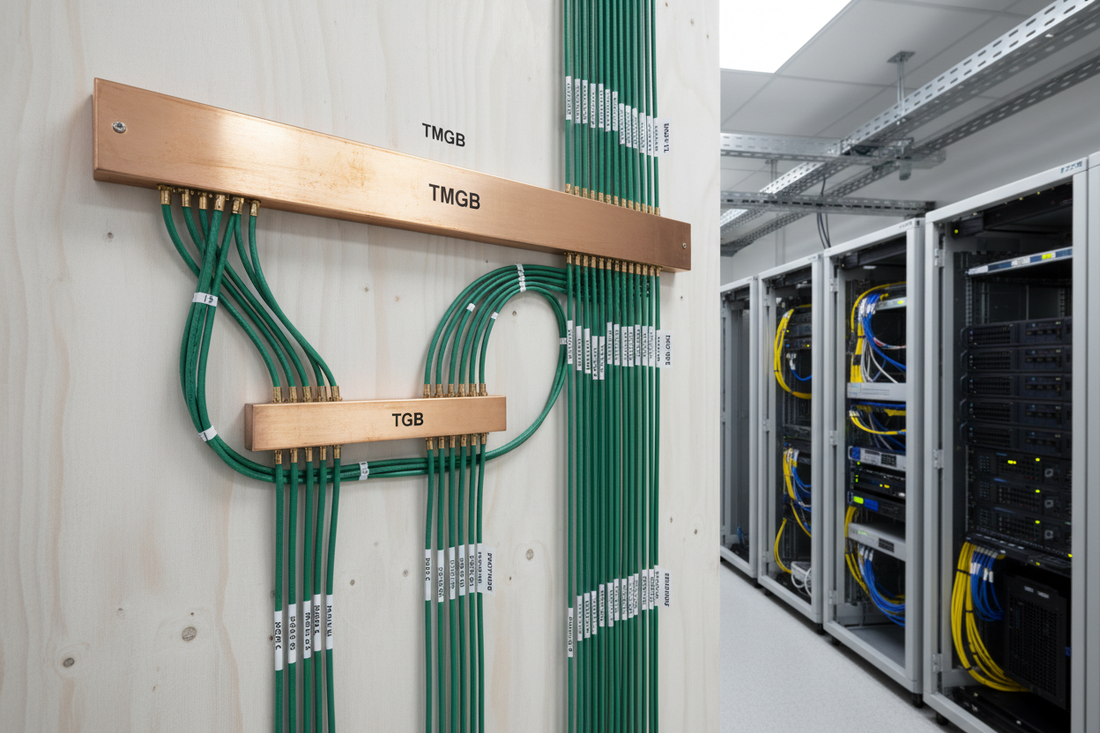

If you have spent any time designing or reviewing a structured cabling system, you have likely seen the acronyms TMGB and TGB on riser drawings. They are easy to overlook in a world fixated on bandwidth and port density, but the bonding and grounding infrastructure they represent is foundational to personnel safety, equipment protection, and regulatory compliance. This article breaks down what these busbars are, where the requirements come from, and what installers and facility managers need to get right.

The Governing Standard: ANSI/TIA-607

The primary standard governing telecommunications bonding and grounding in commercial buildings is ANSI/TIA-607. It defines the architecture, components, conductor sizing guidelines, and labeling requirements for the telecommunications bonding and grounding (TBG) system. ANSI/TIA-607 works in concert with NFPA 70 (the National Electrical Code), which establishes the mandatory electrical safety requirements including grounding electrode systems, bonding methods, and conductor sizing. Together, these two documents define the full compliance picture for any telecommunications grounding installation.

What Is the TMGB?

The Telecommunications Main Grounding Busbar (TMGB) is the single, dedicated point of connection between the building's telecommunications bonding and grounding system and the electrical grounding electrode system. Think of it as the master anchor for the entire TBG infrastructure. ANSI/TIA-607 requires that there be only one TMGB per building, and it must be located as close as practical to the building's main electrical service entrance or the primary telecommunications entrance facility.

The TMGB is connected to the building's grounding electrode system via the Telecommunications Main Bonding Conductor (TMBC) — a dedicated conductor that establishes the critical link back to earth ground. The TMGB itself is typically a copper busbar with pre-drilled and tapped holes to accommodate the various bonding conductors that terminate on it.

Key TMGB Characteristics

• One per building — serves as the single reference ground for all telecommunications systems
• Connected directly to the electrical grounding electrode system via the TMBC
• Located at or near the main telecommunications entrance facility or main electrical service
• Must be labeled in accordance with ANSI/TIA-606 administration standards
• Material is typically copper, sized per ANSI/TIA-607 and NEC requirements

What Is the TGB?

The Telecommunications Grounding Busbar (TGB) serves the same fundamental purpose as the TMGB — providing a bonding reference point for telecommunications equipment — but it operates at the floor or zone level rather than the building level. Each telecommunications room (TR) or equipment room (ER) that is not the location of the TMGB should have its own TGB.

Every TGB connects back to the TMGB via the Telecommunications Bonding Backbone (TBB), a continuous conductor that ties the entire vertical hierarchy of the bonding system together. The TBB must be continuous — meaning no splices — and must be bonded at each TGB location along its path. This creates what ANSI/TIA-607 describes as a TN-S-style approach, with separate bonding pathways that reduce noise coupling between floors and equipment areas.

Key TGB Characteristics

• One per telecommunications room or equipment room (where a TMGB is not present)
• Connected to the TMGB via the continuous Telecommunications Bonding Backbone (TBB)
• Serves as the local bonding point for racks, cabinets, cable trays, equipment frames, and metallic pathways
• Must also be labeled per ANSI/TIA-606
• Bonding jumpers connect individual equipment to the TGB using appropriately sized conductors

The System Architecture at a Glance

It helps to visualize the TMGB/TGB system as a tree. The root is the building's grounding electrode system. The trunk is the TMBC connecting to the TMGB. The main branches are the TBBs running vertically through the building. The leaves are the individual TGBs on each floor, with bonding jumpers reaching out to racks, cable trays, raised-floor systems, and active equipment.

ANSI/TIA-607 is explicit that this hierarchy must be maintained. Star topology is preferred at each level — meaning each TGB connects independently back to the TMGB via its own TBB segment, rather than daisy-chaining TGBs together. This minimizes ground loops and reduces the risk of noise or fault current traveling through telecommunications equipment.

Why It Matters: Safety, EMI, and Equipment Protection

A properly implemented TMGB/TGB system addresses three categories of risk:

• Personnel safety: Fault currents from power crosses or lightning events must have a low-impedance path to ground. Without proper bonding, metallic infrastructure — racks, cable trays, ladder rack — can become energized and present an electrocution hazard.
• Equipment protection: Sensitive electronics are vulnerable to transient voltages caused by lightning, switching events, and utility fluctuations. A well-bonded system provides a common reference potential that limits damaging voltage differentials across equipment ports and frames.
• Signal integrity / EMI: Differences in ground potential between interconnected equipment generate noise currents on signal conductors. Proper bonding equalizes potential across the system, reducing interference that can degrade performance on structured cabling governed by standards such as ANSI/TIA-568.2-D (balanced twisted-pair copper cabling) and ANSI/TIA-568.3-D (optical-fiber cabling and components).

Data Center Considerations

In data center environments, the stakes for a robust grounding system are especially high. ANSI/TIA-942, the standard for data center telecommunications infrastructure, references the bonding and grounding requirements of ANSI/TIA-607 as part of its baseline infrastructure requirements. High-density deployments with large numbers of active ports, PoE-powered devices under IEEE 802.3bt (up to 90 W at the power-sourcing equipment), and sensitive switching equipment all demand that the bonding system be properly engineered and verified.

Raised-floor systems, overhead cable trays, and equipment cabinets must all be individually bonded back to the local TGB. In a properly designed data center, the grounding system is not an afterthought — it is engineered in parallel with the cabling pathways defined under ANSI/TIA-569.

Labeling and Documentation

Every component of the TBG system — the TMGB, each TGB, every TBB conductor, and every bonding jumper — must be labeled and documented. ANSI/TIA-606 provides the administration framework for this, and compliance is not optional for any installation that must pass inspection or support ongoing maintenance. Proper as-built documentation of the grounding system is as important as documenting port assignments or fiber routes.

Installation Best Practices

• Use listed copper busbars with pre-drilled, tapped holes and corrosion-resistant hardware
• Keep TBB conductors as short and direct as possible — bends and length add impedance
• Bond all metallic pathway systems (cable tray, conduit, ladder rack) to the local TGB — not just active equipment
• Verify continuity of the entire TBB at project completion using appropriate test equipment
• Coordinate with the electrical contractor early — the TMBC connection to the grounding electrode system must comply with NEC requirements and is typically within the electrical scope of work
• Apply ANSI/TIA-606 labels immediately during installation, before the system is buried in cabling

Conclusion

The TMGB and TGB are not glamorous components, but they are non-negotiable elements of a compliant, safe, and high-performing telecommunications infrastructure. ANSI/TIA-607 and NFPA 70 together define a clear, hierarchical bonding architecture that protects people, equipment, and signal quality. Whether you are commissioning a single-floor office or a multi-tier data center meeting ANSI/TIA-942 requirements, getting the grounding system right from the start is one of the most important investments you can make in the long-term reliability of the network.
