TIA-569 Telecommunications Pathways & Spaces Primer

Why Pathways and Spaces Matter Before the First Cable Is Pulled

When most people think about structured cabling, they picture patch panels, cable runs, and connectors. What they often overlook is the physical infrastructure that houses and protects all of it: the conduits, cable trays, raceways, telecommunications rooms, and entrance facilities that collectively make a cabling system reliable, scalable, and maintainable over its operational life. That physical infrastructure is governed by ANSI/TIA-569, and understanding it early in a project is one of the highest-value decisions a facilities team or network planner can make.

My name is Todd Taskerud, RCDD, and at Heather Technologies we work with enterprise customers, government agencies, and contractors every day who are planning or upgrading network infrastructure. This article is meant to give you a working knowledge of TIA-569 so you can ask the right questions, scope projects accurately, and avoid the costly rework that comes from treating pathways and spaces as an afterthought.

What ANSI/TIA-569 Covers

ANSI/TIA-569 establishes minimum requirements for telecommunications pathways and spaces within and between buildings. It is the companion standard to the cabling standards — such as ANSI/TIA-568.2-D (balanced twisted-pair copper cabling) and ANSI/TIA-568.3-D (optical fiber cabling and components) — but its focus is entirely on the physical environment those cables inhabit, not on the cables themselves.

Think of it this way: TIA-568.2-D and TIA-568.3-D tell you what cable to install and how it must perform. TIA-569 tells you where to put it, how much room you need, and how to protect it from physical damage, excessive bends, heat, and interference. Without TIA-569 compliance, even the best copper or fiber cabling can fail to meet its rated performance.

Key Pathway Types Defined in TIA-569

TIA-569 addresses a broad range of pathway types. Each serves different environments and cable volumes, and choosing the right one affects installation cost, future scalability, and compliance.

Conduit

Conduit provides the highest level of physical protection and is common in exposed or high-risk areas — mechanical rooms, underground runs, and pathways shared with other building systems. TIA-569 provides guidance on conduit sizing, fill ratios, and bend radius requirements. A key principle is that overfilling conduit increases pulling tension and can damage cable jackets or exceed the minimum bend radius — a particularly critical concern for Category 6A copper governed by ANSI/TIA-568.2-D and for optical fiber governed by ANSI/TIA-568.3-D.

Cable Tray

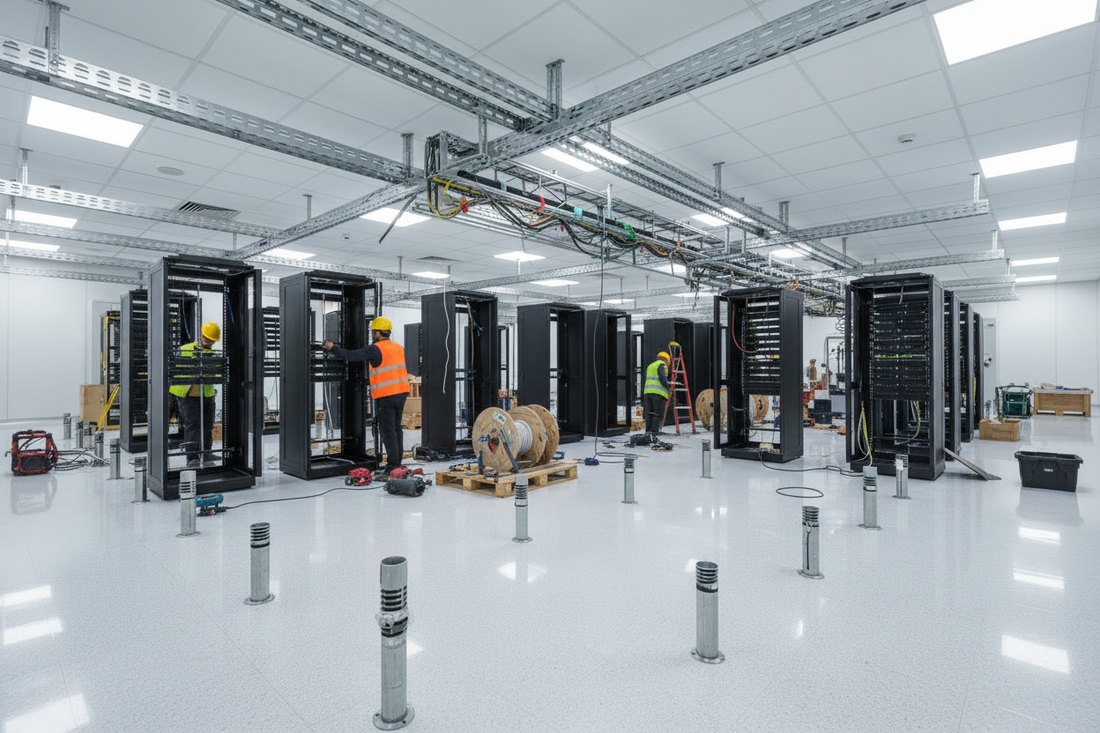

Cable tray is widely used in data centers, above accessible ceilings, and in open-office environments where large cable volumes need to be managed and accessed routinely. TIA-569 addresses tray types, loading, and fill recommendations. It also reinforces the need to separate telecommunications pathways from electrical power pathways to reduce electromagnetic interference — a requirement that works hand in hand with the bonding and grounding requirements in ANSI/TIA-607.

Raceways and Surface Pathways

In renovation projects or spaces where ceiling access is limited, surface-mounted raceways and underfloor systems offer practical alternatives. TIA-569 covers both, including poke-through fittings and cellular floor systems commonly found in commercial office buildings.

Aerial and Outdoor Pathways

For campus environments and inter-building connections, TIA-569 provides guidance on aerial and underground pathway design. These applications frequently involve optical fiber — including OS2 single-mode fiber classified under ANSI/TIA-568.3-D — where burial depth, conduit protection, and transition into building entrance facilities must be carefully planned.

Spaces: Rooms, Rooms, and More Rooms

TIA-569 defines the hierarchy of telecommunications spaces that every structured cabling system depends on. Getting these spaces right at the design stage prevents the chronic problems we see in the field: overcrowded rooms, poor airflow, inadequate grounding access, and no room to grow.

Entrance Facility (EF)

The entrance facility is where external cabling — from service providers, campus runs, or inter-building links — enters the building and transitions to the internal cabling plant. TIA-569 defines minimum size, location, and construction requirements, including fire-stop and lightning protection provisions. Proper coordination with ANSI/TIA-607 bonding and grounding requirements is essential here.

Main Distribution Area (MDA) and Intermediate Distribution Areas

These terms will be familiar to anyone working with ANSI/TIA-942 data center design, but TIA-569 addresses the equivalent concepts in general commercial buildings as main telecommunications rooms (MDF) and intermediate distribution frames (IDF). Sizing guidance accounts for equipment, cable management, and required working clearances — minimums that should be treated as exactly that: minimums.

Telecommunications Room (TR)

The TR is the workhorse of the horizontal cabling distribution system. TIA-569 specifies requirements for door width, ceiling height, power availability, lighting, HVAC, and floor load capacity. One of the most common and costly mistakes in new construction is undersizing TRs to save square footage, only to face an expensive retrofit when the building adds floors, tenants, or higher-density wireless access points drawing PoE power under IEEE 802.3bt.

Work Area

TIA-569 also addresses the work area itself — the space between the telecommunications outlet and the end-user equipment. Outlet placement, access floor systems, and furniture-integrated pathways all fall under its guidance, ensuring that horizontal cabling terminated to outlets compliant with ANSI/TIA-568.2-D or ANSI/TIA-568.3-D is not compromised by a poor physical environment at the point of use.

How TIA-569 Works With the Broader Standards Ecosystem

No TIA standard exists in isolation. TIA-569 is explicitly designed to work alongside the rest of the TIA-568 series. Proper labeling and documentation of every pathway and space you create is governed by ANSI/TIA-606, which defines administration and labeling requirements. Bonding and grounding for all metallic pathways — cable tray, conduit, equipment racks — falls under ANSI/TIA-607. For international projects or customers requiring alignment with global practices, ISO/IEC 11801 provides the international equivalent framework for premises cabling, with comparable pathway and space concepts.

Practical Takeaways for Your Next Project

• Engage TIA-569 at the design phase. Retrofitting pathways and spaces after construction is exponentially more expensive than designing them correctly from the start.
• Do not treat minimums as targets. TIA-569 minimums assume a baseline deployment. Real-world growth in cable counts, equipment, and PoE loads means you should design for more capacity than you need today.
• Coordinate with electrical and mechanical early. Pathway separation from electrical runs and adequate HVAC in telecommunications spaces are TIA-569 requirements that require cross-discipline coordination, not afterthoughts.
• Document everything. Every conduit run, cable tray segment, and room designation should be documented and labeled per ANSI/TIA-606 from day one. Future moves, adds, and changes depend on it.
• Verify bend radius compliance. Whether you are pulling Category 6A copper per ANSI/TIA-568.2-D or single-mode fiber per ANSI/TIA-568.3-D, your pathway design must accommodate the required minimum bend radii. Tight conduit bends and cramped cable tray transitions are among the leading causes of cabling system underperformance.

Conclusion

ANSI/TIA-569 is not a glamorous standard — it does not define transmission speeds or connector pinouts — but it is the foundation that every other aspect of your structured cabling system rests on. A well-designed pathway and spaces infrastructure protects your cabling investment, simplifies ongoing administration, and gives your organization the physical capacity to grow. At Heather Technologies, we help customers and their design-build partners source the infrastructure products and expertise needed to build compliant, future-ready networks from the ground up. If you are planning a new construction, renovation, or infrastructure upgrade, reach out to our team to discuss how a TIA-569-aligned approach can save time, money, and significant frustration down the road.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
