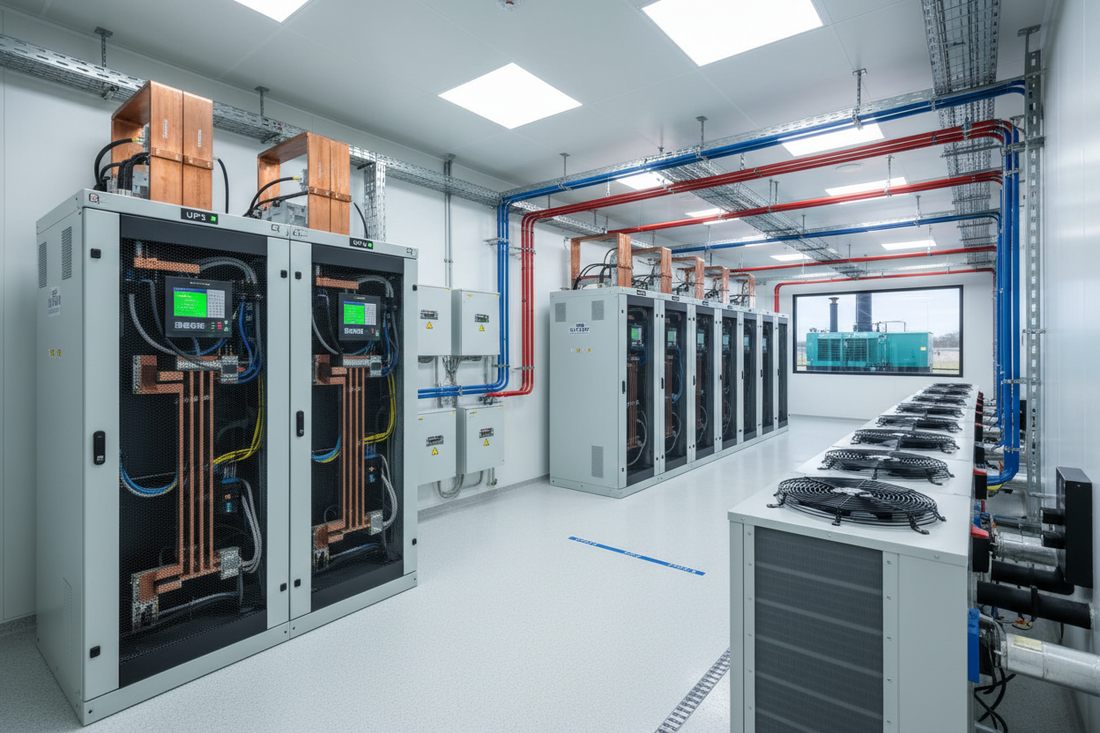

Tier III Redundancy: Power & Cooling for Modern Data Centers

A practical guide to designing concurrently maintainable power and cooling infrastructure for Tier III data centers, from UPS architecture to hybrid liquid cooling, grounded in recognized standards.

By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
5 min read

Tier III Redundancy: Power & Cooling for Modern Data Centers

Why Tier III Redundancy Matters for Today's Data Centers

As AI workloads, edge computing, and high-density GPU clusters push rack power densities to levels unimaginable a decade ago, the infrastructure supporting those workloads has to be held to a higher standard. For most enterprise and colocation operators, that standard is Tier III — a classification defined by the Uptime Institute as concurrently maintainable. In plain terms: every component in the power and cooling path can be taken offline for maintenance or replacement without interrupting IT operations.

At Heather Technologies, we work with design teams deploying everything from traditional raised-floor data centers to containerized edge AI facilities. In either context, understanding what Tier III really demands — and how recognized standards frame those demands — is the foundation of a reliable design.

The Standards Framework You Need to Know

No single document owns data center infrastructure design, but several standards work together to define a defensible, code-compliant Tier III system:

  • Uptime Institute Tier Standard — defines Tier I through IV; Tier III requires N+1 redundant capacity components and multiple independent distribution paths, with only one path active at a time.
  • ANSI/TIA-942 — provides detailed data center infrastructure requirements including power, cooling, and redundancy ratings that align closely with Uptime Institute Tier classifications.
  • NEC / NFPA 70 — governs all electrical installation, grounding, bonding, and surge-protective device (SPD) requirements.
  • NFPA 70E — establishes arc-flash safety requirements, critical at the maintenance intervals that define Tier III value.
  • ASHRAE TC 9.9 — provides thermal guidelines for data centers, including recommended IT inlet temperature ranges and guidance on cooling system design.
  • NFPA 2001 — covers clean-agent fire suppression systems, directly applicable to enclosed high-density IT spaces.
  • IEEE standards — address UPS performance and power quality requirements relevant to mission-critical electrical systems.

Tier III Power Architecture: Dual Paths from Utility to Rack

Service Entrance and Automatic Transfer

Concurrent maintainability begins at the utility connection. A Tier III power design incorporates an Automatic Transfer Switch (ATS) capable of integrating multiple sources — utility feed, on-site generation, solar, and Battery Energy Storage Systems (BESS) — so that any single source can be isolated without a gap in power delivery. For a representative 500 kW IT load, the design basis runs on 480V three-phase service at approximately 625 kVA of provisioned capacity, providing the headroom required for both N+1 redundancy and startup transients.

UPS: Online Double-Conversion with N+1 Modules

The UPS is the heart of power quality and ride-through capability. Tier III designs demand online double-conversion topology, which continuously regenerates a clean sine wave independent of utility disturbances. An N+1 configuration — for example, two 300 kVA UPS modules where either unit alone carries the full load — means one module can be serviced while the other sustains operations. Modern lithium-ion UPS batteries offer a meaningful footprint and lifecycle advantage over VRLA alternatives, and their faster recharge characteristics support more frequent discharge events without capacity degradation.

Surge protective devices (SPDs) should be applied at both the service entrance (Type 1) and distribution panel level (Type 2) per NFPA 70 requirements, protecting sensitive IT equipment from transient overvoltages that a UPS alone does not fully attenuate.

Distribution: Intelligent PDUs with Dual A+B Feeds

Every rack in a Tier III environment receives dual independent power feeds — an "A" path and a "B" path — each sourced from separate UPS modules and distribution panels. Intelligent rack PDUs rated at 60A three-phase with per-outlet metering give operators real-time visibility into load balance, enabling proactive capacity management and simplifying the identification of circuit imbalances before they become incidents. Dual-corded servers and storage draw from both feeds simultaneously; single-corded devices require an in-rack ATS to maintain the dual-path redundancy guarantee.

NFPA 70E arc-flash analysis must be performed and labeled on all distribution equipment. In a concurrently maintainable facility, technicians will routinely work on energized switchgear — arc-flash incident energy labeling and appropriate PPE selection are not optional considerations.

Tier III Cooling Architecture: Hybrid Liquid and Precision Air

Why Air Alone Is No Longer Sufficient

ASHRAE TC 9.9 recommends IT inlet temperatures in the range of 18–27°C for most equipment classes. Maintaining those inlet conditions becomes increasingly difficult as rack densities climb above 20–30 kW. GPU-dense AI racks routinely exceed 60 kW per rack, a point where traditional computer room air handlers simply cannot remove heat fast enough without creating unacceptable hotspots. A hybrid approach — combining liquid cooling at the rack with precision DX air cooling in the room — addresses both high-density and mixed-density environments within the same facility.

Coolant Distribution Units and Rear-Door Heat Exchangers

A Coolant Distribution Unit (CDU) using a propylene-glycol/water mixture serves as the primary heat-exchange bridge between facility chilled water and the rack-level liquid loop. For a 500 kW IT facility, a CDU sized at approximately 350 kW of capacity provides the liquid-side backbone. Rear-door heat exchangers mounted on high-density racks can passively reject significant heat loads per rack; EC (electronically commutated) fan-assisted variants improve performance at part load while maintaining energy efficiency.

Tier III cooling redundancy requires that CDUs, pumps, and distribution manifolds follow the same N+1 logic as the power system — a single pump or valve failure cannot bring down the liquid loop. Isolation valves on each rack connection allow individual rack coolant circuits to be serviced without draining the loop.

Precision Air, Containment, and Dry Coolers

Precision DX units maintain room conditions at approximately 22°C ±2°C and roughly 45% relative humidity, complementing liquid cooling for lower-density rows and providing backup thermal capacity. Hot-aisle/cold-aisle containment — using 42U racks with blanking panels and physical aisle barriers — prevents recirculation and allows the precision air system to operate efficiently even at elevated densities.

External dry coolers with adiabatic pre-cooling extend the hours of economizer operation, reducing mechanical cooling runtime in climates with high ambient design temperatures. Systems rated for operation at elevated ambient conditions allow the facility to meet its PUE target of approximately 1.25 even during peak summer conditions.

Fire Protection: Defense in Depth

NFPA 2001 governs the clean-agent suppression systems appropriate for enclosed IT spaces. FK-5-1-12 (Novec 1230) is a widely deployed agent offering low global-warming potential relative to earlier halon alternatives and is suitable for occupied spaces at design concentrations. Early warning through VESDA (Very Early Smoke Detection Apparatus) aspirating systems provides the detection margin needed to confirm a developing event before suppression discharge, reducing false discharges and protecting both equipment and personnel. NFPA 75 provides additional guidance on the protection of IT equipment.

Putting It Together: The Tier III Design Mindset

Tier III is ultimately a discipline, not just a component list. Every element — UPS module, PDU, CDU pump, precision cooling unit, dry cooler fan array — must be evaluated for its maintainability under live load. The question is never "does it work?" but rather "can I touch it without taking anything down?" Standards from ANSI/TIA-942, the Uptime Institute, ASHRAE TC 9.9, NFPA 70, and related codes provide the framework; thoughtful engineering provides the execution.

The Heather Technologies team works alongside design engineers, consultants, and end-user facilities teams to source and specify the power distribution, cooling infrastructure, and intelligent monitoring products that make concurrent maintainability a reality rather than a marketing claim. If you are evaluating infrastructure for a new build or a density upgrade, we welcome the conversation.


About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
