TiniFiber Microarmored Cable: When Rugged Meets Compact

The Problem With Traditional Armored Fiber

If you've ever tried to retrofit armored fiber into an existing pathway, you know the frustration. Traditional interlocking armored fiber cable — the BX-style product most of us grew up with — can run 6 to 8 mm in outer diameter for a simplex run. It's stiff, heavy, and demands conduit bends that require planning, space, and often a second set of hands. In a greenfield data center with open cable management and generous pathway budgets, that's manageable. In a hospital retrofit, a campus MDF-to-IDF pull through a packed tray, or an industrial environment with tight routing constraints, traditional armored cable can turn a one-day job into a two-day problem.

That's the gap TiniFiber microarmored fiber cable was designed to fill. As a practitioner, I want to walk you through what this product actually is, where it earns its place on the job, and where you should think carefully before specifying it.

What Makes It "Micro" Armored

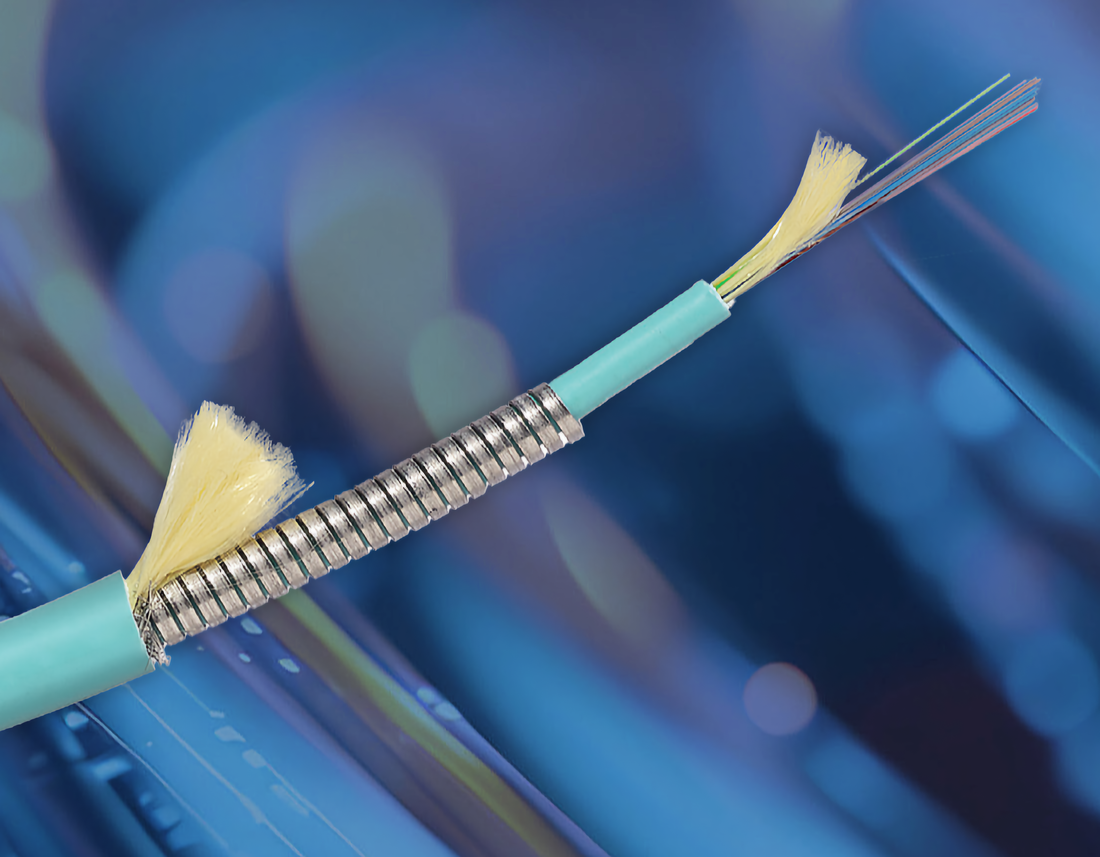

TiniFiber uses a helically wound, interlocking stainless steel armor layer — the same fundamental protection mechanism as traditional armored cable, but engineered at a dramatically smaller scale. A simplex run comes in at roughly 3.0 mm in outer diameter. That's less than half the footprint of conventional armored cable. The stainless steel armor is wound continuously around the fiber, providing 360-degree protection against the threats that matter most in real deployments: rodent chewing, crush loads from ceiling tiles or cable weight, abrasion from rough conduit edges, and incidental cut-through during maintenance activities.

The flexibility is where the product genuinely surprises installers on first use. Unlike BX-style armor that wants to hold a bend radius and fights you on corners, TiniFiber can be hand-routed around obstructions without special tools or excessive force. For anyone who has wrestled traditional armored cable through a populated cable tray, that characteristic alone changes the installation calculus.

Fiber Specifications and Standards Compliance

From a fiber performance standpoint, TiniFiber is available in the configurations your infrastructure designs are likely to call for:

• Single-mode: OS2 for long-haul and high-bandwidth campus or inter-building applications
• Multimode: OM3 and OM4 for shorter data center and intra-building runs where parallel optics and high lane counts are common
• Fiber counts: Simplex, duplex, and multi-fiber configurations to support point-to-point links as well as higher-density trunk requirements
• Connector options: LC, SC, and MPO terminations to align with your active equipment and distribution architecture

Optical fiber cabling performance — attenuation, bandwidth, geometry — is governed by ANSI/TIA-568.3-D, which covers optical fiber cabling components. That's the standard your design and testing documentation should reference, not the copper-cabling sibling standard. Cable identification and administration should follow ANSI/TIA-606-C. For NEC compliance purposes, TiniFiber is available in both plenum (OFNP) and riser (OFNR) ratings per NFPA 70 requirements — specify the correct listing for the air-handling and riser spaces on your project drawings before procurement.

Where TiniFiber Actually Belongs in Your Design

Data Center Intra-Building Runs

In dense data center environments, the innerduct-everything approach adds pathway fill bulk fast. When you need fiber to traverse an exposed overhead route, drop through a cable penetration, or run along the floor perimeter in a colocation environment where foot traffic and equipment movement create real crush risk, microarmored cable lets you route with protection without dedicating conduit. The slim profile also means you're not sacrificing fill capacity in trays that may already be near their limits.

Retrofit and Renovation Projects

This is arguably where TiniFiber delivers the most practical value. When you're pulling new fiber through an existing pathway that is already populated — a tray full of Cat 6A, existing fiber bundles, power conduits running nearby — the ability to snake a 3 mm armored cable through gaps where a traditional armored cable simply won't go is a genuine project enabler. I've seen retrofit projects where the alternative was core drilling or adding new pathway infrastructure at significant cost and disruption.

Campus Fiber Between Buildings

For above-grade campus runs in conduit or cable tray between buildings, microarmored cable provides an intermediate protection tier between unarmored indoor fiber and full outside plant cable. It is important to be precise here: TiniFiber microarmored cable is not a substitute for hardened OSP cable in direct-buried or aerial applications. Those environments demand UV resistance, moisture blocking, and mechanical ratings that standard microarmored indoor/outdoor cable is not engineered to provide. Use it in conduit on campus, not as a replacement for properly specified OSP infrastructure.

Industrial, Healthcare, and High-Risk Environments

Rodent activity is a legitimate infrastructure threat in healthcare facilities with crawl spaces, industrial plants, and any building with known pest pressure. Stainless steel armor deters rodent chewing in a way that no jacket compound can reliably replicate. For exposed runs in industrial environments where mechanical damage is a foreseeable risk, microarmored cable provides a cost-effective protection layer without requiring the contractor to design a full conduit system for every fiber segment.

Cost and Specification Tradeoffs

TiniFiber costs more per meter than standard non-armored fiber patch or distribution cable — that's a straightforward reality to communicate to owners during design. The honest specification argument is total installed cost and lifecycle risk, not unit cable price. When you factor in the cost of innerduct materials, labor to install innerduct, and the risk exposure from an unprotected run in a high-threat zone, microarmored cable often pencils out favorably. For retrofit projects specifically, the avoided cost of pathway modifications can make it the clearly correct choice.

Weight is slightly higher than standard patch cable, though substantially lower than traditional armored cable. For aerial tray runs with long unsupported spans, confirm that the cumulative cable weight in your tray design remains within the tray's load rating — standard practice regardless of cable type.

Practical Installation Notes

A few field considerations worth building into your installation planning:

• Observe the manufacturer's specified minimum bend radius — the flexibility advantage does not mean the cable is exempt from bend radius discipline, particularly at termination points.
• Verify that the listing (OFNP vs. OFNR) matches the space classification on your approved drawings before the cable ships to the job site.
• Document all runs per ANSI/TIA-606-C — the compact form factor makes microarmored cable easier to overlook in as-built records, which creates problems at the next maintenance event.
• Test and certify to ANSI/TIA-568.3-D requirements. The armor does not change your insertion loss budget methodology; document your test results against the appropriate channel or link model for the fiber type installed.

The Bottom Line

TiniFiber microarmored fiber cable occupies a genuinely useful position in the infrastructure product landscape — it's not a niche specialty item, and it's not a universal replacement for conventional fiber approaches. It is a well-engineered solution for the specific and common problem of needing protected fiber routing in constrained, retrofit, or high-risk environments where traditional armored cable is impractical and unarmored cable is insufficient. For contractors and infrastructure teams doing honest design work, that's a tool worth having a command of.

Todd Taskerud, RCDD, is a senior infrastructure consultant and technology advisor with Heather Technologies.
