UPC vs. APC Fiber Polish: What the Difference Means for Your Link

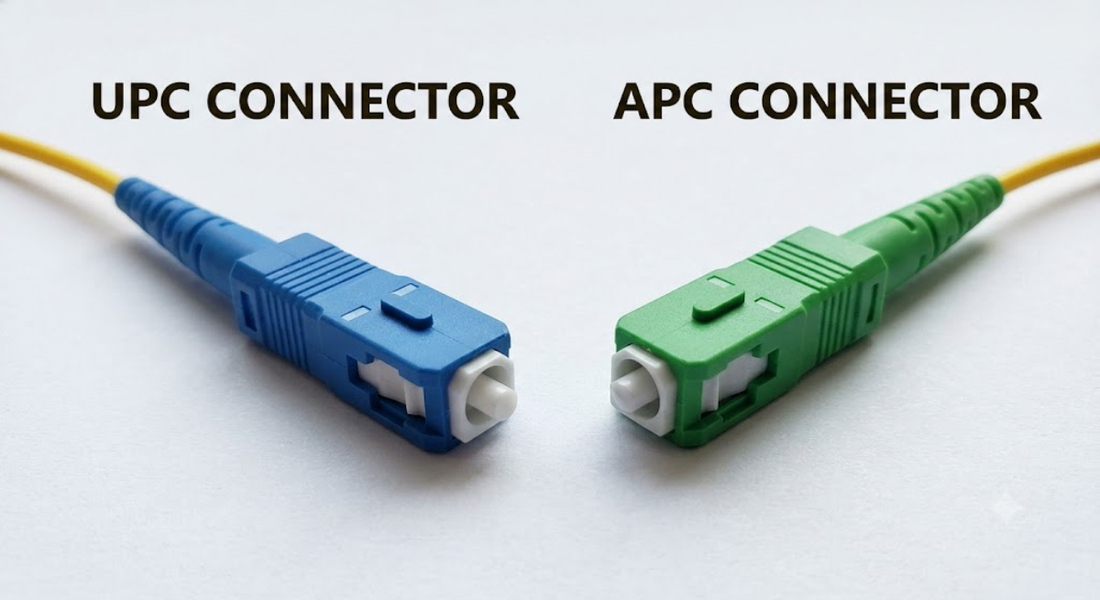

If you've ever stared at a fiber patch panel and wondered why some connectors are blue and others are green, you've already encountered one of the most consequential—and most frequently misunderstood—choices in optical cabling design. The polish applied to the end-face of a fiber connector isn't cosmetic. It directly determines how light couples between fiber ends, how much of that light reflects back toward the source, and ultimately whether your link meets the performance thresholds your application demands.

As an RCDD working with network infrastructure day in and day out, I see polish-type mismatches cause real-world problems: elevated insertion loss, degraded OSNR on sensitive single-mode links, and field troubleshooting headaches that trace back to a connector choice made at procurement. Let's clear this up.

The Physics in Plain Language

Every fiber connector end-face creates an interface where light crosses from glass to air—or ideally, from glass to glass. Any discontinuity at that interface causes two problems: insertion loss (light that doesn't make it through) and return loss, also called back-reflection (light that bounces back toward the transmitter). Both matter. High back-reflection can destabilize laser sources, introduce noise on analog or CWDM/DWDM links, and erode margin on high-speed coherent systems.

The geometry of the polish controls how the fiber end-faces mate, and that geometry is the entire story behind UPC versus APC.

Ultra Physical Contact (UPC)

A UPC connector features an end-face polished to a slight convex dome with essentially zero angle—the fiber tip is rounded but perpendicular to the fiber axis. When two UPC connectors mate, the cores press together at the apex of those domes, minimizing the air gap. The result is acceptably low insertion loss and return loss performance suitable for a wide range of digital applications.

• End-face geometry: Convex dome, nominally 0° angle
• Typical return loss: Better than −50 dB (highly polished versions can approach −55 dB or better)
• Color code per TIA-598-D: Blue housing (single-mode UPC)
• Common connector types: LC, SC, ST, FC—all available in UPC
• Typical applications: Multimode links of any polish grade, single-mode digital Ethernet (IEEE 802.3 applications including 10GBase-LR, 40GBASE-LR4, 100GBASE-LR4), general enterprise backbone

Angled Physical Contact (APC)

An APC connector end-face is polished at an 8° angle relative to the fiber axis. This deliberate tilt means that any reflected light is directed into the cladding at an angle that prevents it from propagating back up the core toward the source. The result is dramatically lower back-reflection than UPC.

• End-face geometry: Convex dome, 8° angle to fiber axis
• Typical return loss: Better than −60 dB, often −65 dB or better
• Color code per TIA-598-D: Green housing
• Common connector types: LC/APC, SC/APC (most prevalent); FC/APC in legacy/test applications
• Typical applications: FTTx/PON outside plant, analog CATV/RF-over-fiber, CWDM/DWDM and coherent optics, any application where back-reflection is a critical impairment

What the Standards Say

ANSI/TIA-568.3-D is the governing document for optical fiber cabling and components in premises installations, covering multimode grades OM1 through OM5 and single-mode OS1/OS2. The standard specifies maximum channel insertion loss budgets and minimum return loss requirements for compliant links. When you're designing to 568.3-D, your connector polish choice must be consistent with the return loss floor the standard sets for the application—and your transceiver's back-reflection sensitivity may impose an even tighter requirement than the channel specification alone.

For single-mode outside-plant and access network cabling, ITU-T G.652 (standard single-mode fiber) and ITU-T G.657 (bend-insensitive single-mode, common in FTTx drops) define the fiber itself. G.657 installations almost universally call for APC terminations at the premises end precisely because PON systems use analog video overlay or narrow-linewidth lasers that cannot tolerate the return loss of even a high-quality UPC mating.

TIA-598-D is the color-coding standard that gives you the visual quick-reference: green equals APC. This isn't decoration—it's a safety mechanism against the single most common field error in fiber work, which is mating an APC connector to a UPC adapter or bulkhead.

The Mismatch Problem—and Why It's Worse Than You Think

An APC connector physically cannot make proper contact in a UPC adapter. The angled end-face mates against a flat or oppositely curved surface, the cores don't align at the optimal point, and the result is elevated insertion loss that may be significant enough to fail a link budget—or just enough to cause intermittent errors under thermal or vibration stress without obviously failing an OTDR trace. Conversely, forcing a UPC into an APC adapter stresses the ferrule, risks end-face damage, and still produces poor optical performance.

The field lesson: adapters, bulkheads, and patch cords must share the same polish type on each side of every mating. Full stop. This is why disciplined labeling under ANSI/TIA-606 and consistent color-coding per TIA-598-D are not administrative bureaucracy—they are optical performance controls.

Choosing the Right Polish for Your Application

Use UPC when:

• You are connecting multimode fiber (OM1–OM5) for any application—APC is not typically used with multimode
• Your single-mode application is a standard digital protocol (Ethernet per IEEE 802.3, Fibre Channel, etc.) with transceivers that tolerate UPC-grade return loss
• You are building a campus or enterprise backbone to ANSI/TIA-568.3-D and the link budget is satisfied with UPC return loss performance
• Interoperability with an installed UPC infrastructure is required

Use APC when:

• You are deploying FTTx, GPON, or XGS-PON to any ITU-T G.657 or G.652 outside-plant fiber
• Your application carries analog RF, CATV overlay, or any signal format sensitive to back-reflection-induced noise
• You are building CWDM, DWDM, or coherent transport infrastructure where even small back-reflection penalties accumulate across cascaded components
• Your transceiver or optical amplifier manufacturer specifies a minimum return loss that only APC can reliably achieve

A Note on OS1 vs. OS2 and Polish

Under ANSI/TIA-568.3-D, OS2 single-mode cable is the standard for new premises and outside-plant installations, offering lower attenuation than OS1 and enabling longer reach for the same link budget. OS2 is physically compatible with both UPC and APC terminations—the cable type doesn't dictate the polish. The application and its back-reflection sensitivity dictate the polish. Confusing cable grade with connector polish is a separate (and also common) specification error worth calling out explicitly.

Final Guidance from the Field

Before you specify a single patch cord or pre-terminated trunk, ask two questions: What is the back-reflection sensitivity of my transmitters, and what does my application's governing standard or transceiver data sheet require? If you're building to ANSI/TIA-568.3-D for a conventional enterprise network, well-polished UPC connectors meeting the standard's return loss requirement will serve you. If you're touching a PON drop, an RF-over-fiber node, or a coherent DWDM span, APC is not optional—it's the only correct answer.

The connectors are color-coded green for a reason. Trust the color code, enforce it in your labeling and administration program, and you'll avoid a category of link failures that are genuinely difficult to diagnose after the fact. At Heather Technologies, our pre-terminated fiber solutions are specified and stocked with polish type called out explicitly—because getting this right at the distribution level means your installers don't have to discover the mistake under a raised floor at 2 a.m.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
