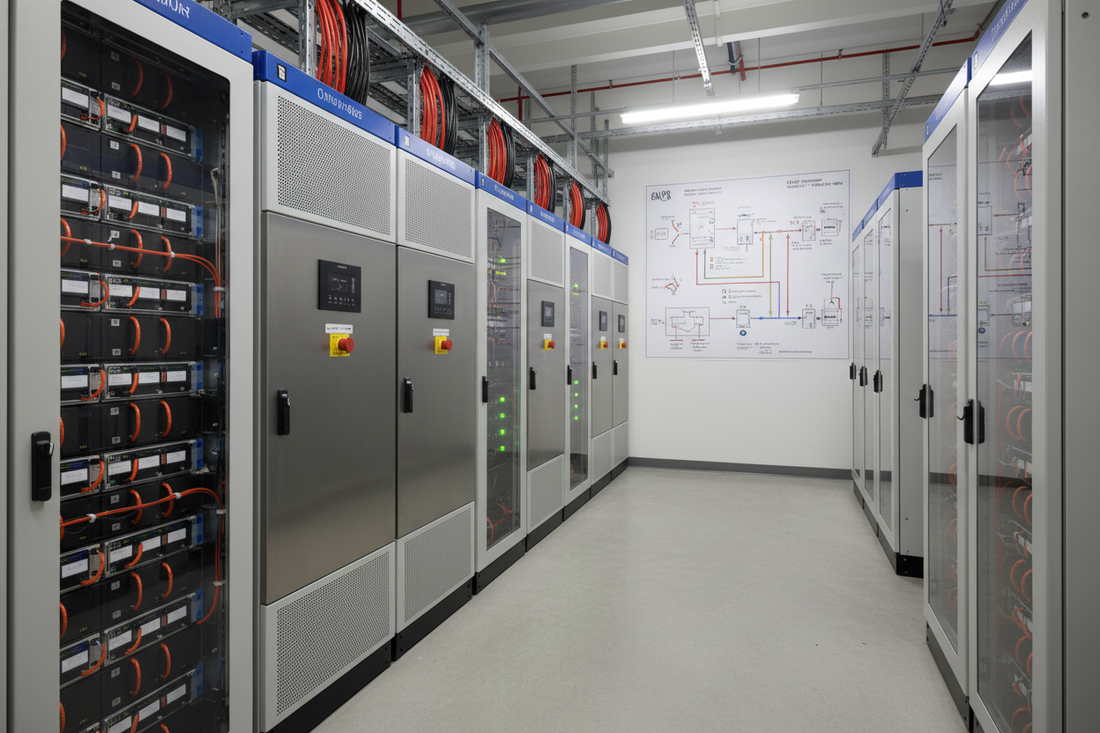

UPS Topologies for Mission-Critical Loads

By Todd Taskerud, RCDD | Heather Technologies

Uninterruptible power supplies are the last line of defense between your critical IT load and the utility grid's many imperfections—sags, swells, harmonics, transients, and outright outages. Yet not every UPS is engineered the same way, and selecting the wrong topology for a mission-critical environment can leave you exposed in exactly the scenario you were trying to prevent. As an RCDD who spends considerable time specifying power infrastructure for data centers of all sizes, I want to walk through the three fundamental UPS topologies, explain their trade-offs, and map them to the redundancy tiers and standards frameworks that govern serious infrastructure design.

Why Topology Matters Before You Size Anything

Most conversations about UPS equipment jump immediately to kVA ratings. Sizing matters, of course, but topology determines how the UPS manages the relationship between utility input, battery, and output. That relationship governs transfer time, output power quality, harmonic contribution, efficiency at partial load, and ultimately whether your critical load ever sees a disturbance at all. Get topology wrong and no amount of battery runtime will save you.

The Three Core Topologies

1. Standby (Offline)

In a standby UPS, the load normally runs directly on conditioned utility power. The inverter sits idle; when a utility fault is detected, a transfer switch disconnects utility and connects the battery-backed inverter. Transfer times are typically in the range of a few milliseconds, which is sufficient for most IT power supplies with adequate hold-up capacitors, but is not zero. Standby UPS units provide limited power conditioning on the utility path and are generally appropriate only for non-critical branch loads—individual workstations, small networking closets, or point-of-sale equipment. They have no business protecting a data hall floor, a telecom room covered by NFPA 76, or any facility designed to an ANSI/TIA-942 Tier rating.

2. Line-Interactive

Line-interactive topology adds an autotransformer or boost/buck converter on the utility path, allowing the UPS to correct modest voltage sags and swells without switching to battery. This extends battery life substantially compared to standby designs because the inverter does not engage for every minor grid fluctuation. Transfer to battery still involves a brief interruption—again in the millisecond range—making line-interactive units suitable for small-to-medium server rooms and edge deployments where the budget does not support online double-conversion but the load is more sensitive than a desktop environment. IEEE power-quality standards provide the framework for characterizing the disturbances these units are and are not designed to handle.

3. Online Double-Conversion

Online double-conversion is the topology of record for mission-critical data centers. In this design, incoming AC power is continuously rectified to DC, which simultaneously charges the battery and feeds the inverter; the inverter then synthesizes a clean, regulated AC output waveform. The load never runs on raw utility power—it runs on the inverter at all times. The transfer time to battery on a utility failure is effectively zero because the inverter never stops running; there is no switching event. Output voltage and frequency are tightly regulated regardless of what the grid is doing upstream.

The trade-off is efficiency. Running rectifier and inverter stages continuously introduces conversion losses, particularly at low load percentages. Modern large-format UPS systems address this with eco-mode or high-efficiency mode options that can bypass the inverter under stable grid conditions, recovering efficiency points—but at the cost of reintroducing a transfer event. For a true Tier III concurrently maintainable environment as defined by the Uptime Institute, or for a facility rated under ANSI/TIA-942, eco-mode requires careful evaluation against your availability objectives before enabling it in production.

Redundancy Architectures Built Around Double-Conversion

Topology selection and redundancy architecture are inseparable. For a representative mission-critical deployment—say, a 500 kW IT load containerized edge AI data center operating at 480V three-phase—the design typically calls for an online double-conversion UPS configured N+1. A practical implementation might use two 300 kVA modules operating in parallel, so that either module can carry the full design load while the other undergoes maintenance or experiences a fault. This aligns with Uptime Institute Tier III requirements for concurrent maintainability and supports the dual A+B power path architecture that intelligent rack PDUs with per-outlet metering depend on to deliver path-level visibility and load balancing.

ANSI/TIA-942 provides additional infrastructure classification guidance that maps redundancy levels to rating tiers, covering power, cooling, cabling, and architectural considerations together. Any facility targeting a formal rating should engage that standard early in design—not as a checklist at the end.

Battery Technology: The Topology's Partner

Double-conversion UPS systems are increasingly specified with lithium-ion battery technology rather than traditional valve-regulated lead-acid. Li-ion offers a smaller footprint, longer cycle life, tolerance of higher ambient temperatures, and faster recharge—all meaningful advantages in a dense edge deployment where ASHRAE TC 9.9 recommended IT inlet temperatures of 18–27°C already push thermal design hard. That said, li-ion introduces different failure modes and requires battery management systems with appropriate fire-detection and suppression integration. NFPA 75 covers protection of IT equipment, and any facility using clean-agent suppression—such as Novec 1230 (FK-5-1-12) systems governed by NFPA 2001—must coordinate UPS battery chemistry with the suppression design team.

Upstream Power Quality and Protection

Even online double-conversion does not eliminate the need for upstream protection. Transient voltage surges can damage rectifier input stages before the UPS can clamp them. NEC/NFPA 70 governs the electrical installation, grounding, and surge-protective device requirements; a coordinated Type 1 plus Type 2 SPD strategy at the service entrance and distribution level is standard practice for mission-critical facilities. Proper grounding and bonding per ANSI/TIA-607 (TN-S topology) ensures that the clean reference ground the inverter output depends on is not compromised by parallel neutral-ground paths elsewhere in the distribution system.

Arc-flash is a related but distinct concern. NFPA 70E governs the electrical safety work practices and PPE requirements for anyone working on or near energized UPS switchgear. A facility that has invested in redundant double-conversion UPS but has not completed an arc-flash hazard analysis has left a significant safety and liability gap open.

Selecting the Right Topology: A Quick Reference

Final Recommendations

If your load is mission-critical—production compute, AI inference, financial transaction processing, healthcare systems—online double-conversion is not a premium option; it is the baseline specification. Layer on top of that an N+1 or 2N redundancy configuration appropriate to your Uptime Institute or ANSI/TIA-942 target rating, a coordinated SPD scheme per NEC/NFPA 70, grounding per ANSI/TIA-607, and a battery chemistry selection that integrates with your suppression system under NFPA 2001 and NFPA 75. Engage your arc-flash analysis early under NFPA 70E—before commissioning, not after.

At Heather Technologies, we help customers navigate these topology and redundancy decisions with the right product portfolio and the engineering perspective to back it up. Whether you are specifying a new data hall or upgrading aging UPS infrastructure, getting topology right is where the conversation has to start.

About the author — Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA, is a BICSI-credentialed communications distribution designer at Heather Technologies, specializing in fiber, copper, and data-center network infrastructure.
