Wi-Fi 7 Cabling: Getting Multi-Gig Wireless Right from the Ceiling Up

Wi-Fi 7 access points need multi-gigabit uplinks and more PoE than the generation they replace. Here are the Category 6A, PoE budget, AP placement, and testing decisions that determine whether Wi-Fi 7 delivers.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
4 min read

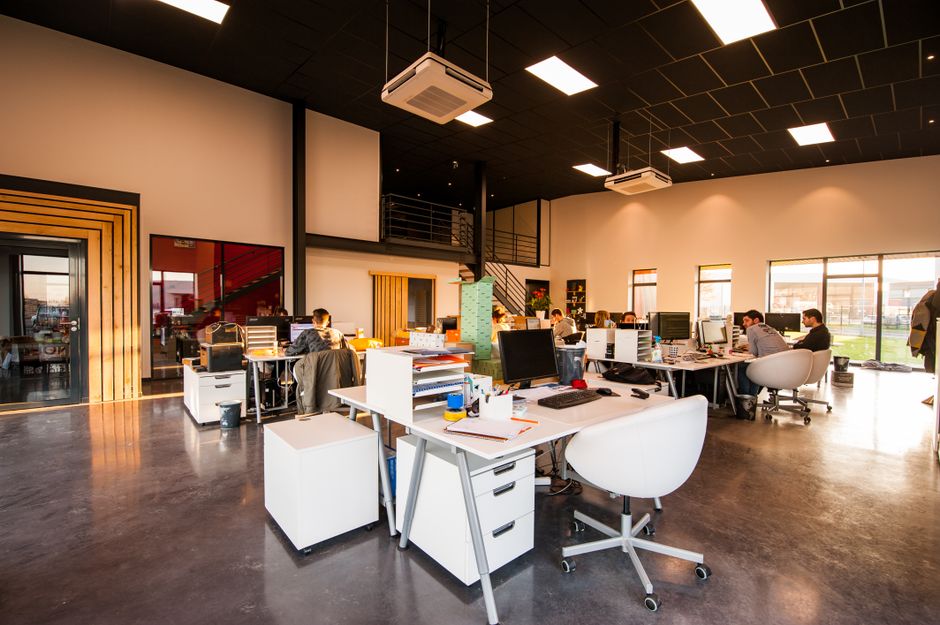

Modern open-plan office with ceiling-mounted infrastructure

Wi-Fi 7 Is a Cabling Project

Wi-Fi 7 (IEEE 802.11be) is usually discussed in radio terms: 320 MHz channels in the 6 GHz band, 4096-QAM modulation, and Multi-Link Operation (MLO) that lets a client use more than one band at the same time. All of that is real, and all of it pushes far more traffic through each access point than earlier generations did. What gets less attention is that every one of those access points hangs off a copper cable—and that cable decides whether the AP can deliver what the datasheet promises.

If you are planning a Wi-Fi 7 refresh or a new building, the decisions that matter most are made in the horizontal cabling and the PoE budget, not in the controller. This article walks through those decisions.

Uplink Speed: Why 1 Gb/s Is No Longer Enough

Enterprise Wi-Fi 7 access points commonly ship with multi-gigabit Ethernet uplinks—2.5GBASE-T, 5GBASE-T, or 10GBASE-T—because the aggregate wireless throughput of a busy AP can exceed a single gigabit. If the AP is cabled with a link that only supports 1000BASE-T, the wired uplink becomes the bottleneck regardless of how good the radios are.

  • 2.5GBASE-T and 5GBASE-T (IEEE 802.3bz) were designed to run over installed Category 5e and Category 6 cabling in many cases, which makes them attractive for retrofits. Performance over older cable still depends on length, bundle size, and alien crosstalk, so test before you assume.
  • 10GBASE-T requires Category 6A to support the full 100-meter channel.

For new installations, Category 6A is the sensible baseline. It supports 10GBASE-T at full channel length, it handles PoE heat better than smaller-gauge cable, and TIA's wireless access point cabling guidance (TSB-162-A) recommends Category 6A for WAP outlets. Cabling is expected to outlive several generations of access points; specifying Cat 6A today avoids pulling cable again for Wi-Fi 8.

One Cable or Two?

Many designers now run two Category 6A cables to each AP location. The second drop provides a path for link aggregation or a redundant uplink, gives you a spare if a termination fails, and future-proofs the location if a later AP generation needs more bandwidth or power than one port can deliver. The incremental cost of a second cable during construction is small compared with the cost of returning to an occupied ceiling later.

PoE Budget: Plan for 802.3bt

Tri-band Wi-Fi 7 access points draw more power than the Wi-Fi 5 units they replace. Depending on the model and features enabled, many enterprise APs require more than the 30 W available from 802.3at (PoE+) to run every radio at full capability. Check the manufacturer's power table for each model you plan to deploy and plan the switch side accordingly:

  • IEEE 802.3bt Type 3 provides up to 60 W at the switch port.
  • IEEE 802.3bt Type 4 provides up to 90 W at the switch port.
  • Size the total switch PoE budget for every AP running at full draw simultaneously, plus cameras, phones, and other powered devices on the same switch.

Higher PoE levels raise conductor temperature, especially in large bundles. That is another reason to favor Cat 6A (typically 23 AWG) and to follow manufacturer and standards guidance on bundle sizes. Our guide to high-power PoE over Cat 6A covers the heat-rise considerations in more detail.

AP Placement and Cable Length

6 GHz signals attenuate more through walls than 2.4 GHz and 5 GHz, so Wi-Fi 7 designs often use more APs at closer spacing than the network they replace. That changes the cabling plan:

  • Expect a higher outlet count per floor. Update the survey before ordering cable—don't simply reuse the Wi-Fi 5 AP map.
  • Keep every link within the 90-meter permanent link / 100-meter channel limits. APs at the far corners of large floor plates are the usual violators; an additional telecommunications room or a consolidation point may be cheaper than a redesign.
  • Use a grid-based layout where practical so future AP moves can reach an existing outlet without a new pull.

Switches and Fiber Uplinks

When every AP on a floor can push multiple gigabits, the access switch uplink becomes the next constraint. A 48-port multi-gig switch feeding Wi-Fi 7 APs generally warrants 25G or faster fiber uplinks to the distribution layer. Confirm that your backbone fiber type and strand count support that—OM4 multimode or OS2 singlemode depending on distance—and that spare strands are available for growth.

Testing and Documentation

Certify every AP link to the category you installed, not just for continuity. A link that passes a basic wiremap test can still fail at 5 or 10 Gb/s because of a poor termination or excessive untwist. Label each outlet and patch-panel port per ANSI/TIA-606-C so that the network team can map a physical location to a switch port without tracing cable. See our guide to Cat 6A certification testing for what to require from your installer.

Wi-Fi 7 Cabling Checklist

  • Category 6A to every AP location; consider two drops per location.
  • Switch ports capable of 2.5/5/10GBASE-T and 802.3bt PoE where the AP model needs it.
  • PoE budget sized for all devices at full draw.
  • Updated predictive or on-site survey for 6 GHz coverage before finalizing outlet counts.
  • Every link within 90 m permanent link / 100 m channel.
  • 25G-or-faster fiber uplinks from access switches with spare strands.
  • Full certification testing and TIA-606-C labeling.

Closing Thoughts

Wi-Fi 7's headline speeds are only reachable when the wired infrastructure keeps up. The access points will be replaced in five to seven years; the cable in the ceiling should last much longer. Heather Technologies can help you source Category 6A cable, connectivity, PoE-ready infrastructure, and test equipment for Wi-Fi 7 projects—contact us to plan yours.

Todd Taskerud, RCDD/NTS/OSP/WD, is a structured cabling and data-center infrastructure specialist at Heather Technologies.
