Firestopping Cable Penetrations: Getting Through Inspection the First Time

Every cable through a rated wall or floor needs a listed firestop system. What the NEC requires, how ASTM E814 / UL 1479 systems work, common inspection failures, and designing for moves, adds, and changes.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
3 min read

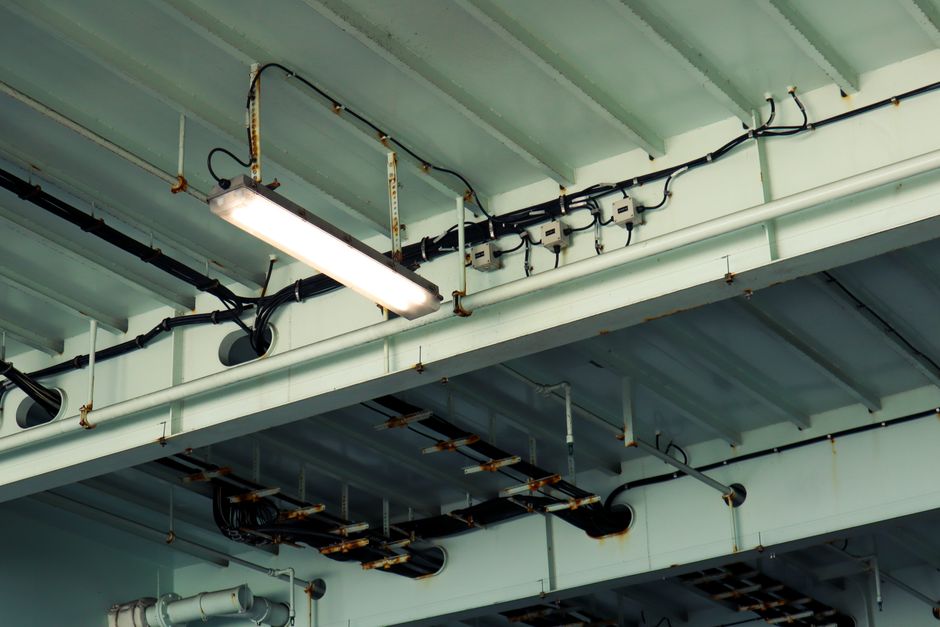

Ceiling with exposed cabling, conduit, and lighting in a commercial building

Every Hole Is a Fire Path

Every time a cable passes through a fire-rated wall or floor, the installer has created an opening in a barrier that the building's fire protection design depends on. Unless that opening is sealed with a tested, listed firestop system, fire and smoke can travel through it. That is why firestopping is one of the most frequently inspected—and most frequently failed—items on low-voltage projects.

This article covers what the codes require, how listed systems work, and the field practices that get penetrations through inspection the first time.

What the Codes Require

The National Electrical Code (NFPA 70) requires that openings around penetrations of fire-resistance-rated walls, partitions, floors, and ceilings be firestopped using approved methods to maintain the fire-resistance rating. For communications cabling, this requirement appears in the NEC's communications articles (Article 800 in the 2023 NEC) and in the general requirement of Section 300.21 for electrical installations. The building code adopted by the jurisdiction, typically the International Building Code, sets out the requirements for the rated assemblies themselves. Your authority having jurisdiction (AHJ) decides what is acceptable on your project.

Cable fire ratings are a separate requirement. Using plenum- or riser-rated cable where required does not substitute for firestopping a penetration, and firestopping does not substitute for the correct cable rating. See plenum cable and the NEC.

Listed Systems: The Heart of Compliance

Through-penetration firestop systems are tested to ASTM E814 or UL 1479. A tested configuration is published as a listed system (for example, in UL's Product iQ directory), which specifies exactly:

  • The type of wall or floor assembly and its rating.
  • The penetrating items—cable types, maximum bundle size, sleeves, conduit, or cable tray.
  • The annular space allowed between the penetrant and the opening.
  • The firestop products, quantities, and installation depth.
  • The resulting F rating (flame passage) and T rating (temperature rise on the unexposed side), and often an L rating for air leakage.

The installation must match the listed system exactly. A different cable type, a bigger bundle, a wider annular space, or a substituted product means the installation is no longer the tested system. When field conditions do not match any listed system, the firestop manufacturer can sometimes issue an engineering judgment, subject to AHJ acceptance.

Common Failures Inspectors Find

  • Unsealed or partially sealed openings, especially above ceilings where nobody looks after the tiles go back in.
  • Wrong product—general-purpose caulk or expanding foam that is not part of a listed system.
  • Cable added after firestopping by punching through cured sealant, destroying the seal.
  • Overfilled sleeves that exceed the fill allowed by the listed system.
  • No documentation—inspectors increasingly expect labels and a submittal for each system used.

Designing for Moves, Adds, and Changes

Telecommunications cabling changes constantly. Traditional sealant-and-mineral-wool firestops must be removed and redone every time a cable is added, which is where many violations originate. Re-enterable firestop devices—pathway devices or sleeves with built-in intumescent material, and firestop pillows or plugs—allow cables to be added or removed while maintaining the listed configuration. They cost more initially but usually save money over the life of a busy telecommunications space.

Coordinate penetration locations and sizes with the pathway design under ANSI/TIA-569, and leave growth capacity in sleeves so that future cables do not require new penetrations. Our guide to pathway fill and growth covers sizing.

Field Checklist

  • Identify every rated wall and floor on the drawings before roughing in. Life-safety plans show ratings.
  • Select a listed system for each penetration type and include the system details in the submittal.
  • Install exactly per the listed system: products, depth, annular space, and fill.
  • Use re-enterable devices in telecommunications rooms and high-change areas.
  • Label each penetration with the system number, installer, and date if your AHJ or owner requires it.
  • Photograph each penetration before ceilings close; the photos protect you at inspection and at turnover.
  • Train every technician: never pierce an existing firestop to add a cable.

Closing Thoughts

Firestopping is life safety, not finish work. Getting it right protects occupants, keeps inspections on schedule, and keeps your company off the punch list. Heather Technologies can help you source firestop products, re-enterable pathway devices, sleeves, and the cable and connectivity that pass through them—contact us for help planning your penetrations.
