High-Fiber-Count Cabling for AI Campuses and Data Center Interconnect

AI campuses link buildings with cables carrying thousands of fibers. Rollable ribbon, duct planning, mass fusion splicing, fiber types, and documentation for campus and DCI links.
By Todd Taskerud, AWS CCP, RCDD/NTS/OSP/WD, LEED GA
3 min read

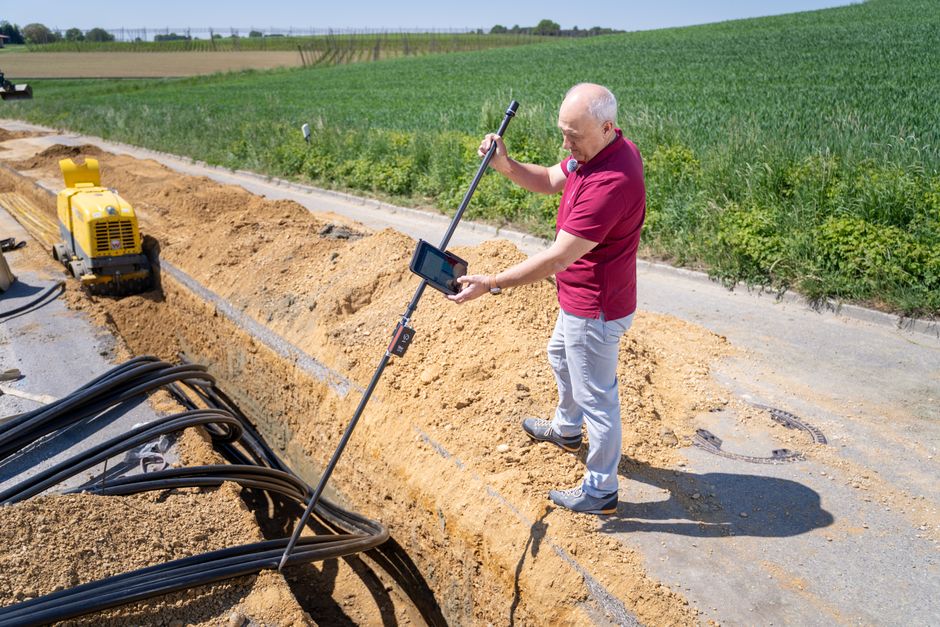

Engineer surveying a trench during underground cable installation

AI Campuses Run on Fiber Between Buildings

Large AI and cloud deployments rarely fit in a single data hall. Training clusters span multiple halls and buildings, and campuses connect to nearby campuses so that capacity can be shared. The links between those buildings—campus backbone and data center interconnect (DCI)—now carry fiber counts that would have seemed absurd a decade ago. Cables with thousands of fibers are routine on hyperscale campuses, and the pathways, splicing methods, and closures have had to evolve to match.

Rollable Ribbon Cable

The enabling technology is rollable ribbon (also called flexible or intermittently bonded ribbon). Traditional flat ribbons bond 12 fibers rigidly side by side, which wastes space inside a round cable. Rollable ribbons bond adjacent fibers only intermittently, so the ribbon can be rolled or folded into a compact bundle while still being mass-fusion spliced as a ribbon. Combined with reduced-diameter fibers—200-micron coatings rather than the traditional 250 microns—manufacturers now offer cables with 1,728, 3,456, and even 6,912 fibers in diameters that fit existing duct sizes.

Pathways and Duct Planning

  • Duct size and fill. High-count cable is still a large, heavy cable. Confirm duct inner diameter, fill ratio, and maximum pulling tension with the manufacturer before committing to a route.
  • Spare ducts. The cost of trenching dwarfs the cost of empty conduit. Install spare ducts, or microduct bundles, during the initial build so future cables can be added without new excavation. Our article on innerduct and microduct covers the options.
  • Route diversity. Campus links that carry production AI traffic deserve physically diverse paths, entering buildings through separate entrance facilities, so a single dig-in cannot isolate a hall.
  • Handholes and vaults. Size them for slack storage and for splice closures large enough for the fiber count. High-count cables need generous slack loops for future re-entry.

Splicing at Scale

A single 3,456-fiber splice point means 3,456 splices. Fusion splicing those one at a time is not practical. Mass fusion splicing joins an entire 12-fiber ribbon in one operation, which reduces splice time dramatically. Requirements for success:

  • Ribbon-capable fusion splicers, ribbon cleavers, and ribbon thermal strippers matched to the fiber coating diameter. See core-alignment vs. ribbon splicers.
  • Splice closures and trays rated for the fiber count and for ribbon splice protectors.
  • Disciplined fiber identification. Ribbon IDs and color codes must be tracked and documented at every closure.
  • Experienced crews. Ribbon handling and preparation are where most errors and delays happen. Our guide to mass fusion splicing goes deeper.

Fiber Type

Campus and DCI links almost always use singlemode fiber. ITU-T G.652.D is the long-standing baseline; bend-insensitive G.657.A1 fiber is fully compatible with G.652.D and tolerates the tighter bends found in compact closures and high-count cable construction. Specify the fiber type explicitly and confirm splicing compatibility when mixing cable from different manufacturers. Our guide on ITU-T G.652 covers the specification.

Testing and Documentation

  • OTDR testing, ideally bidirectional, to characterize every splice and identify gainers and losses accurately. See why bidirectional OTDR testing matters.
  • OLTS loss testing of each end-to-end link against the calculated budget.
  • Complete records: fiber assignment, splice locations, closure contents, and as-built routes. ANSI/TIA-606-C administration practices apply to the backbone just as they do inside the building. On a 6,912-fiber cable, records are the only practical way to find one fiber years later.

Standards Context

Premises and campus fiber cabling follows ANSI/TIA-568.3-D for components and testing and ANSI/TIA-758 for customer-owned outside plant. Data-center campus design is covered in ANSI/TIA-942 and ANSI/BICSI 002. Pathways, entrance facilities, and spaces follow ANSI/TIA-569. Local codes and the NEC govern the transition from outside-rated cable to premises cable at the building entrance.

Closing Thoughts

Inter-building fiber is no longer a few dozen strands between closets. For AI campuses it is critical infrastructure measured in thousands of fibers, and it rewards careful planning of ducts, closures, splicing methods, and documentation. Heather Technologies can help you source high-count and ribbon cable, closures, splicing equipment, and test tools for campus and DCI projects—talk to our team about your next build.

Todd Taskerud, RCDD/NTS/OSP/WD, is a structured cabling and data-center infrastructure specialist at Heather Technologies.
